Hitachi MICRO-EHV+ - Page 115

Chapter 3 Programming
3 – 55

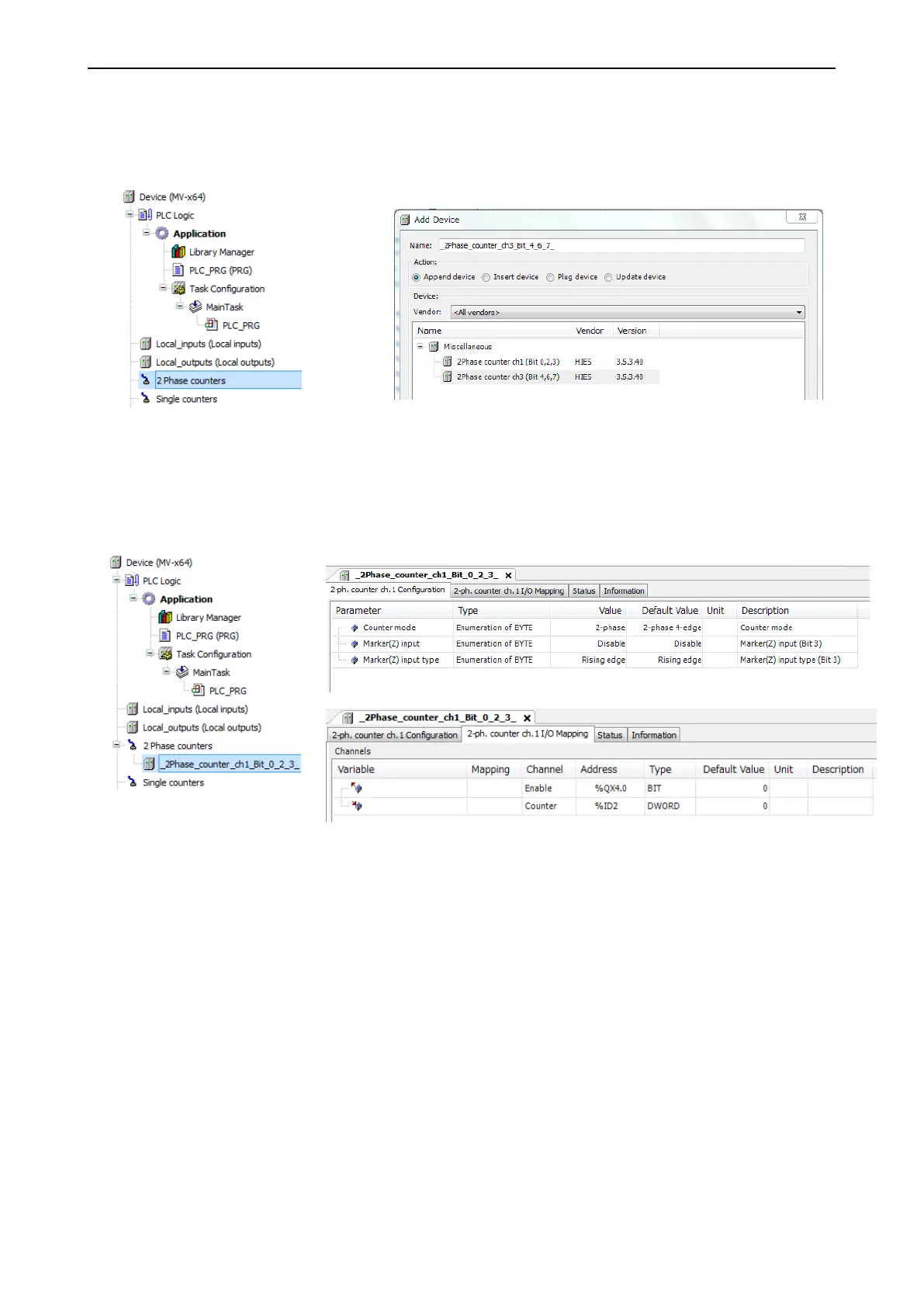

Configuration of 2-phase counter
Right click on “2-phase counters” and choose “Add Device…”.
Then “Add Device” window appears. Click 2Phase counter ch1 or ch3 and [Add Device] button.
Double click on “_2Phase_counter_chx…” or right click and choose “Edit Object”. 2-phase counter configuration
window appears. 2-phase counter has Configuration tab and Mapping tab as below.
