LOADING NAILS
WARNING
䢇 When loading nails into Nailer,
1) do not depress trigger;
2) do not depress push lever; and
3) keep Nailer pointed downward.

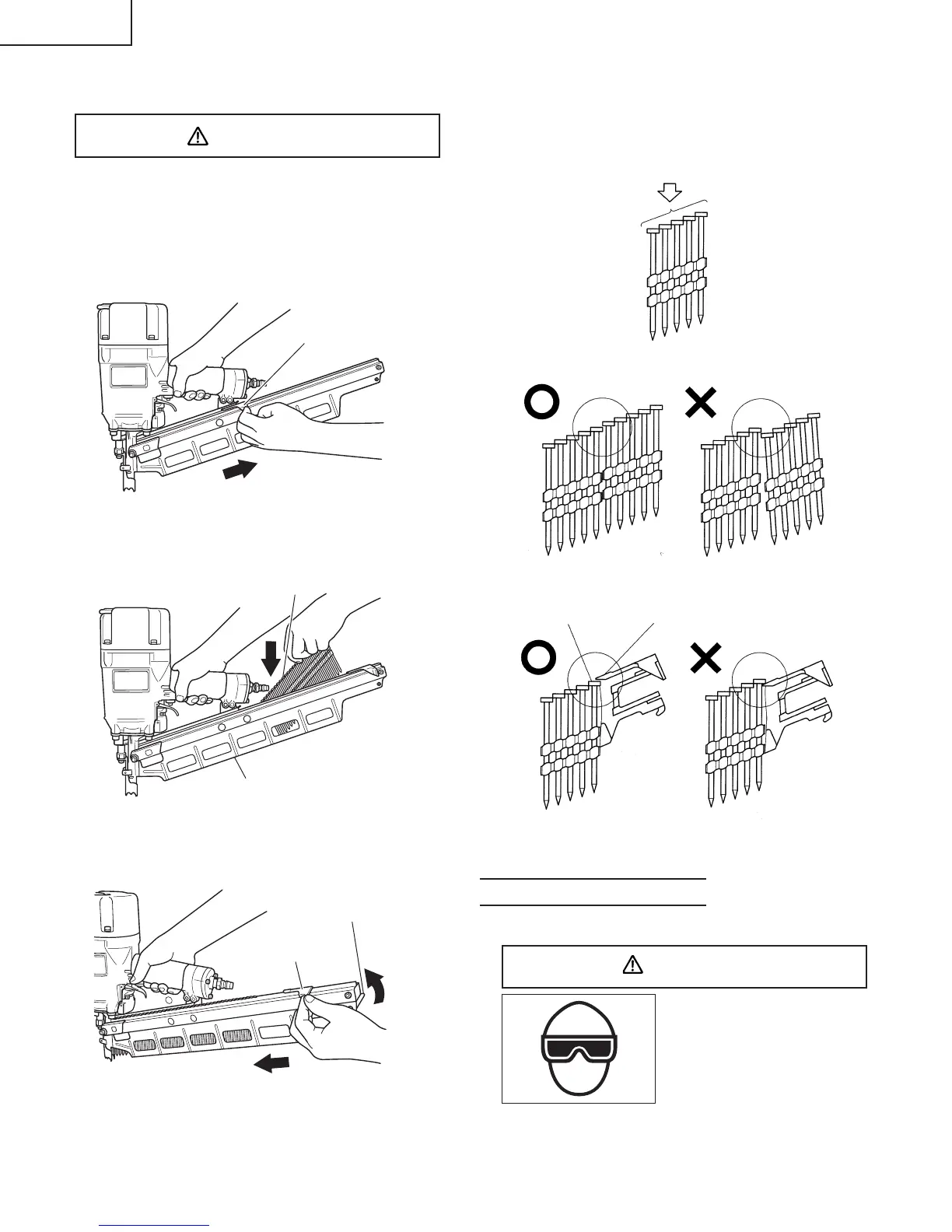

(1) Pull the nail feeder back until it latches.
(2) Insert nail strips one by one from above the magazine.
Two strips can be loaded at one time.
(3) Press the stop lever and slide the nail feeder forward
until it contacts the nail strip.
NOTE:
䢇 Quietly push the Nail Feeder against the nail.
If the Nail Feeder is released from backward the
magazine and bumped against the nail, the
connecting plastic of the nail can be damaged.
䢇 Use nail strip at least 5 nails remaining.
䢇 Set heads of nails overlapped as shown in the below
figure.
䢇 Ensure that the head of tail nail is set under the nail
stopper of nail feeder.
The Nailer is now ready to operate.
NAILER OPERATION
Read section titled “SAFETY”(pages 4 – 6).
DANGER
䢇 Operators and others in
work area MUST wear
safety glasses with side
shields which conforms
to ANSI Z87.1
specifications.
Nail Feeder
Magazine
Nail Strip
Stop Lever
Nail Feeder
Tail Nail
Nail Stopper
