Hitachi NR83A2 S1 User Manual

— 7 —
English
OPERATION
NOTE: The information contained in this Manual is designed to assist you in the safe operation of the Nailer.
Some illustrations in this Manual may show details or attachments that differ from those on your own Nailer.

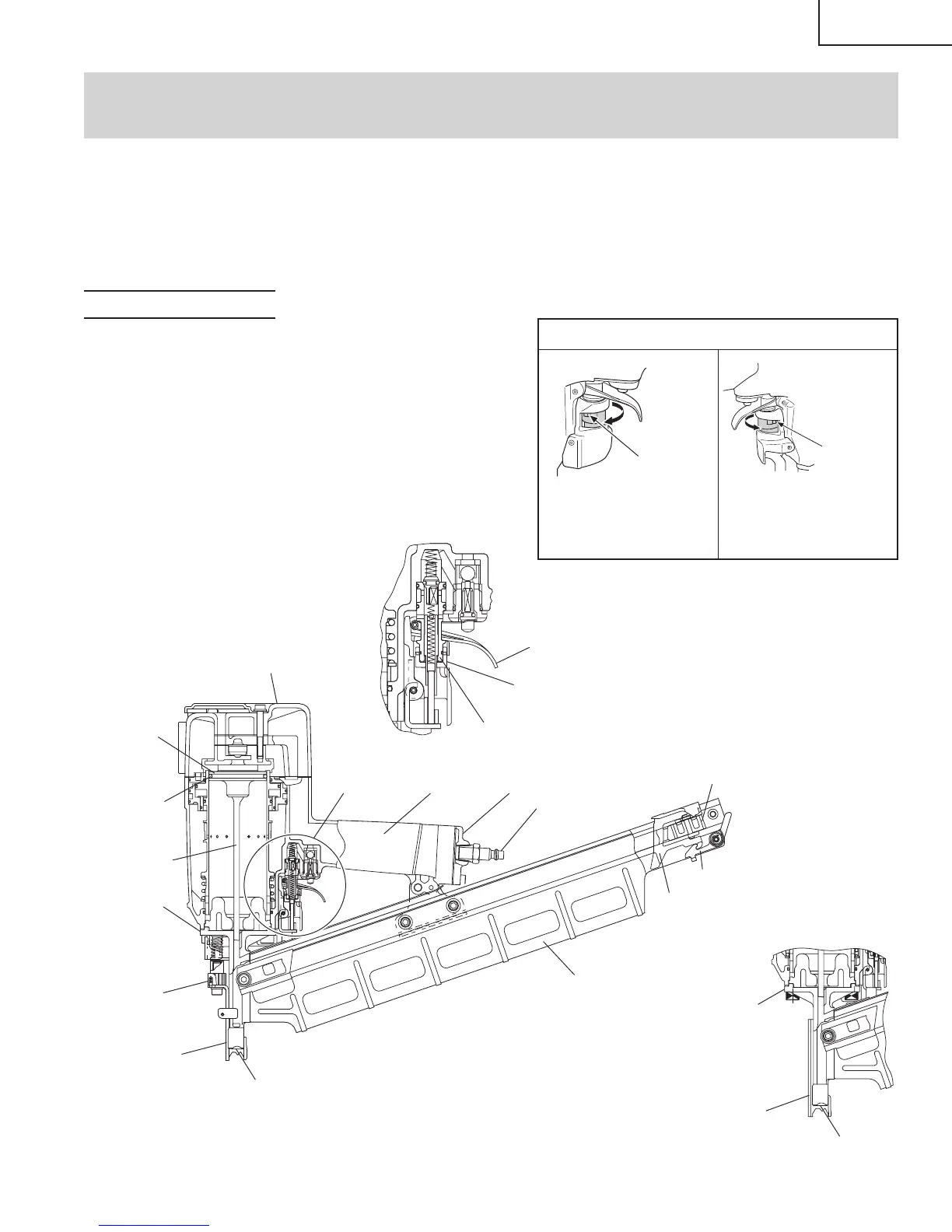

NAME OF PARTS
Nose
Piston
Piston
O-Ring
Exhaust Cover
Driver
Blade
Push Lever
Adjuster
[NR83A2(Y)]
Outlet (Firing Head)
Body
Trigger
Cap
Ribbon Spring
Nail Feeder
Magazine Assembly
Stop Lever
Air Plug
(Sold separetely)
Enlarged view of the valve part
Valve part
Switching Device
Valve Bush
Nose
Push Lever
Outlet (Firing Head)
Nailing operation switching device
Switching
Device
SINGLE SEQUENTIAL
ACTUATION MECHANISM
(Switching device:
leftward position)
CONTACT ACTUATION
MECHANISM
(Switching device:
rightward position)
Switching
Device
[NR83A2(S1)]
01Eng_nr83a2(01_17)e.p65 4/19/11, 17:217

Hitachi NR83A2 S1 Specifications

General

Type	Framing Nailer
Operating Pressure	70-120 psi
Magazine Angle	21 degrees
Firing Mode	Contact or Sequential
Power Source	Pneumatic
Nail Diameter	0.113 to 0.131 inches
Nail Length	2 to 3-1/4 inches
Magazine Capacity	64-70 nails
