CONNECTION (continued)
3. Examples of other AV equipment that you might connect to this TV
Two video recorder connection (e.g. to duplicate a video tape)
DVD player:
For superior picture quality, set your DVD player to output an RGB signal (refer to your particular DVD player owner’s
manual). Always connect DVD players (and other equipment which can output an RGB signal) to AV1 - only the AV1
SCART socket is compatible with RGB signal. Select AV1 input mode
S-Video signals can be played back either through the AV2 SCART socket, or the AV4
. If you wish to use S-Video via the AV2
SCART socket, use an S-Video-to-SCART adaptor (not supplied).
Select ‘MONITOR’ in the ‘AV2 OUTPUT’ option
. This displays the playback
picture from video recorder 1. While the TV is set up
in this way, you can duplicate a video tape - the AV2
SCART socket will output the picture that is being
shown on the screen (please remember that changing
the channel in this mode will also affect the recording).

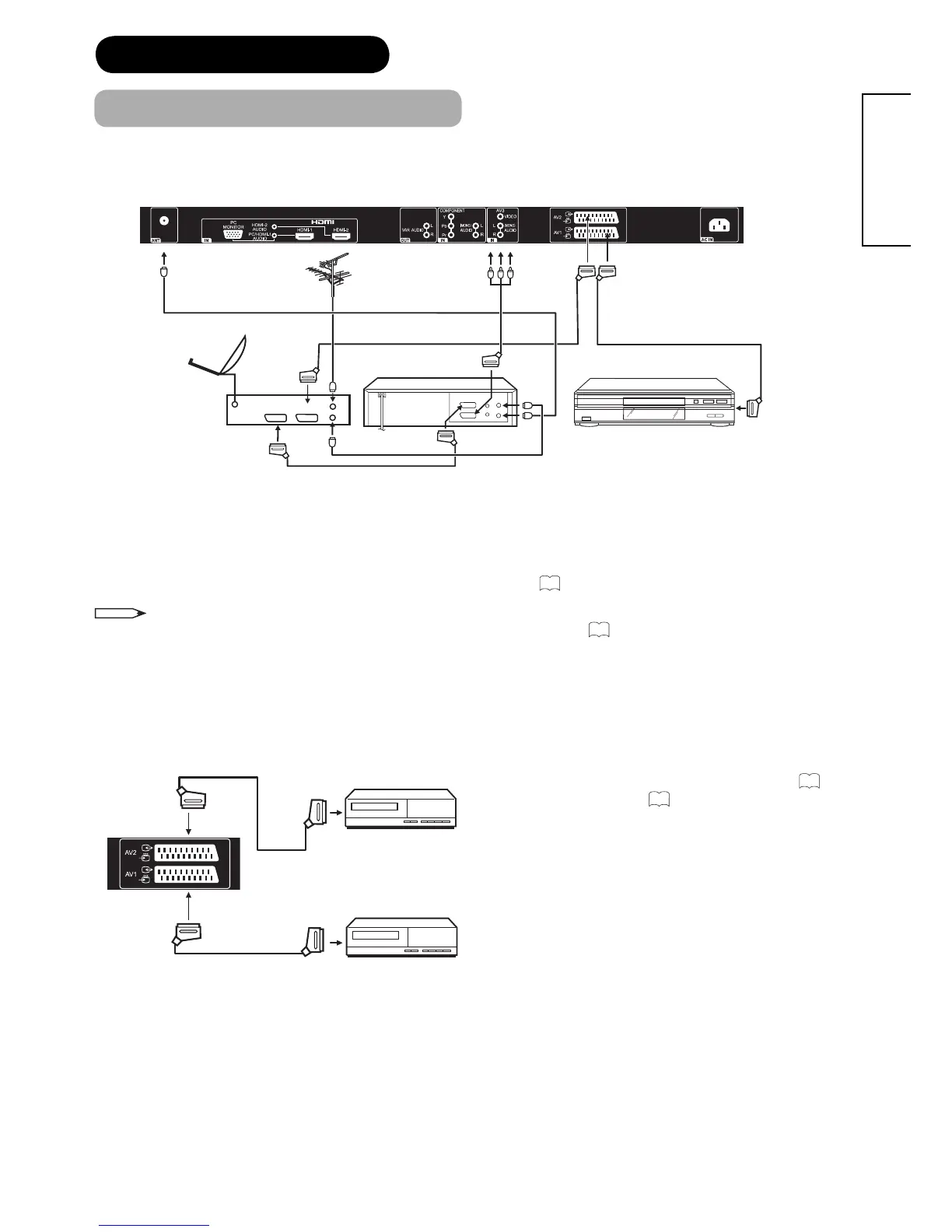

Connecting Procedure (continued)
(All illustrated SCART cables and aerial cables are not supplied)
ANT
AV2 AV1
Satellite aerial
VCR
TV
DVD player
Satellite
receiver
Video recorder
Aerial
TV (Rear bottom view)
Video recorder 1 to AV1
Playback
(All illustrated SCART cables are not supplied)
TV (Rear
bottom view)
Video recorder 2 to AV2
Recording
To Next Page
