Seal
● Do not remove the Slimline slide case. ● Do not peel off the adhesive
seal.
Caution
Caution
Upper Case, Partition and Lower Case
(Vegetable Compartment)
● When opening the door, do not place your foot near the door. Doing so may
get your foot caught between the door and the floor.
● Be careful. Water may drip from the backside of the lower case.
● Be sure to remove the partition before removing the lower case.
Caution
●
Improper installation of the Upper Case and the Partition
may damage parts, including cases.
Once the Upper Case is installed, slide it in the front-rear
direction to confirm that it is mounted properly.
Request
Ice Case
(Ice Compartment)
・
Upper Freezer case
(Upper Freezer)
Slide case and lower freezer case
(Lower Freezer)
When installing it, insert the pins on the left/right of the Lower freezer case into the square holes on the frame to install it.
Moreover, hitch the fork on the left/right of the Slide case to the outside of the Lower freezer case.
Draw the door fully and lift up the case
towards you.
Put the case bottom on the frame and set the case.
Underside of the case
Frame
Draw the door fully, and draw the Slide case
respectively.
Lift up the Lower freezer
case.
How to attach the slide door
(
Ice Compartment/Upper Freezer/Lower Freezer/Vegetable Compartment
)
Ice Compartment/Upper Freezer Lower Freezer/Vegetable Compartment
Frame
Frame
Incorrect placement may cause abnormal noises and improper door closure when opening and
closing.
When attaching the partition, align the letter [R] on the front lower right side, and insert it firmly
into the lower case until the end.
Slimline slide case
Slide case
Frame
Lower freezer case
Pin (right and left)
Fork (right and left)
Rectangle
hole in the
frame
Draw the door fully and pull
up the Upper case as shown
in the figure.
Lift up the
Upper Case.
Lift up the
Lower Case.
Remove the partition.
● Hold both sides of the
partition and lift it straight up.
Lower Case
Pin (right and left)
Square hole in the frame
Upper Case
Partition
Lower Case
Front sideBack side

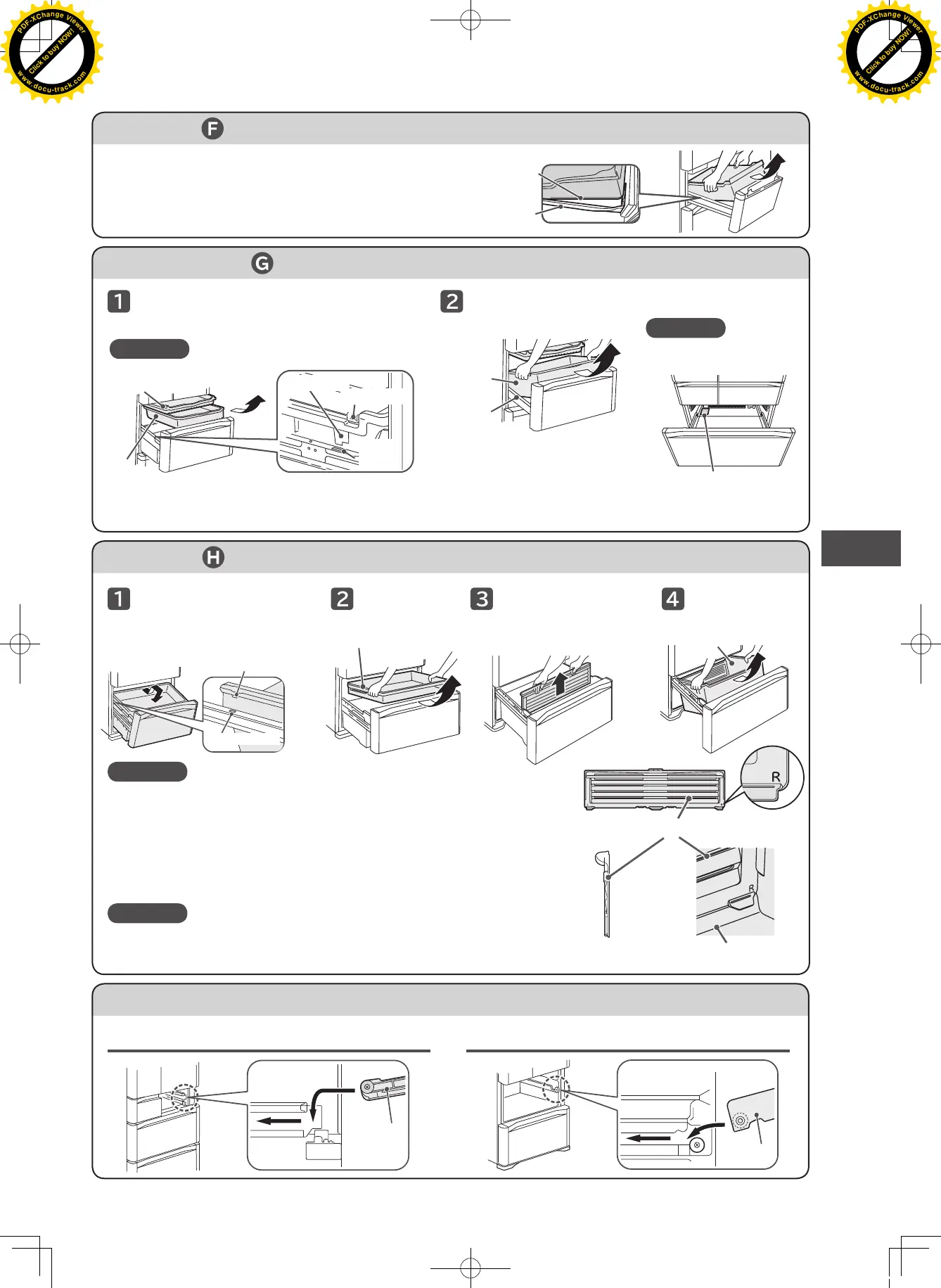

HOW TO REMOVE/ATTACH PARTS
To Next Page
