6 General dimensions
Name of parts and Dimensional data
TCGB0123 rev.2 - 10/2019
87
6

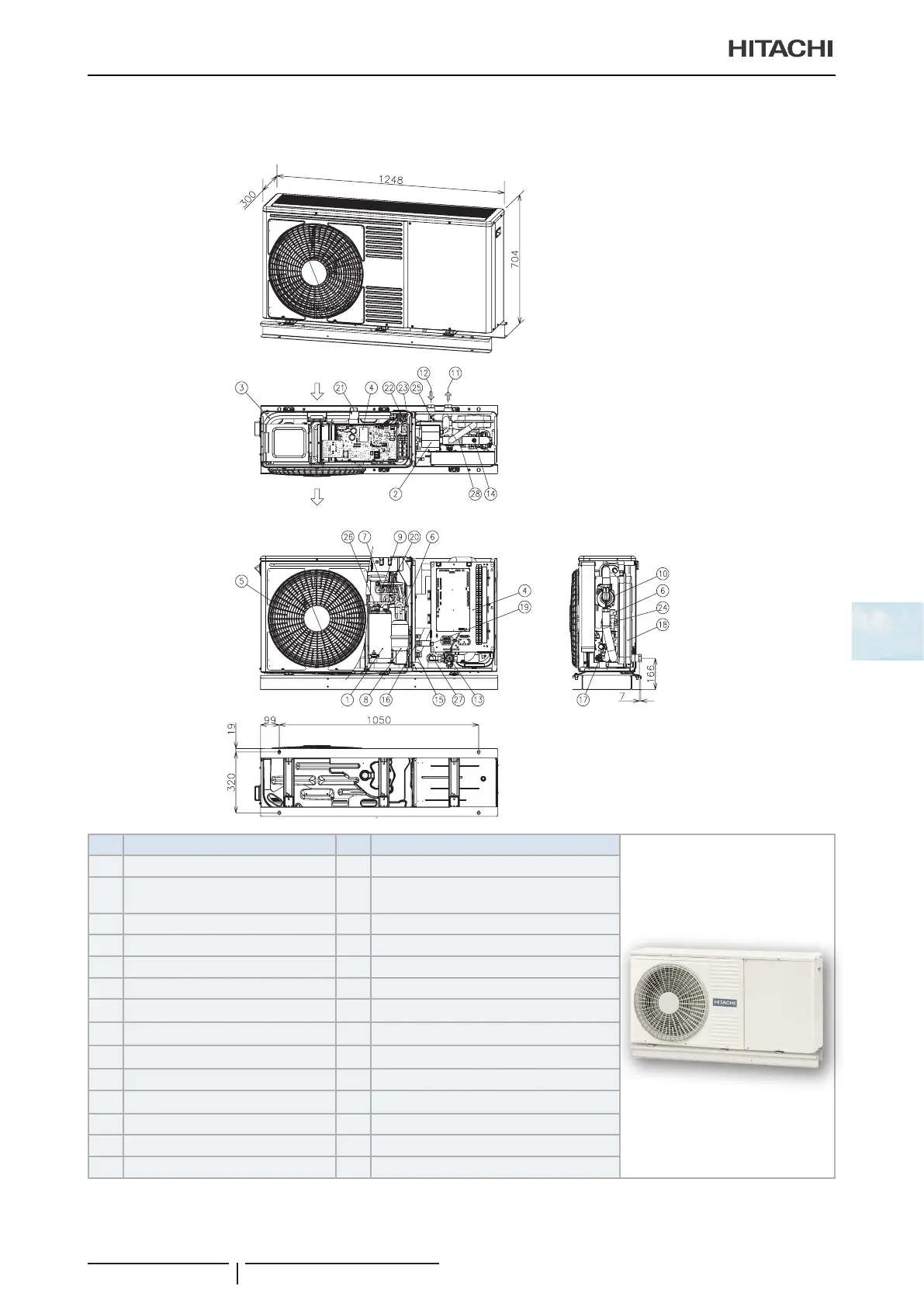

6.1.3 Monobloc system - YUTAKI M
RASM-(2-3)VRE
Front view
Top view
Bottom
view
Side view
Units in mm.
XEKS 1931
Nº Part name Nº Part name
1 Compressor 15 Stop valve for gas line - Ø15.88 (5/8”)
2 Water side heat exchanger 16
Stop valve for liquid line - 2HP:Ø6,35(1/4")
- 3HP:Ø9.52 (3/8”)
3 Air side heat exchanger 17 Safety valve
4 Electrical box 18 Expansion vessel 6L
5 Fan (x1) 19 Switch for DHW “emergency” operation
6 Expansion valve (x2) 20 Pressure switch for control (Psc)
7 Reversing valve 21 Ambient thermistor
8 Accumulator 22 Liquid temperature thermistor
9 High pressure switch (HPS) 23 Liquid temperature thermistor
10 Water pump 24 Refrigerant liquid pipe thermistor
11 Water outlet - G 1” 25 Refrigerant gas pipe thermistor
12 Water inlet - G 1” 26 Compressor discharge thermistor
13 Water strainer 27 Water inlet thermistor
14 Air Purger 28 Water outlet thermistor
