6 General dimensions
Service space
TCGB0123 rev.2 - 10/2019
88

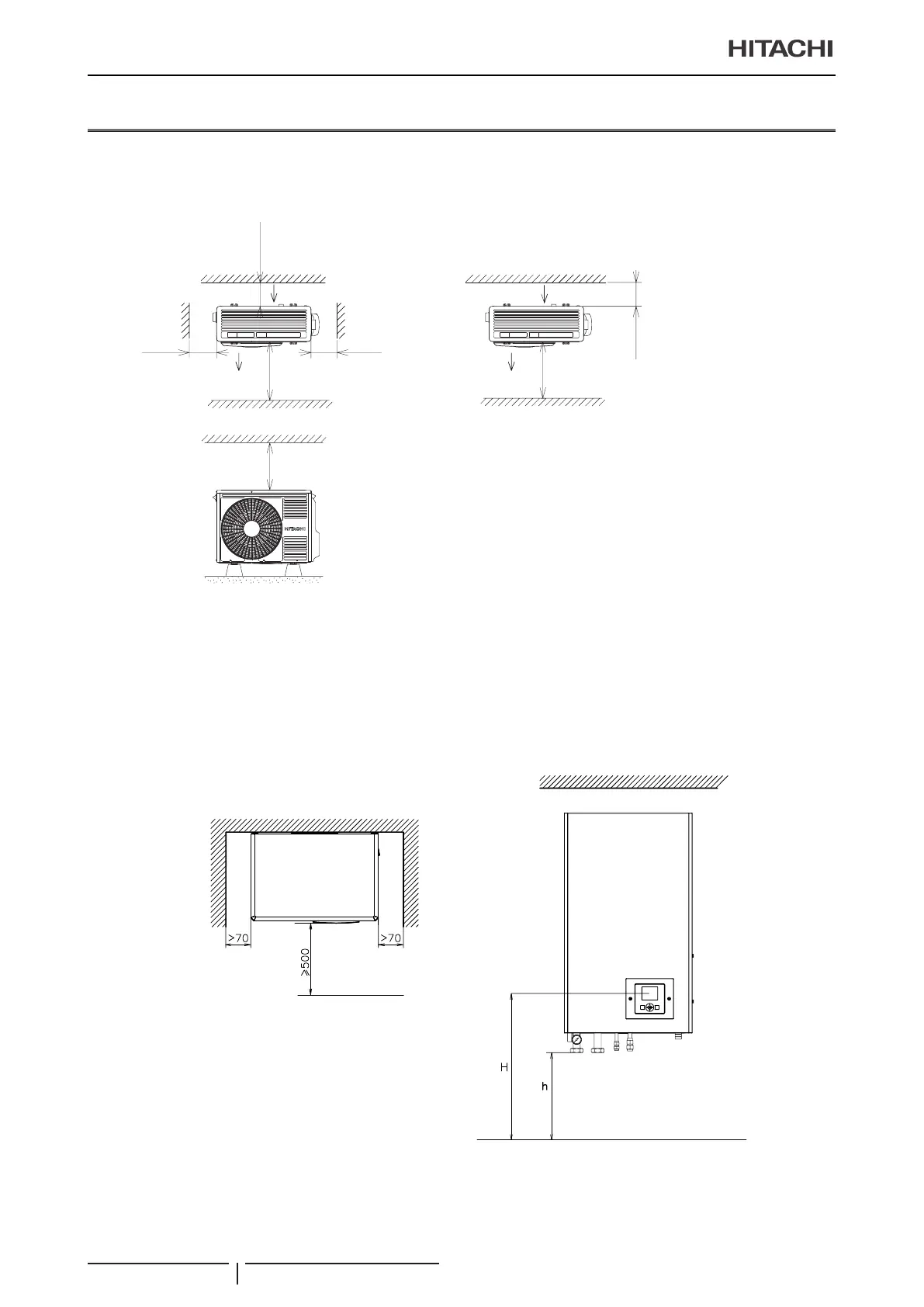

6.2 Service space
6.2.1 Split system - Outdoor unit
RAS-(2-3)WHVRP
≥100 ≥250
≥200
≥200
≥50
≥400
≥100
? NOTE
Please refer to the Service Manual for detailed information.
6.2.2 Split system - Indoor unit
6.2.2.1 YUTAKI S
RWM-(2.0-3.0)NRE(-W)
Units in mm.
H: 1200~1500 mm
Recommended unit height for proper access to
the control unit panel (Unit controller).
h: 350 mm
Minimum unit height for installing the shut-off
valves and the rst bending pipe line.
Top view
Front view
To Next Page
