Hitachi SH1-900H

2-16

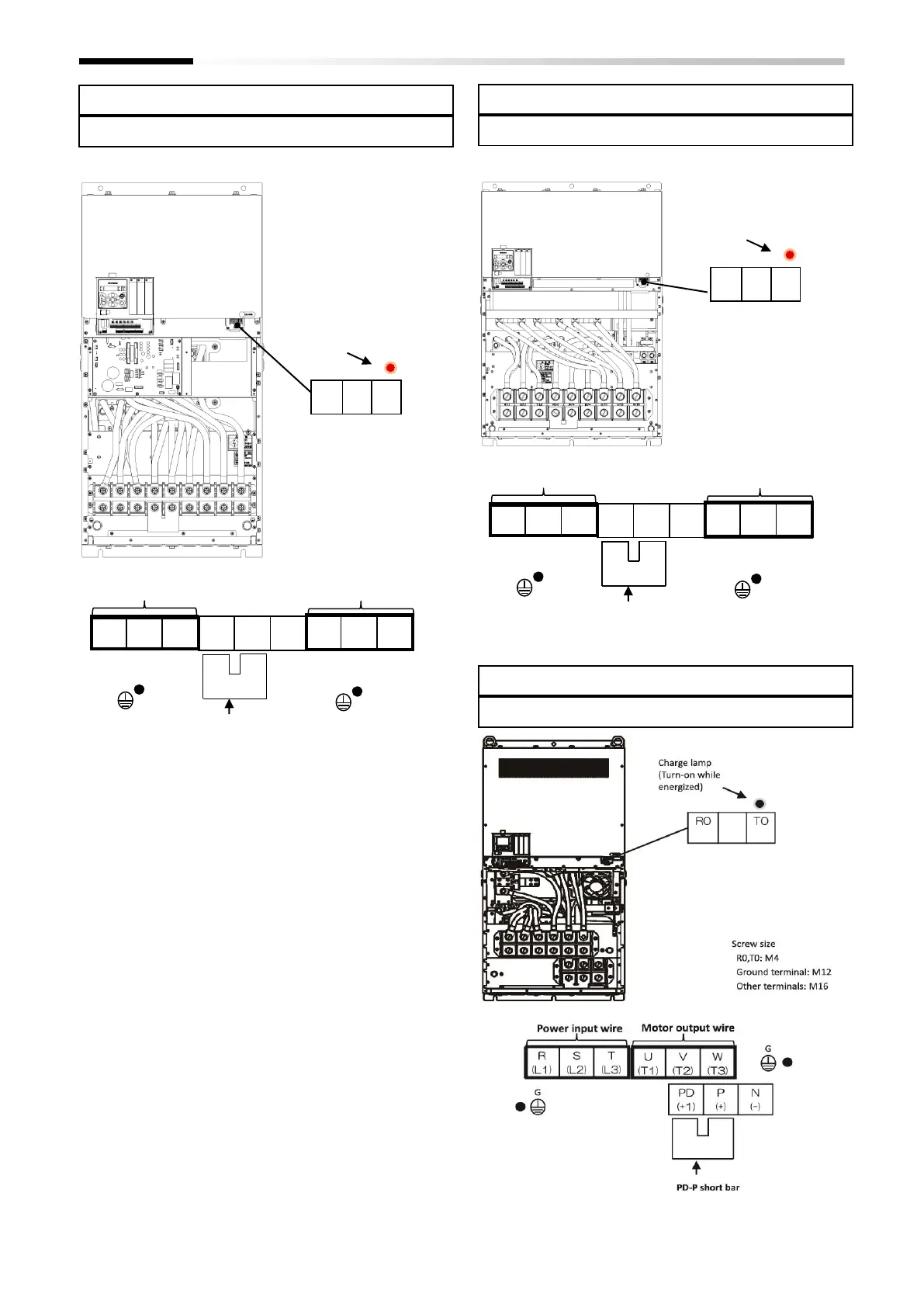

Chapter 2
Installation and Wiring
Model SH1- *****-*(SH1-****)
400V class::03410-H(1600H), 03950-H(1850H)
Model SH1- *****-*(SH1-****)
400V class:04460-H(2000H), 04810-H(2200H),05500-H(2500H)
Model SH1- *****-*(SH1-****)
400V class:06600-H(3150H)
R
(L1)
S
(L2)
T
(L3)
U
(T1)
V
(T2)
W
(T3)
PD
(+1)
P
(+)
N
(-)
PD-P short bar
Power input wire
Motor output wire
G
G
R0
T0
Screw size
R0,T0 : M4
Ground terminal: M12
Other terminals: M16
Charge lamp
(Turn-on while
energized)
(通电时点亮)
R
(L1)
S
(L2)
T
(L3)
U
(T1)
V
(T2)
W
(T3)
PD
(+1)
P
(+)
N
(-)
PD-P short bar
Power input wire
Motor output wire
G
G
R0
T0
Screw size
R0,T0 :M4
Ground terminal: M12
Other terminals:M12
Charge lamp
(Turn-on while
energized)
(通电时点亮)
