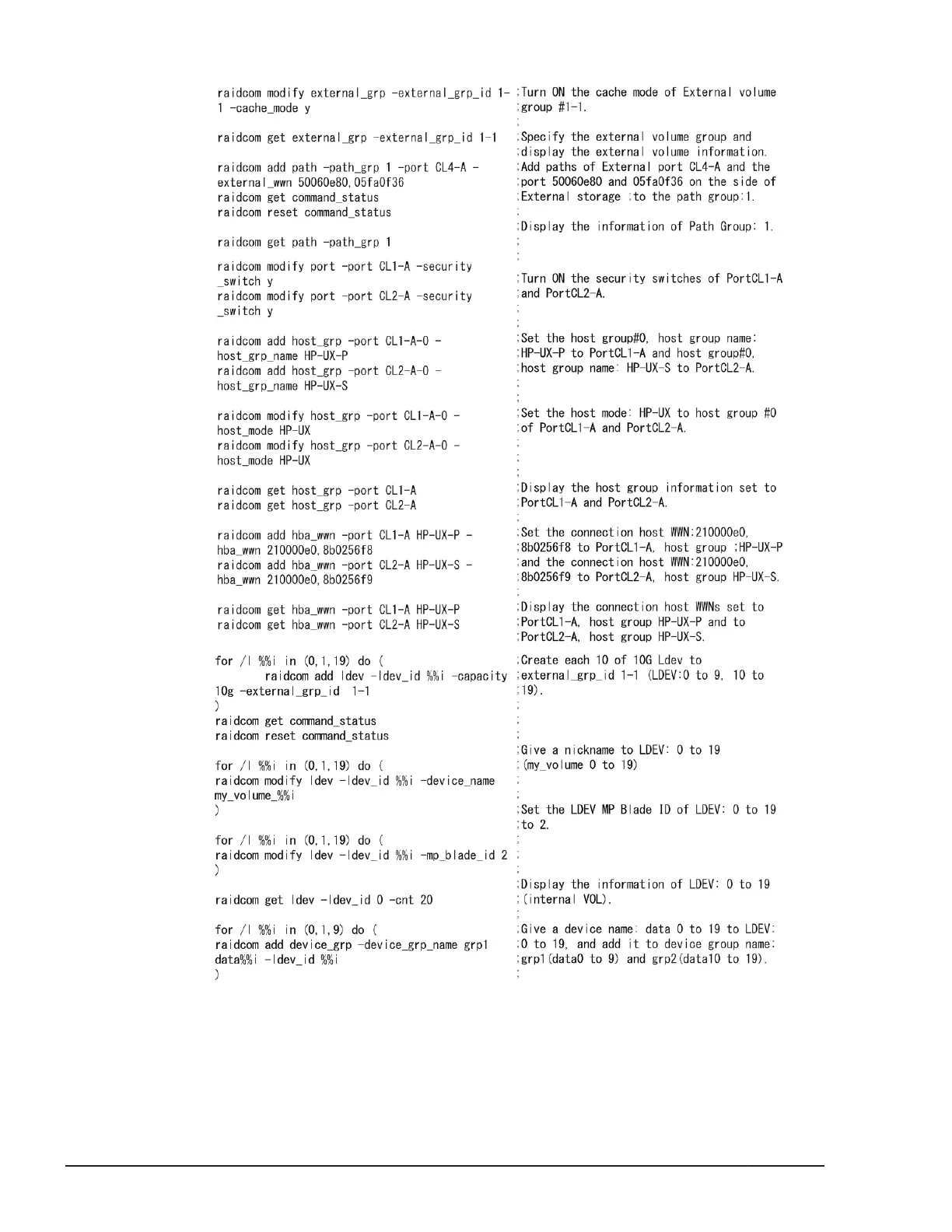

Figure 5-17 Script Examples of External Volume Operation (2/3)

5-52

Provisioning operations with CCI

Command Control Interface User and Reference Guide
