--- 14 ---
For products without noise suppressor
Armature
Stator
Stator
Printed Circuit
Board Ass'y
Switch
Fig. 19
Fig. 20
For products without noise suppressor
Armature
Printed Circuit
Board Ass'y
Connector
Switch
Capacitor
0.22 µF + 2x3300 pF
Choke coil
8 µF
Connector
12-2. Reassembly
Reassembly can generally be carried out as the reverse of the disassembly procedure, with some items to be
noted as follows.
(1) Reassembly of the power supply unit (Figs. 19 and 20)
Be sure to perform wiring connections as indicated in the wiring diagrams.
(a) Be sure to put the connectors in the specified position when connecting the connector of the Cord [125]
to the connector of the Controller Circuit [119] (Fig. 8).
(b) Before connecting each internal wire to the terminals of the Switch [121], check that the flat springs of each
terminal are not deformed. After connecting, slightly pull the internal wires to ensure that they are not
easily disconnected.

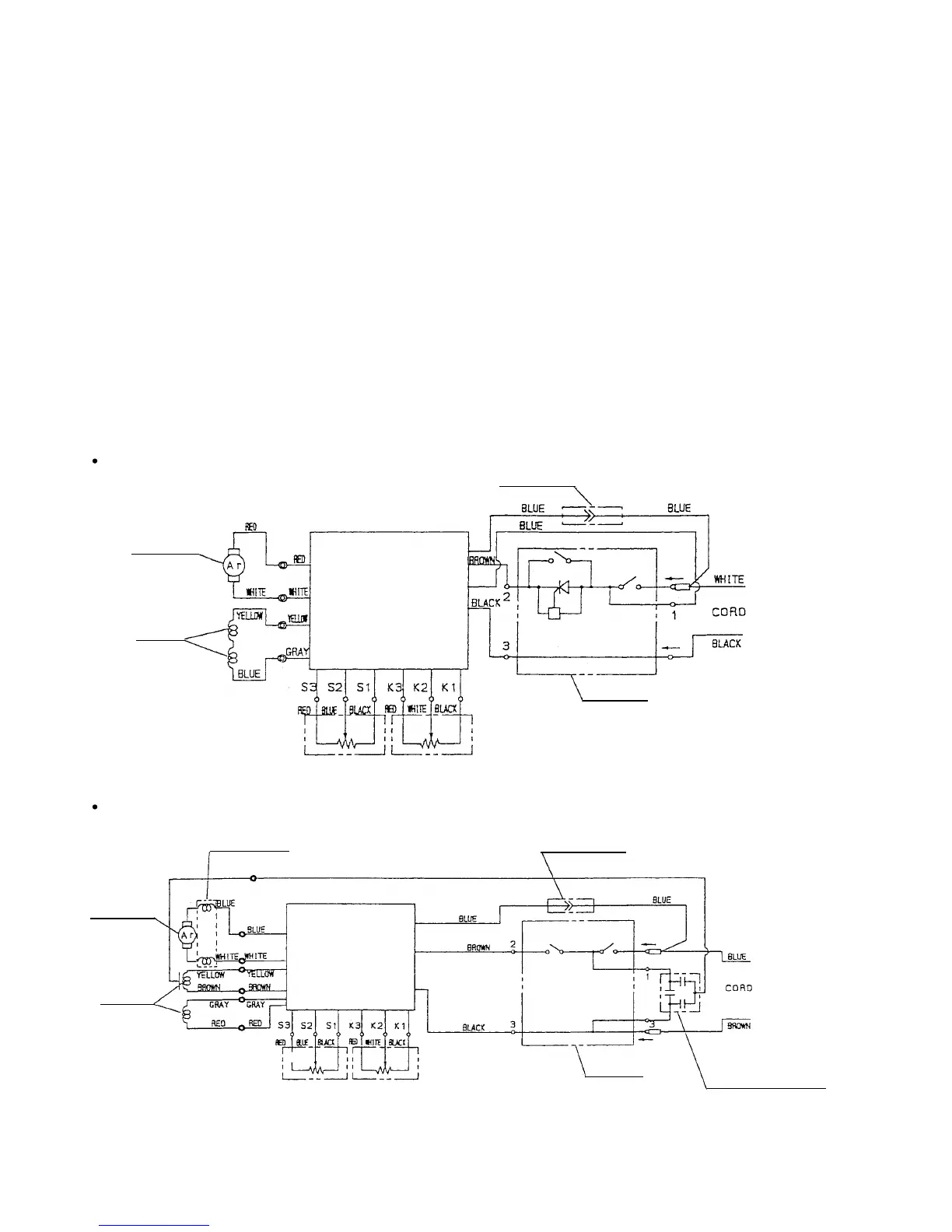

12-3. Wiring Diagram
Be sure to perform wiring connections as indicated in the wiring diagrams.
To Next Page
