J-322 angle gauge

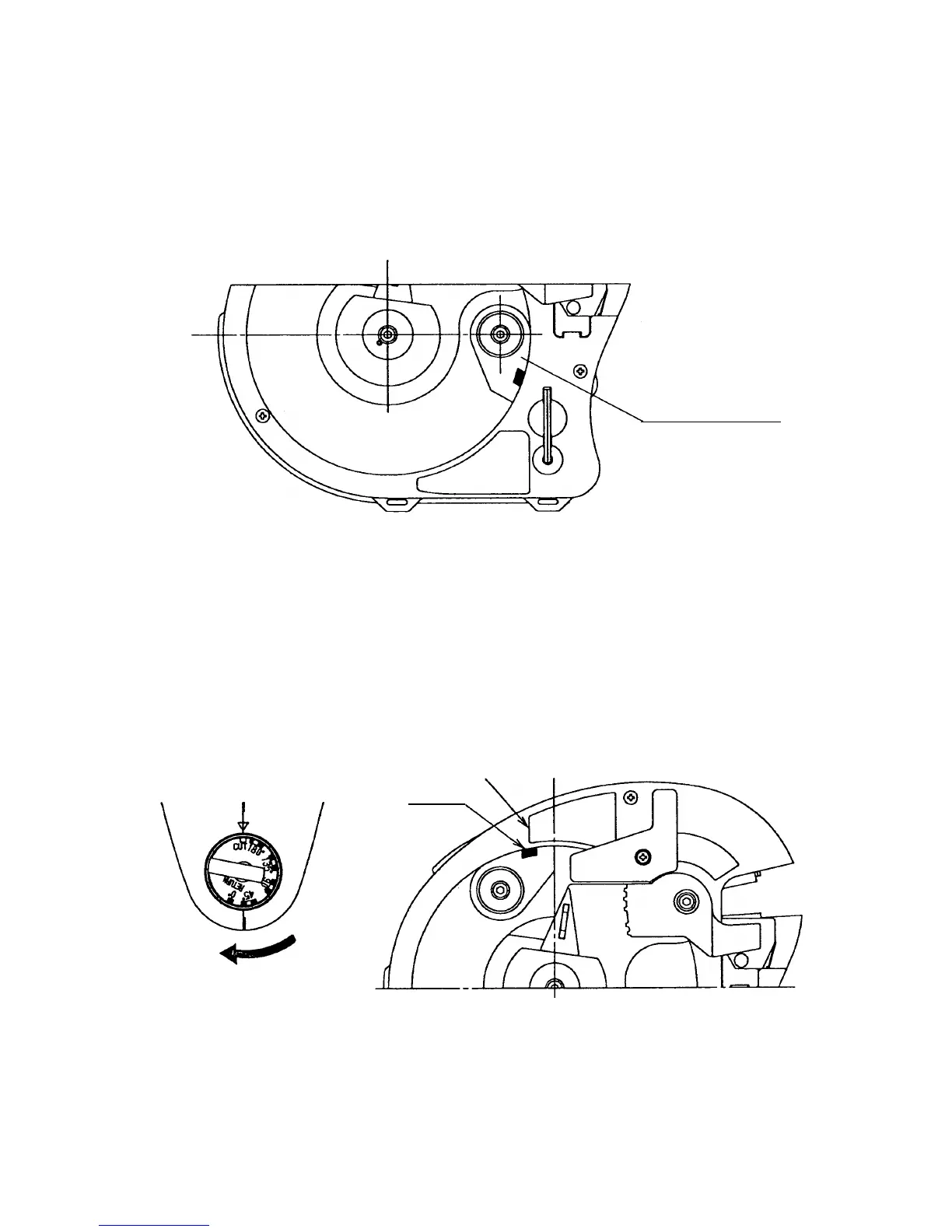

Fig. 29
Fig. 30-a
Clockwise
Mark
Fig. 30
A
12-4. Confirmation after Reassembly
12-4-1. Adjustment of turning angle of Roller (B) [8]
After reassembly, adjust the turning angle of Roller (B) [8] with the J-322 angle gauge so that rebars can be
accurately bent according to the setting of the set dial.
(1) Adhering the angle gauge (Fig. 29)
Put the angle gauge around Roller (B) [8] and adhere it to the Turn Table [2] aligning with the perimeter.
(2) Checking (Fig. 30)
(a) Turn the set dial fully clockwise to start the machine.
(b) Check the position of the line "A" on the cam cover and the mark on the angle gauge when the machine
switches from forward to reverse rotation.
(c) It is all right if the line "A" on the cam cover is within the range of the angle gauge mark when the machine
switches from forward to reverse rotation.
To Next Page
