0˚
RETURN
CUT
45˚
90˚
135˚
180˚
8. HOW TO USE THIS UNIT

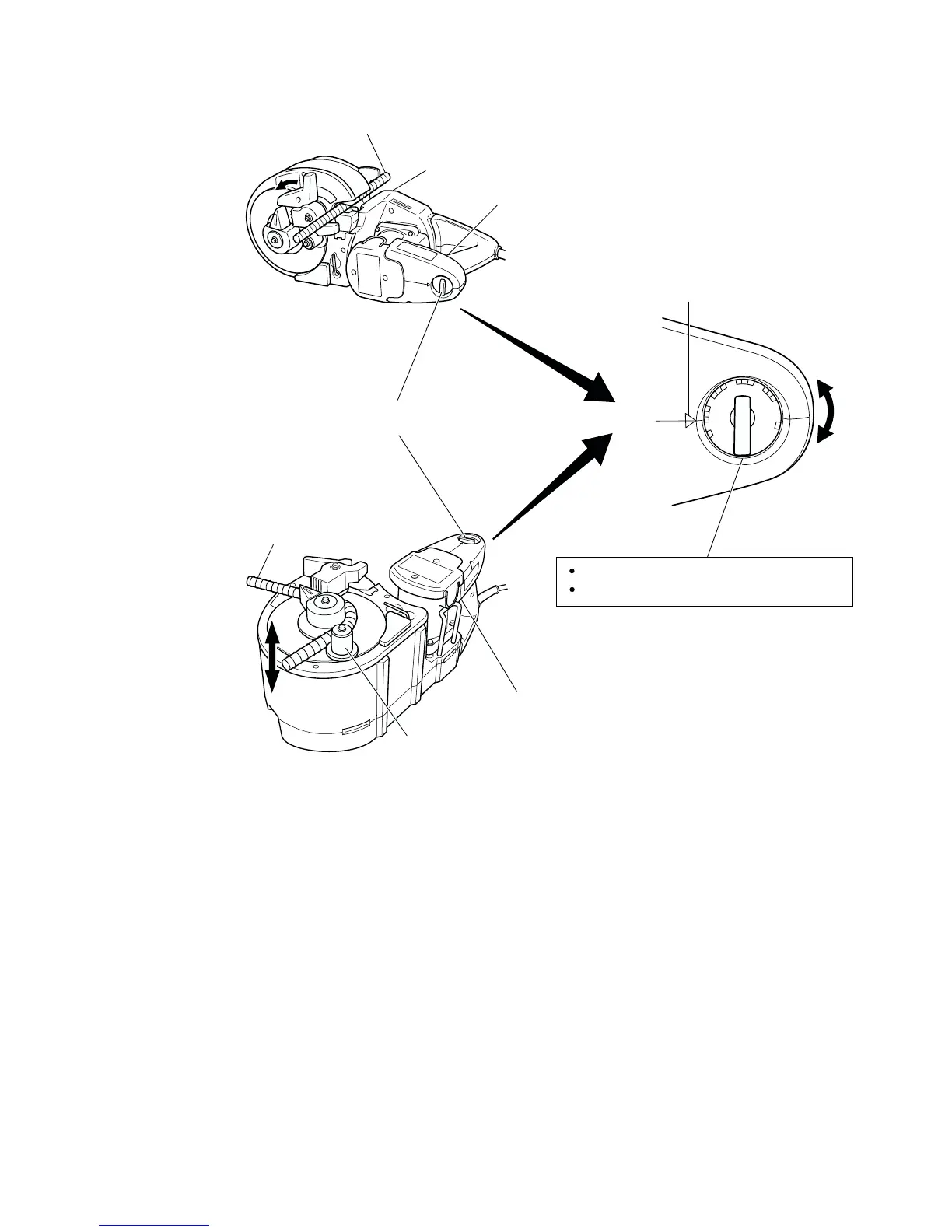

(1) Cutting work (Fig.4)
(2) Bending work (Fig. 5)
Fig.4
Fig. 5
Fig. 6
Rebar
Cutter
Setting dial
Alignment mark
ON-OFF switch
Rebar
ON-OFF switch
Bending roller
To switch between cutting and bending
To adjust bending angle (0 fl
---
180 fl)
9. SERVICE LIFE OF CUTTER
Repeated cutting of the rebar can result in the "wear and tear", "deformation", "nicked edges", etc. Replace it with
a new cutter after cutting about 8,000 pieces of rebar (a rough guide).
10. PRECAUTIONS IN SALES PROMOTION
In the interest of promoting the safest and most efficient use of the Model VB 16Y Portable Rebar Cutter/Bender
by all of our customers, it is very important that at the time of sale the salesperson carefully ensures that the buyer
seriously recognizes the importance of the contents of the Handling Instructions, and fully understands the
meaning of the precautions listed on the Caution Plate attached to each tool.
10-1. Handling Instructions
Salespersons must be thoroughly familiar with the contents of the Handling Instructions in order to give pertinent
advice to the customer. In particular, they must have a thorough understanding of the precautions for use of the
portable rebar cutter/bender which is different from those of ordinary electric power tools.
To Next Page
