Hitachi VB 16Y Technical Data And Service Manual

--- 3 ---
Bending
10 mm (3/8") max.
•••••
3 pieces
12 mm (1/2") max.
•••••
2 piece
16 mm (5/8") max.
•••••
1 piece
Capacities
Number of pieces that can be
processed at one time
Motor type
Enclosure
Insulation structure
Switch
Power source
Voltage and current
Power input
Rotation speed
Weight
Packaging
Cord
Standard accessories

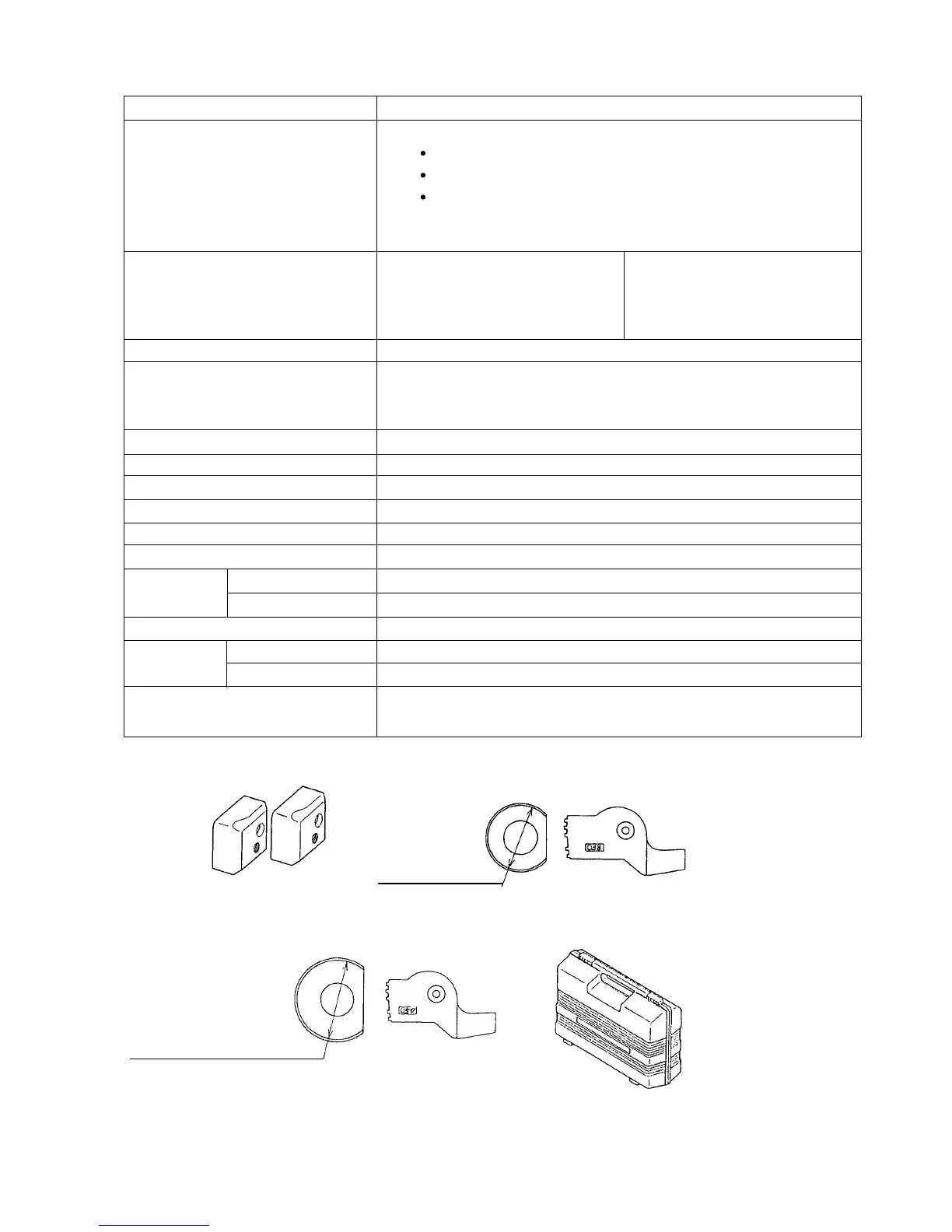

6. SPECIFICATIONS
VB 16Y
(1) Material; Rebar: Yield strength 460N/mm
2
(47 kgf/mm
2
) max.
GRADE 460 (Great Britain)
BST 500 (Germany)
B 500 (Spain)
or equivalent grades
(2) Max. rebar diameter: 16 mm (5/8")
AC single-phase series commutator motor
Materials: Aluminum alloy die cast
Glass-fiber reinforced resin (Housing, handle, tail cover)
Painting: Silver, light green, black
Double insulation
Trigger switch
Single-phase AC 50 Hz
2.3 A (230 V)
510 W
14.5 min
-1
Product: 17.0 kg (37.5 lbs.); excluding cord
Packed: 19.7 kg (43.4 lbs.)
Corrugated cardboard box
Two-core cabtire cable
2.5 m (8.2 ft.)
Allen key (for M5 hexagon socket bolt)
• ••••••••••••••••••••••••••••••••••••
1 pc.
One set of cutters
••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
1 set.
Cutting
10 mm (3/8") max.
•••••
2 pieces
12 mm (1/2") max.
•••••
1 piece
16 mm (5/8") max.
•••••
1 piece
Model
6.1 Optional Parts
1. Cutter
2. Center roller (D38) set
3. Center roller (D50) set
4. Case
*Outer dimensions
525 x 346 x 236 (mm)
Code No. 314837
* A set of two cutters
Code No. 319706
* This is used when the
bending diameter of a
rebar is changed to
38 - 40 mm.
Code No. 319712
(The bending diameter
of the standard center
roller is 62 - 64 mm.)
38 mm diameter
(R19 mm)
* This is used when the bending diameter of a
rebar is changed to 50 - 52 mm.
Code No. 319713
(The bending diameter of the standard center roller is 62 - 64 mm.)
50 mm diameter (R25 mm)
Net
Gross
Type
Overall length
Fig. 2
