Hitachi X200 Series - Page 27

Inverter MODBUS RTU Driver
GP-Pro EX Device/PLC Connection Manual
27
1D)

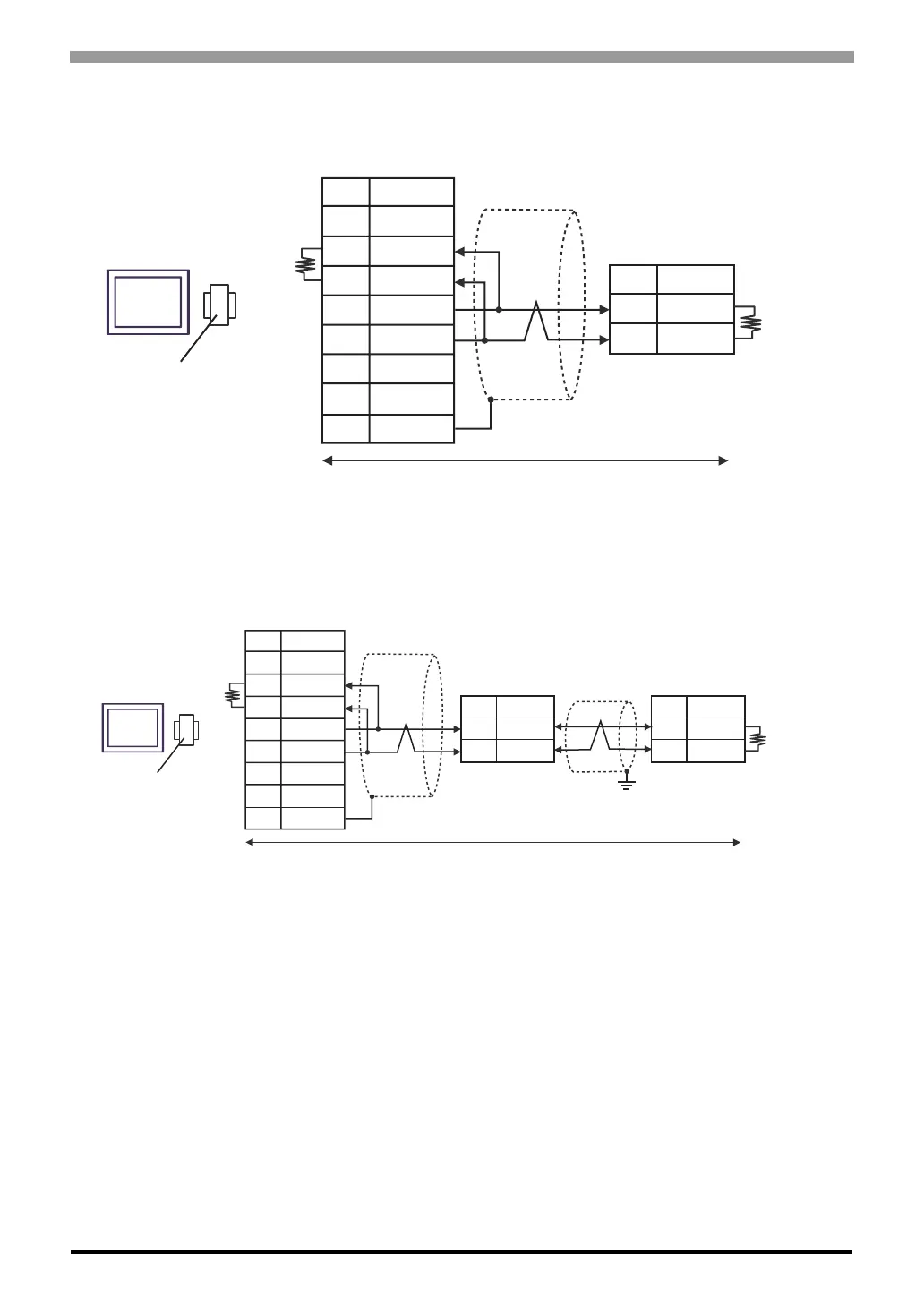

• 1:1 Connection
• 1:n Connection
Shield
Termination
resistance
200Ω
CA4-ADPONL-01
Display
Display side
D-Sub 9pin (plug)
TERMRX
RDA
RDB
SDA
SDB
TERMTX
SG
FG
Signal name
1
2
7
3
8
9
5
Shell
Pin
User-created cable
SP
SN
External Device side
RJ45 connector
Signal name
5
6
Pin
Termination
resistance
200Ω
Shield
Termination
resistance
200Ω
CA4-ADPONL-01
Display
Display side
D-Sub 9pin (plug)
TERMRX
RDA
RDB
SDA
SDB
TERMTX
SG
FG
Signal name
1
2
7
3
8
9
5
Shell
Pin
User-created cable
SP
SN
5
6
External Device side
RJ45 connector
Signal name
Pin
SP
SN
External Device side
RJ45 connector
Signal name
5
6
Pin
Shield
Termination
resistance
200Ω
