Hitachi ZAXIS 17U-5N User Manual

DRIVING THE MACHINE
4-9

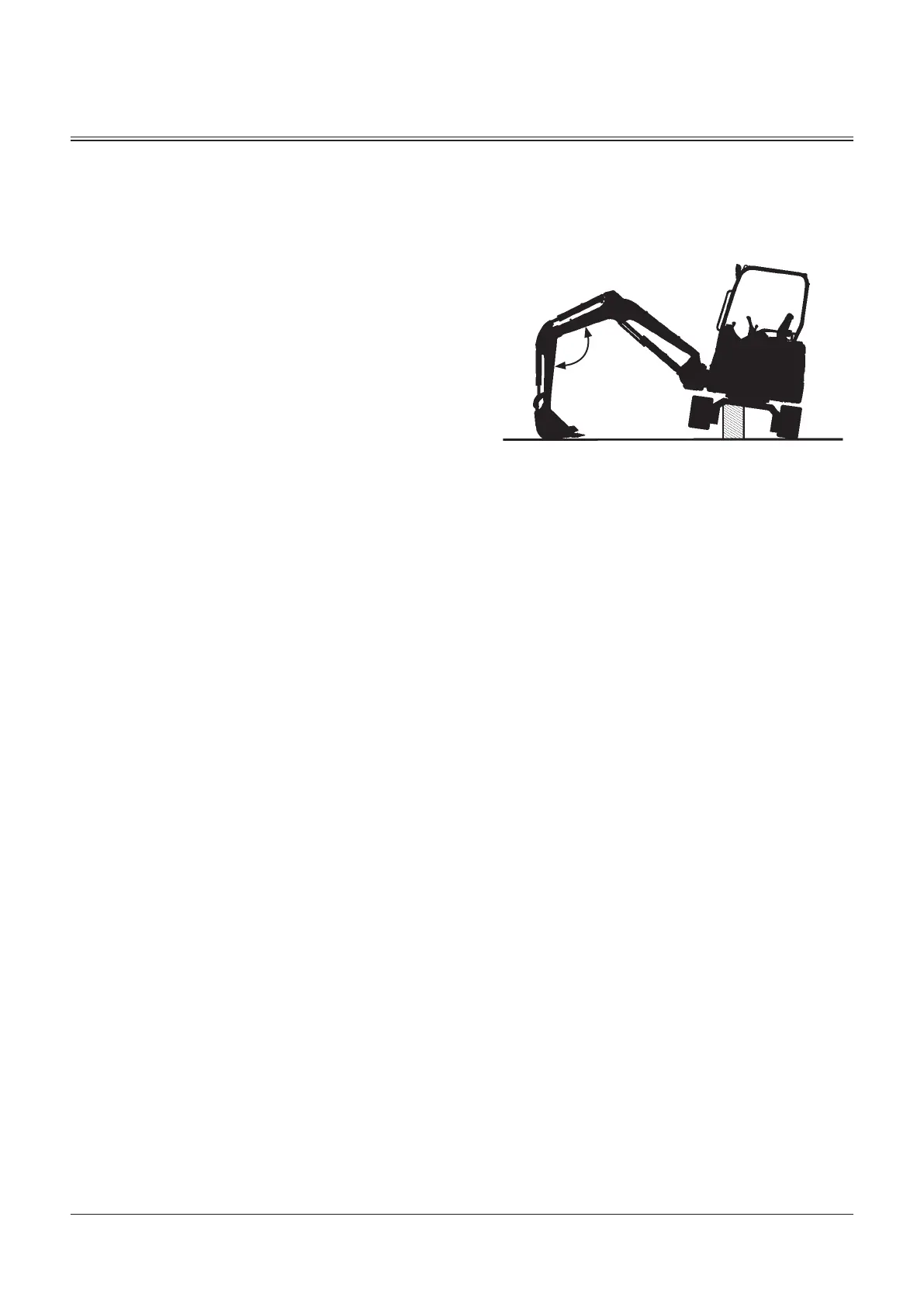

Raise One Track by Using Boom and Arm
d
WARNING: Operate the machine carefully. The
machine may slide. Keep the angle between the boom
and the arm at 90 to 110° and position the bucket’s
round side on the ground.
1. Swingtheupperstructure90°.
2. Positiontheboomandthearmsothattheangle
betweenthembecomes90to110°.Pushtheground
withtheroundpartofthebucketbottomtoraisethe
trackofftheground.
3. Donotraisethetrackwiththeboomandthearmwhen
the boom is swung.
4. Placeblocksunderthemachineframetosupportthe
machine.
90 to 110 º
M1M7-04-006
