Hitachi Zaxis 75US-A - Working Ranges (with Blade)

OPTIONAL ATTACHMENTS AND DEVICES
13-5

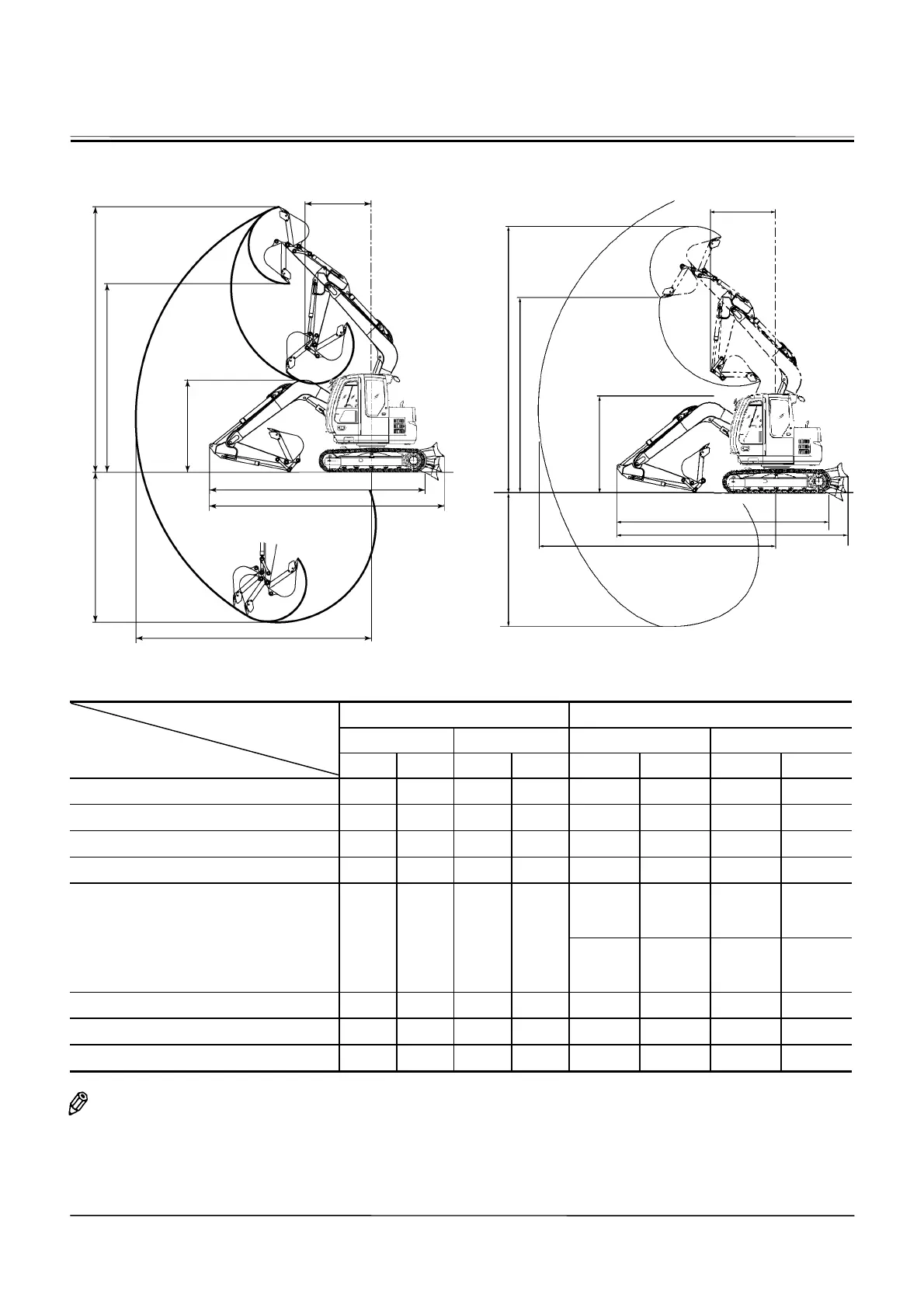

WORKING RANGES (with Blade)
M1CG-01-01-011
M1CG-12-002
1.62 m (5'4") Arm 2.12 m(7'0") Arm
Backhoe Shovel Backhoe shovel
Category
Item
mm ft·in mm ft·in mm ft·in mm ft·in
A: Maximum Digging Reach 6430 21'1" 6570 21'7" 6920 22'8" 7050 23'2"
B: Maximum Digging Depth 4110 13'6" 4250 14'0" 4610 15'2" 4750 15'7"
C: Maximum Cutting Height 7210 23'8" 7370 24'2" 7610 25'0" 7780 25'6"
D: Maximum Dumping Height 5120 16'10" 5390 17'8" 5510 18'1" 5830 19'2"
2690
(without
Bucket)
8'10"
(without
Bucket)
2690
(without
Bucket)
8'10"
(without
Bucket)
E: Overall Transport Height
2690 8'10" 2690 8'10"
2830
(with
Bucket)
9'3"
(with
Bucket)
2830
(with
Bucket)
9'3"
(with
Bucket)
F: Overall Transport Length 5870 19'3" 5870 19'3" 5950 19'6" 5950 19'6"
F’: (with Blade) (6330) (20'9") (6330) (20'9") (6410) (21'0") (6410) (21'0")
G: Minimum Swing Radius 1810 5'11" 1810 5'11" 2170 7'1" 2170 7'1"
NOTE: “E: Transport Height” includes the height of shoe lug; Other dimensions do not include the height of the
shoe lug.
Shovel
Backhoe
E
F’
F
A
B
D
C
F
F’
A
B
A
E
D
C
G
G
