OPERATOR'S STATION
1-174
Rear Grille
d
CAUTION:
Open or close rear grille (4) only after stopping the
engine. Failure to do so may create a very dangerous
situation as entanglement with the cooling fan may
result.
Before driving the machine, always check that rear
grille (4) is not open.
f
NOTE: The switch key cannot be removed from latch (3)
while rear grille (4) is being opened.

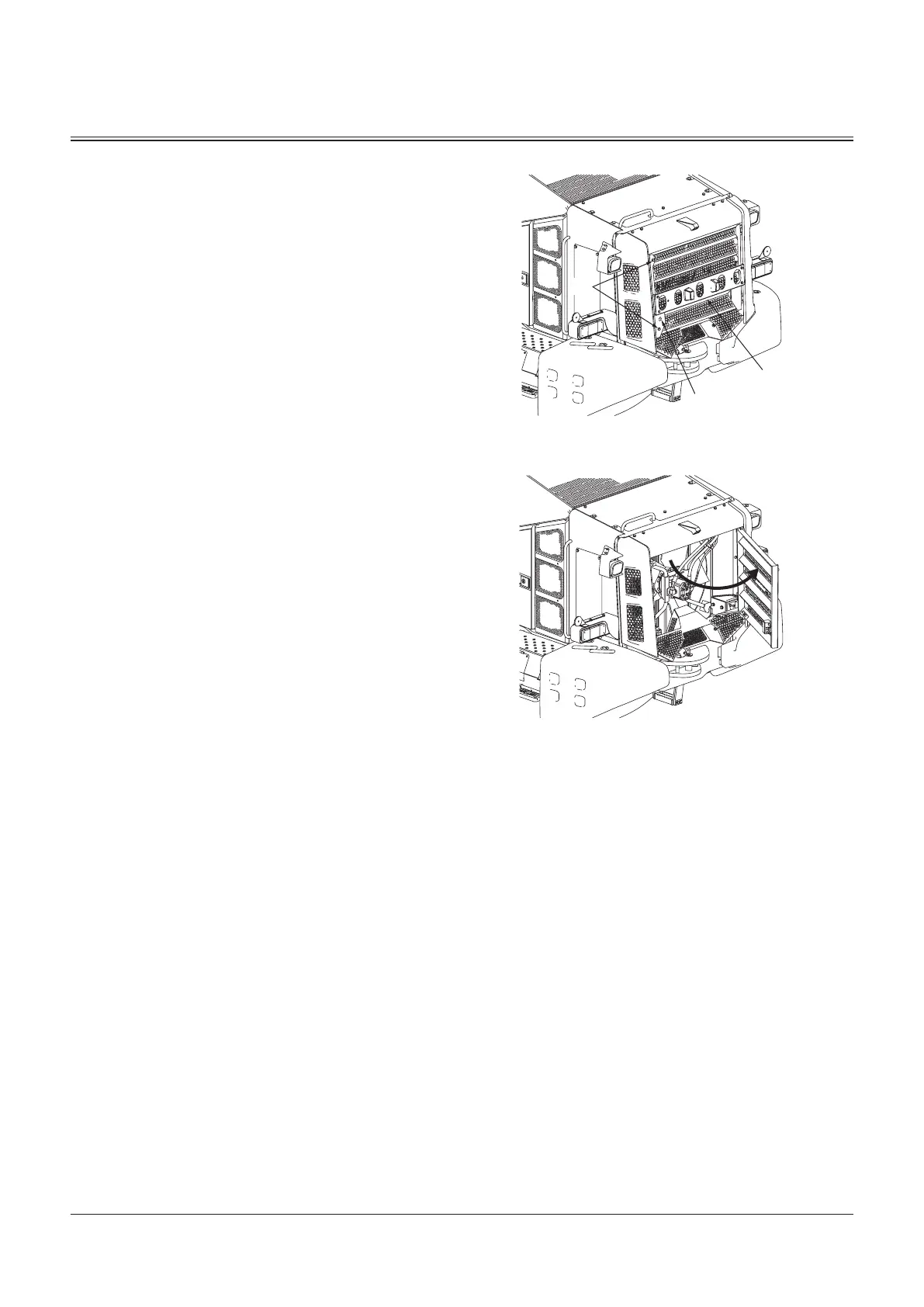

Opening the rear grille
Remove bolt caps (1) and bolts (2). Release latch (3) with the
key switch unlock rear grille (4).
The rear grille opens and the cooling fan can be cleaned.
Closing the rear grille
After closing rear grille (4), turn and remove key switch (3) to
lock rear grille (4). Tighten bolts (2) and install caps (1).
90Z7B-1-137-1EU
1
3
90Z7B-1-137-1EU
90Z7B-1-137-2EU
90Z7B-1-137-2EU
To Next Page
