Hitecsa ACHA 201 - Dimensions; Model 201; Models 251 - 271

12
IOM ACHA-ACHBA_201a1201_208000_180901_EN
ACHA / ACHBA
PACKAGED COMPACT
HORIZONTAL AIR - AIR
INSTALLATION

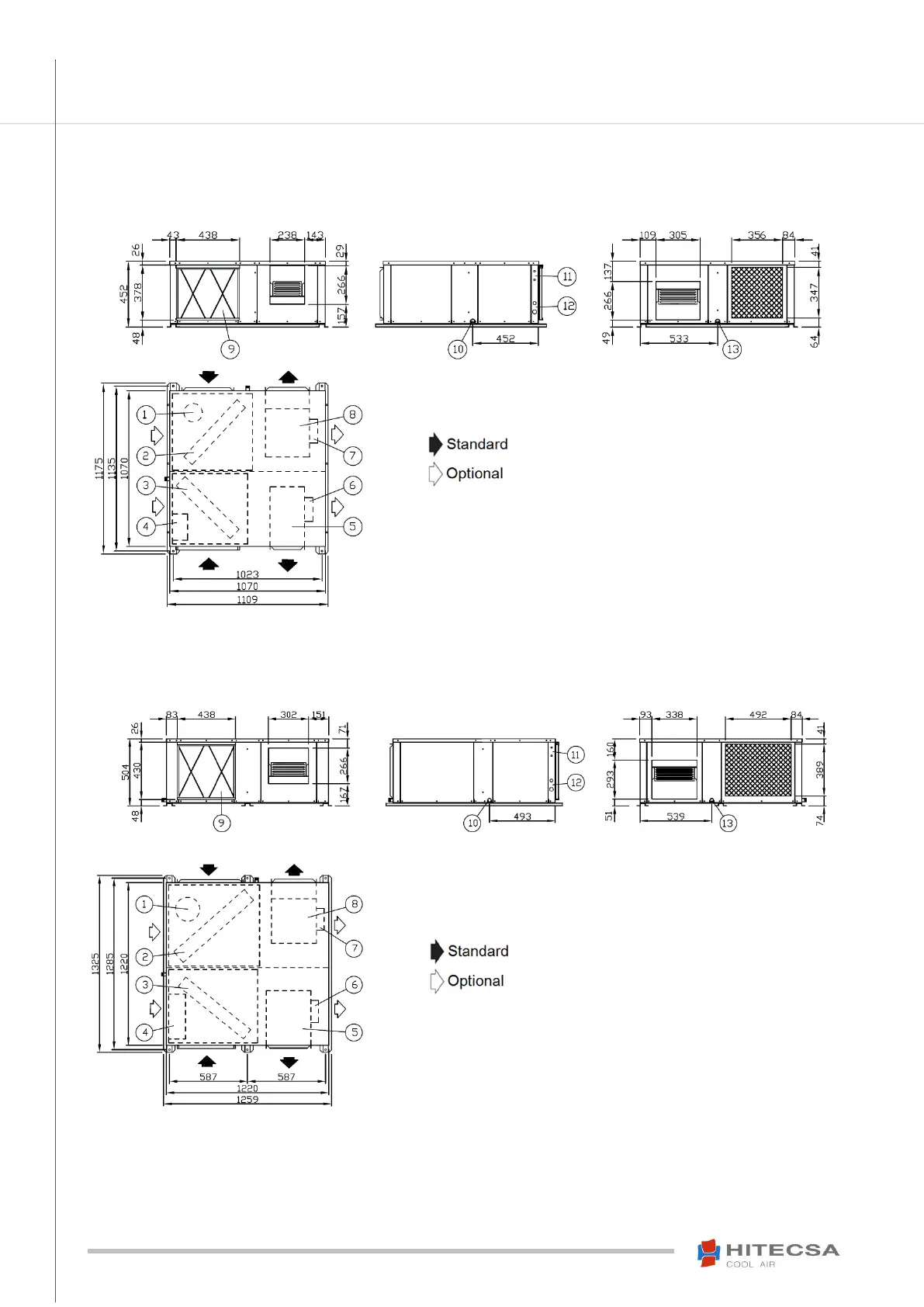

DIMENSIONS
Model 201
Models 251 – 271
LEGEND
1. Compressor
2. Outdoor heat exchanger
3. Indoor heat exchanger
4. Electrical panel
5. Indoor turbine
6. Motor indoor turbine
7. Motor outdoor turbine
8. Outdoor turbine
9. Air filter
10. Internal drainage Ø 3/4”
11. External pressure intake
12. Electrical supply input
13. Outdoor drainage Ø 3/4”
LEGEND
1. Compressor
2. Outdoor heat exchanger
3. Indoor heat exchanger
4. Electrical panel
5. Indoor turbine
6. Motor indoor turbine
7. Motor outdoor turbine
8. Outdoor turbine
9. Air filter
10. Internal drainage Ø 3/4”
11. External pressure intakes
12. Electrical supply input
13. Outdoor drainage Ø 3/4”
