OPERATING LIMITS
OUTDOOR AIR TEMPERATURE
INDOOR AIR TEMPERATURE
Dry temp.
Wet temp.
Dry temp.
Wet temp.
COOLING CYCLE
ºC
ºC
ºC
ºC
Standard conditions
35
--
27
19
Minimum conditions
20*
--
20
15
Maximum conditions
46
--
32
23
HEAT CYCLE
ºC
ºC
ºC
ºC
Standard conditions (test)
7
6
20
--
Minimum conditions
-6
-7
10
--
Maximum conditions
24
18
26
--
* It is necessary to use the optional condensation control for temperatures lower than 20ºC.
Units can operate at a maximum altitude of 1500 meters above mean sea level with a loss of performance of less than 3%.

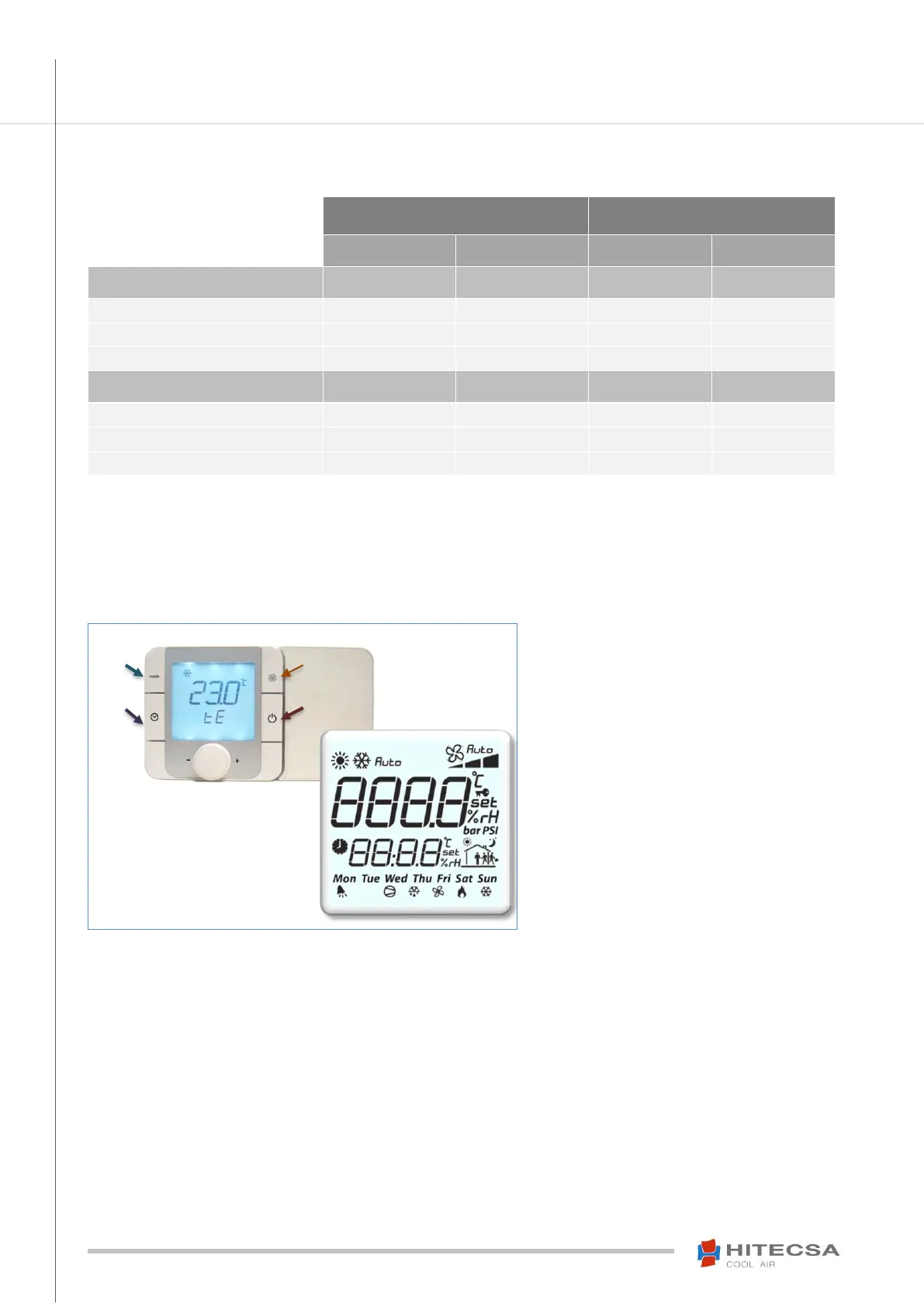

TH TUNE CONTROL
Screen:
- LCD backlighted display.
- Two alphanumeric strings of 4
characters.
- Complete set of symbols to obtain all
the information about the operation
simultaneously in the same display.
- Central multifunctional button: turn
to move through the menus or
increase/decrease a value and
press to introduce or select.
Start / Stop
Press and hold the (On / Off) button for two seconds to turn the thermostat on or off. The word "OFF" will be shown on
the thermostat display when it is off.
NOTE: In the thermostat "OFFd" will be displayed if the remote On-Off contact is open.
Temperature Adjustment
 Adjust the SETPOINT temperature by turning the center button.
Calibration of the probe of indoor temperature of Th-Tune
Apply a correction value, positive or negative, that it will be added to the value of the probe. A value equal to zero will not change the
value of the probe.
A. Press keys FAN + ON/OFF and keep pressed until it requires a password.
 Accede with password “22”, press for validation. Turn the central button up to the option PCAL and select.
 Turn the central button to modify the correction value and press for validation.
Mode
Reloj
Fan
On /Off
