Chapter 2 LAK Series Controller User's Guide
1. Product Specification and Operation Environment
1. LAK2LR Series:
1.1 LAK2LR can combine uniaxial linear actuator with external limit switch.
1.2 The output power of a controller is 108VA (The output voltage is 24VDC.).
1.3 Fuse specification：2A/20mm(220/230VAC)，
3A/20mm(100/110VAC).
2. LAK2 Series:
2.1 LAK2 can combine uniaxial or bi-axial linear actuators. For the sake of safety, two actuators can't be
operated simultaneously. Don't press the “△” key and “▽” key at the sam e tim e.
2.2 The output power of a controller is 108VA (The output voltage is 24VDC.).
2.3 LAK2 can be driven by DC (12VDC / 24VDC), which the output power depends on the maximum power
of power supply.
2.4 Fuse specification：2A/20mm(220/230VAC)，
3A/20mm(100/110VAC)，
15A/20mm(12VAC).
3. LAK2 Series（UL）:
3.1 LAK2 can combine uniaxial or bi-axial linear actuators. For the sake of safety, two actuators can't be
operated simultaneously. Don't press the “△” key and “▽” key at the sam e tim e.
3.2 The output power of a controller is Max.144VA.
3.3 The input power is 100~240VAC.
3.4 Over current A:2.5A, B:3A, C:4A, D:5A, E:6A

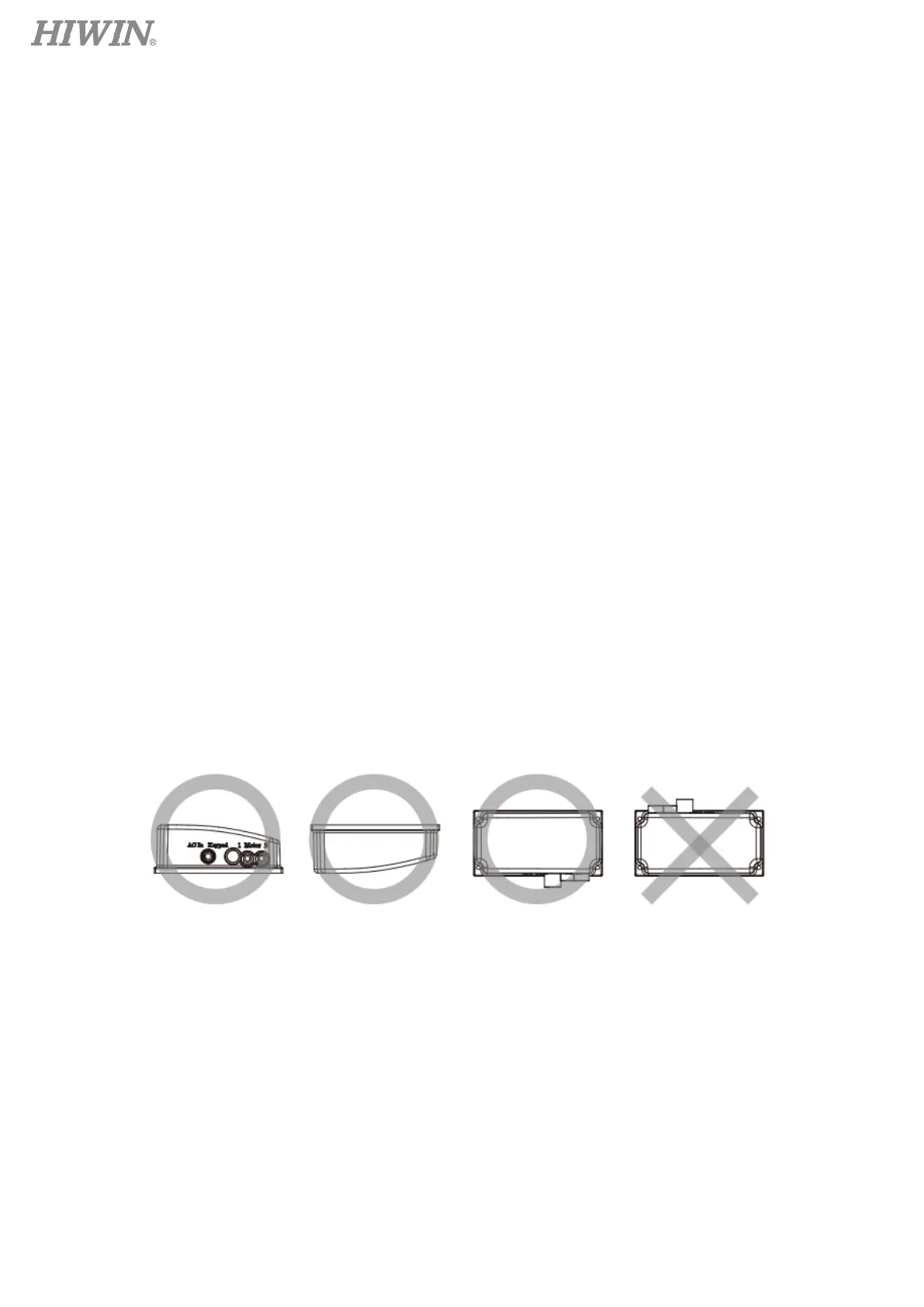

3.5 Recommended installation method：
4. LAK2BN Series:
4.1 LAK2B can combine uniaxial or bi-axial linear actuators, and provide an intelligent controller as well as
application software according to customer requirements.
4.2 The output power of a LAK2B controller is 144VA (The output voltage is 24VDC.).
4.3 1.3Ah or 2.9Ah lead acid batteries can be selected, built-in auto charge circuit without an external charger.
4.4 Fuse specification：2A/20mm(220/230VAC)，
3A/20mm(100/110VAC)，
10A/20mm(Battery).
4.5 Note: Please charge battery for at least 8 hours before initial use.
