11
4. Linear Actuator with Quick-Release User’s Guide
4.1 LAN3A Series:
4.1.1 To avoid mistake touching, please put up warning notice on the mechanisms or lifters.

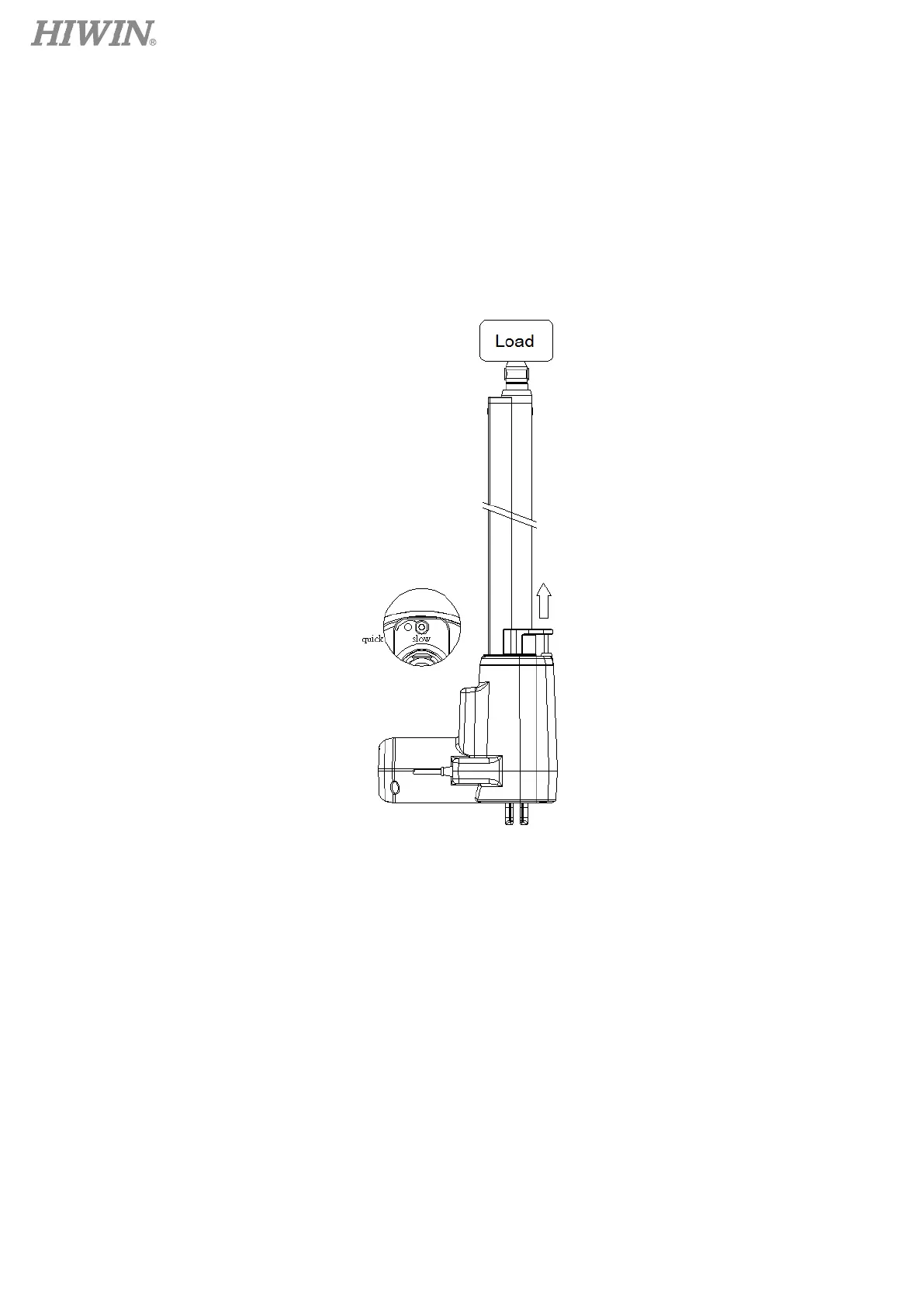

4.1.2 The way to active quick-release is pulling the handle as the following drawing.
4.1.3 When the speed of quick-release is too fast, please adjust the handle extending length immediately;
The screw beside the handle can adjust and limit the max. extending length of the handle.
4.1.4 The quick-release function for LAN3A series can only be used in vertical pushing force condition, it
may inactive in pulling force or slopping force.
4.2 LAN5 Series:
4.2.1 Be sure the release cable is normal extended without any crooked when assembling, and the
end of wire is certainty fixed on the mechanisms or hospital beds.
4.2.2 To avoid mistake touching, please put up warning notice on the mechanism or facilities.
4.2.3 The way to active quick-release is pulling the handle and let the wire extend as the following
drawing.
4.2.4 Please lift the load temporary before active quick-release function, thus can pull the wire out
and separate the clutch mechanism.
4.2.5 Be sure to keep the clutch separated and restore the load on actuator, and the load can extend
and retract along axis direction.
To Next Page
