MA99UE17-1804
20
3. Installation Guide
Note: Don`t connect main power cord before completely connecting the whole system.

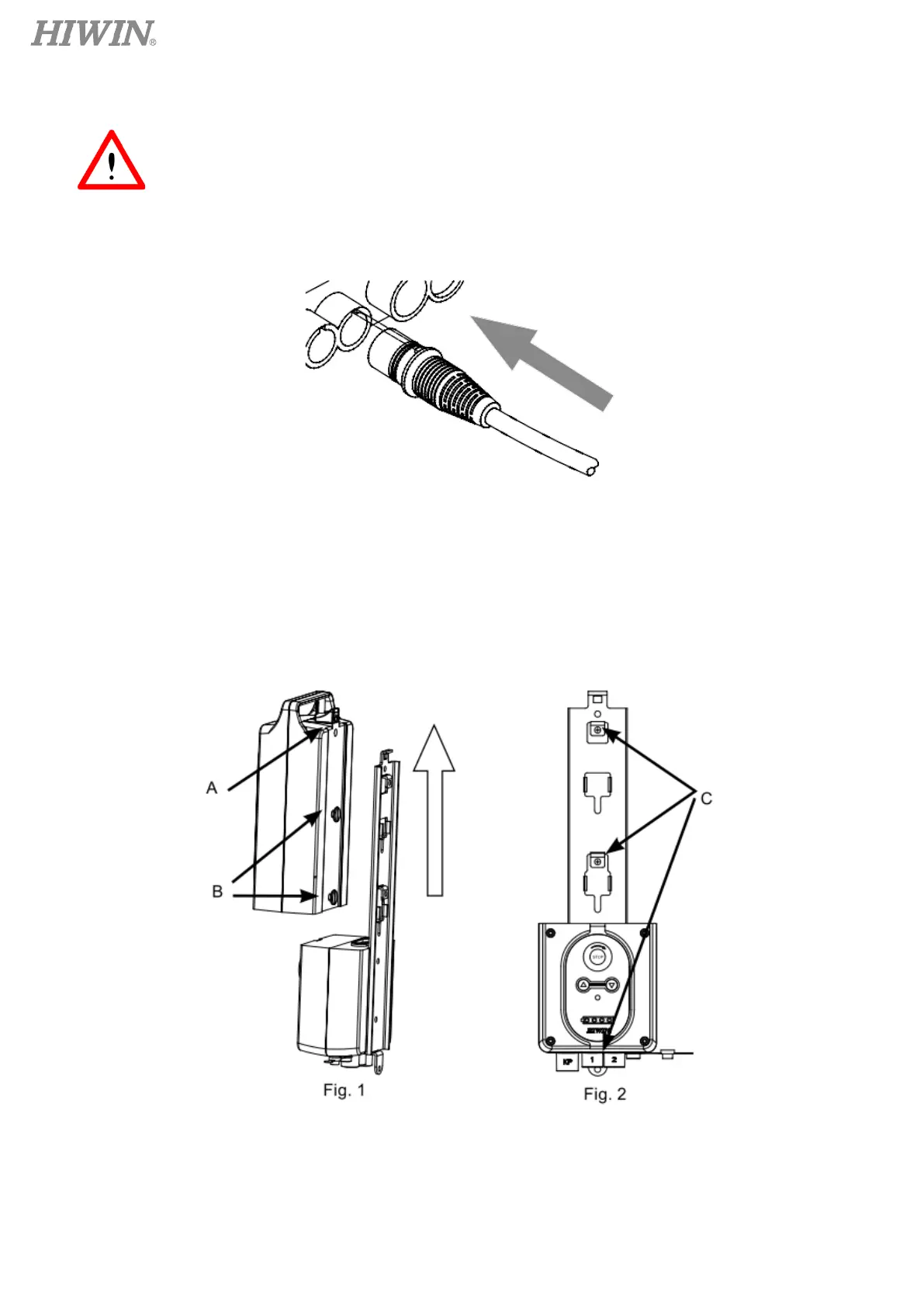

1. Installation of Linear Actuator and Controller Connector: When inserting an actuator connector to a controller
chassis, please ensure a connector bolt aligns with a housing notch to insert. Push a connector into the bottom
of a chassis until it is sure no gap between a connector and housing to ensure the IP class of the whole
system (The installations of key box and controller are the same as above- mentioned.).
2. LAK2J Installation:
2.1 Step 1:
2.1.1 Before assembling, please ensure the EMERGENCY switch is pressed during the whole assembly.
2.1.2 Push the slider and uplift’ the battery box (A), and loosen the screw (B)*2.
2.1.3 Lightly lift a cover of battery box so that can be separated from a support and control box (Fig. 1).
2.1.4 Install a support on the position, and fix on C point by screws (Fig. 2).
