10
2.7 The entire installation is finished only if steps 2.1 to 2.6 are executed successfully.
2.8 HIWIN Mikrosystem Corp. cannot take any responsibility for any injuries and/or damages caused as a
result of not complying with the clauses of this section.
3. Note:
3.1 Don't use this product to make current transient inversion. If you try to backwardly move the present
extension tube that forwardly moves, you must stop the motor and apply the reverse current to make
backward movement. On the contrary, if you want the extension tube backward moved to forward, the
way to supply current will be the same as mentioned above.

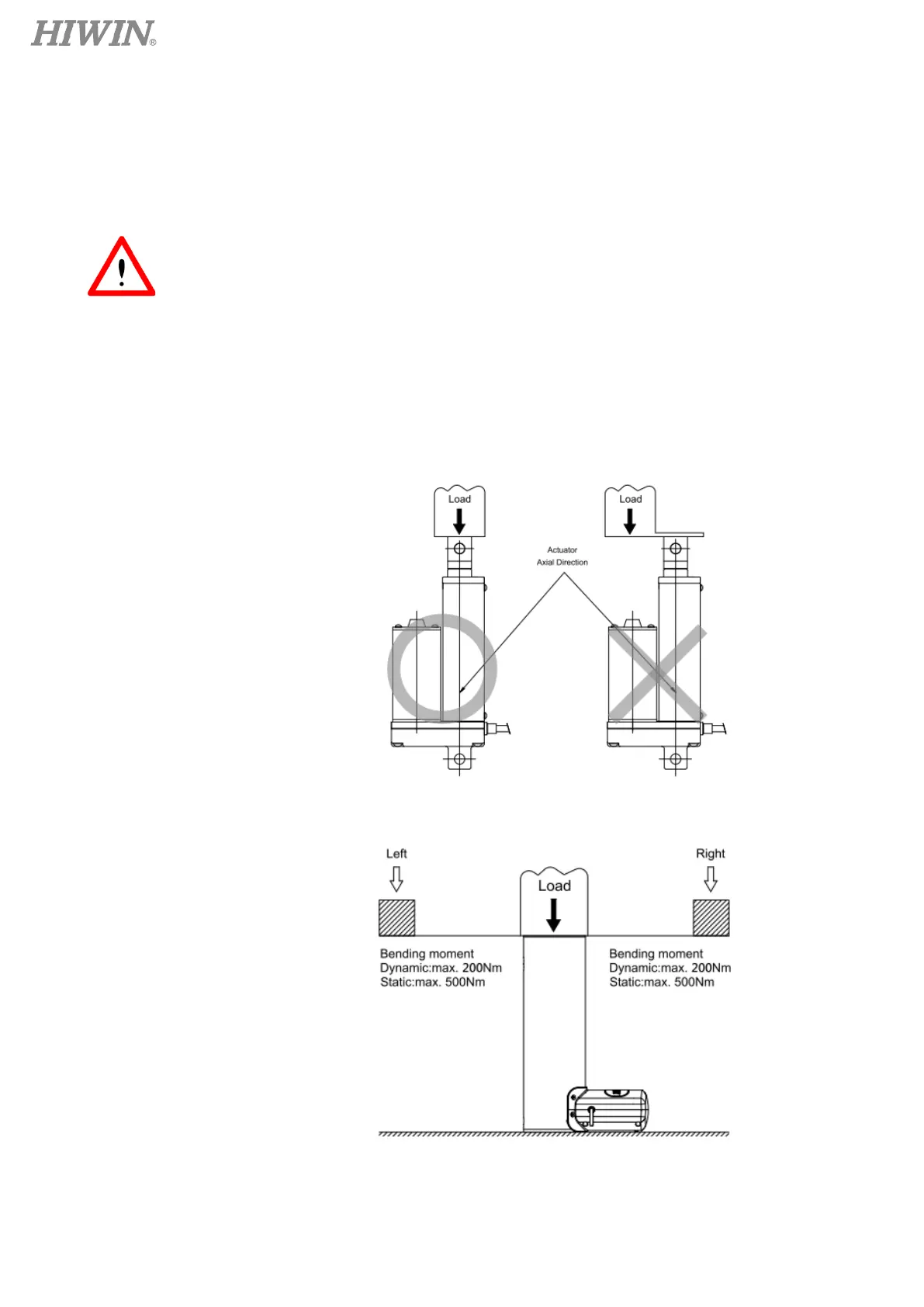

3.2 Don't use this product with a radial load (Please refer to figures and tables below.) because an actuator
more appropriately applies to take the axial load. If there is product damage, accident or personal injury
caused by improper load, we will not take any legal responsibility.
3.2.1 LA Series
3.2.2 LAC1 Series
3.3 For fixing the extension tube in this actuator on one guding mechanism, please refer to the installation guide.
If it is not fixed on any mechanism, it could idle.
