3. Technical Information

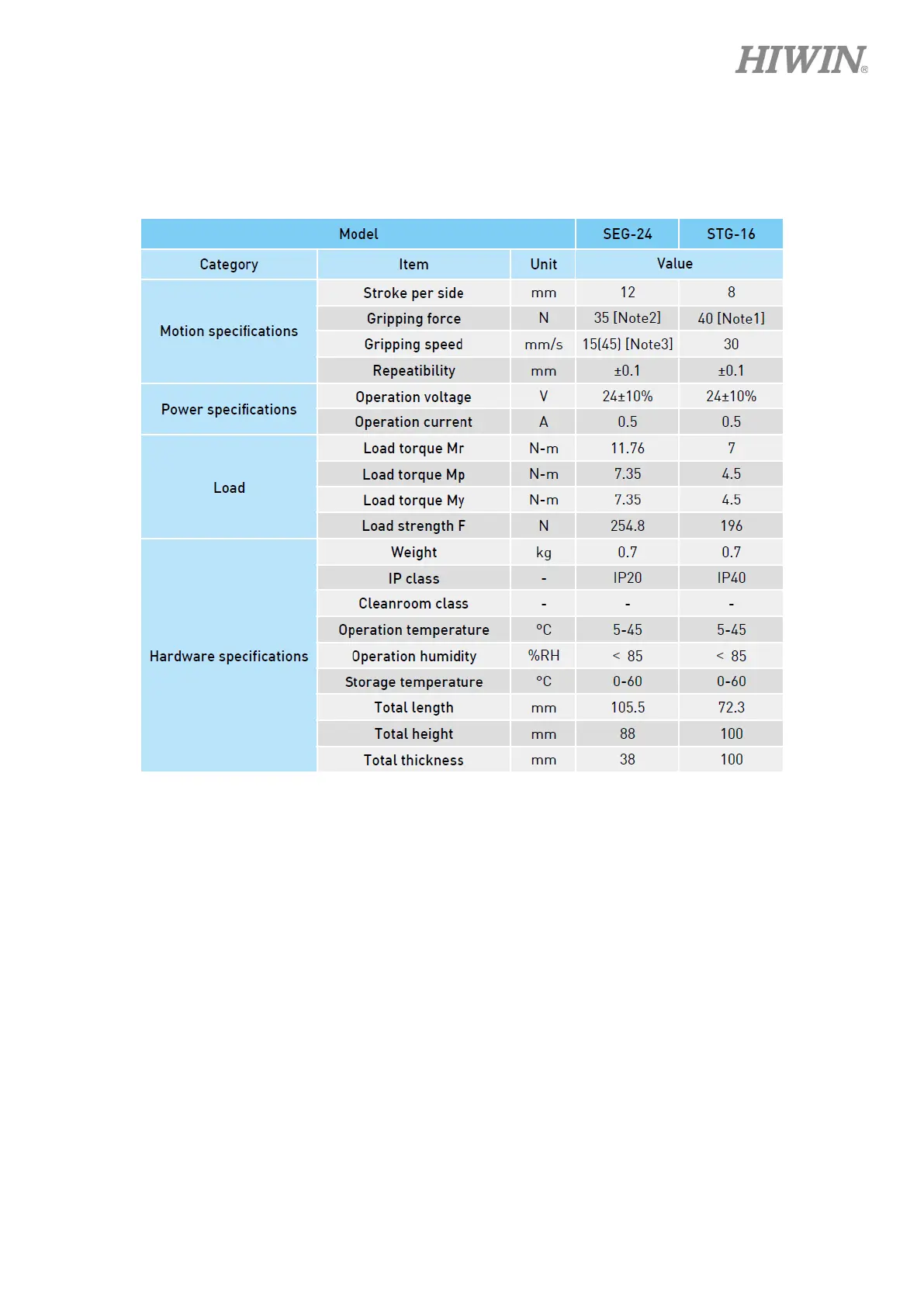

3.1. Integrated parallel electric gripper S-series
[Note 1] This gripping force is measured at a gripping point (L) of 20mm with a gripping force accuracy of ±25%.
[Note 2] This gripping force is measured at a gripping point (L) of 20mm with a gripping force accuracy of ±30%.
[Note 3] Moving velocity is 45mm/s.
[Description 1] Gripping force is recommended to be 10 to 20 times the weight of gripped object.
[Description 2] High-speed movement or rotation after gripping requires the weight of object to be reduced.
[Description 3] Material, shape, grip area, etc. of gripping part will affect the maximum weight of gripped object, and the gripping
part required to be installed before gripping.
