HQ Series Quarter-turn Electric Actuator
Installation Operation& Maintenance Manual
Doc No. : HumG-HQ-21 Rev2 Page 17 / 26 Valve Automation Leader, HKC
No
Error type
(Malfunction)
LED display
Red Blue Green Yellow
1 Input signal initialization error Off Off Off On
2 Reverse turn the motor Off Off On Off
3 Auto setting initialization error Off Off On On
4 EEPROM error Off On Off Off
5 Input signal error Off On Off On
6 Open position error Off On On Off
7 Close position error Off On On On
8 Command signal selector switch error On Off Off Off
9 Limit switch error On Off Off On
10 Torque switch trip On Off On Off
----------- 21 Rev2]

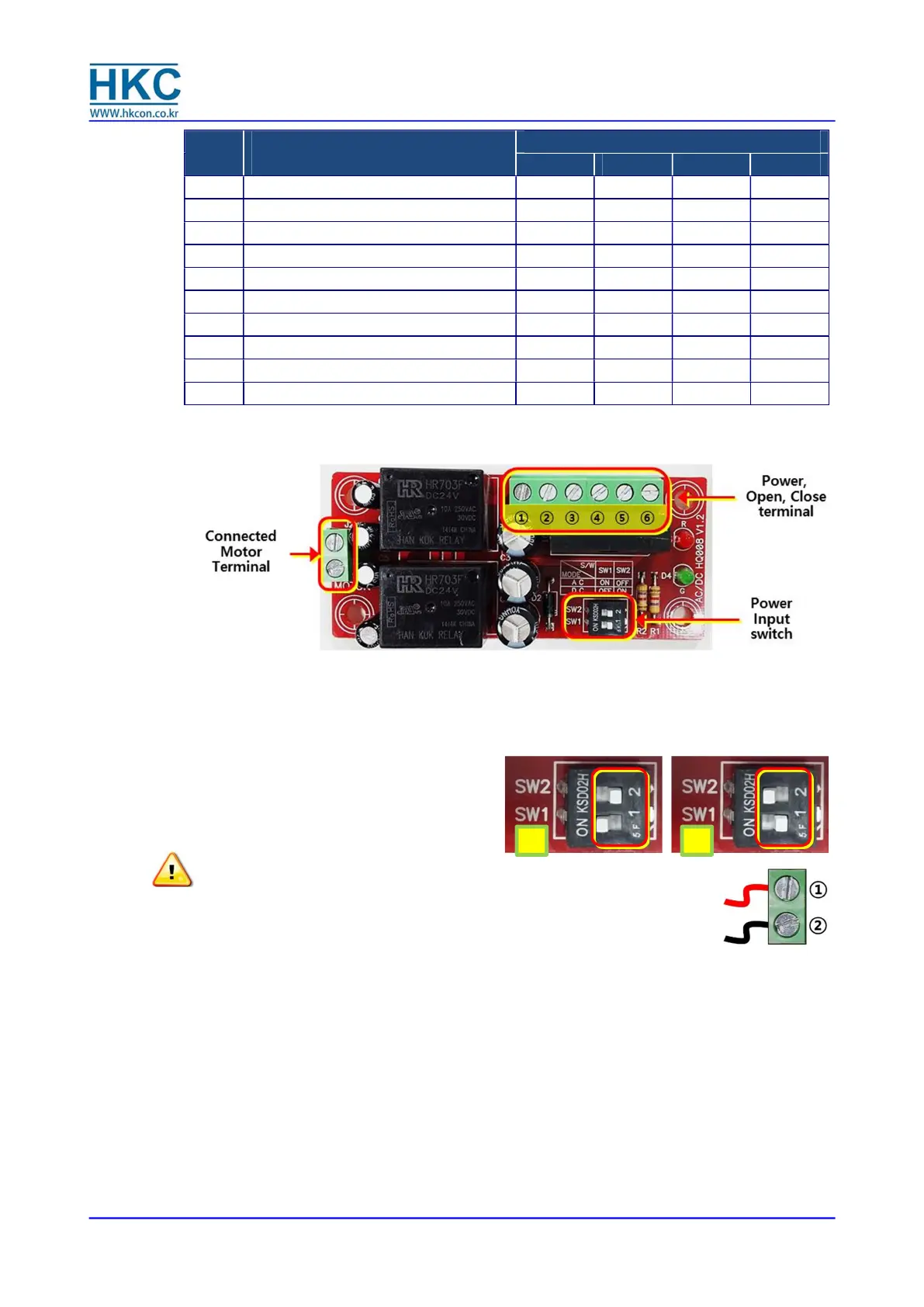

4.10. [ac/dc Multi-board --- 16 Rev1]
4.10.1. Power, Open and Close terminal
① Power 24V ac/dc (dc + signal block)
② None
③ None
④ Open signal
⑤ Close signal
⑥ Power 24V ac/dc (dc – signal block)
4.10.2. [Chooses for Power input switch
① As using for ac mode,
#1 switch on, #2 switch off
② As using for dc mode,
#1 switch off, #2 switch on --16 Rev1]
NOTE: Don’t turn on both switch #1 and #2 at the same time that become a
reason of damage of the board
③ [Motor terminal block
Red wire of motor to connect #1
Black wire of motor to connect #2 --- 16 Rev1]
5. [Apply for optional communication protocol
5.1. ProfiBus Controller (PBC)
5.1.1. ProfiBus Controller is to provide multiple functions of communication by using 8 bit microprocessor
and Profibus Controller.
5.1.2. Generate long-life contacts to operate actuator in direct or reverse with semiconductor device for
open and close by using data from remote controller.
5.1.3. Provide the user actuator status information to confirm if Profibus is working correctly as the user
want.
5.1.4. Max. transmission speed is 12Mbit/sec
5.1.5. Easy to switch between PCU type and ON-OFF type.
5.1.6. Provide System Redundancy by using dual port and high reliability
5.1.7. LED lamps provide the status of actuator.
5.1.8. Application
To Next Page
