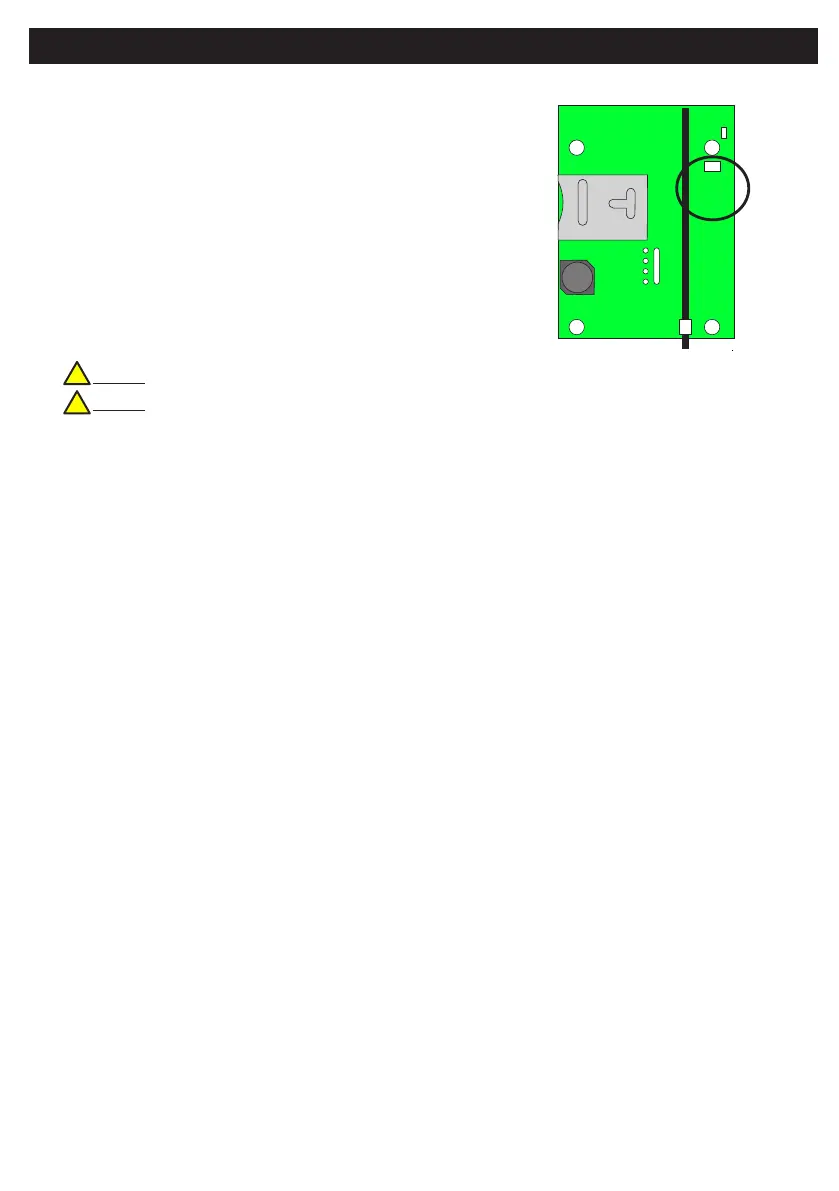

GSM Status LED

Idle State:

3 Short Red Flashes = Not registered to GSM network

1 Green Flash = 20% GSM Signal Strength

Active State:

Orange during active state then at end...

Green Flash = GOOD (i.e kiss-off)

Red Flash = BAD (No kiss-off or other fail reason)

Disabled State:

RED on constant

Note1: To save power, LED light level is deliberately low

2 Green Flashes = 40% GSM Signal Strength

.. .. .. .. .. .. .. ..

5 Green Flashes = 100% GSM Signal Strength

Note2: COMMS LED flashes in unison with serial port data on panel

SIM Holder

COMMS

GSM

STATUS

Default Eng. Code - 4567 Default User Code - 1111 (Irl) 1234 (UK)
