Default Eng. Code - 4567 Default User Code - 1111 (Irl) 1234 (UK)
Menu Navigation - Using Menu Keys
This section illustrates how to move around the menu structure in the SW-1070 control

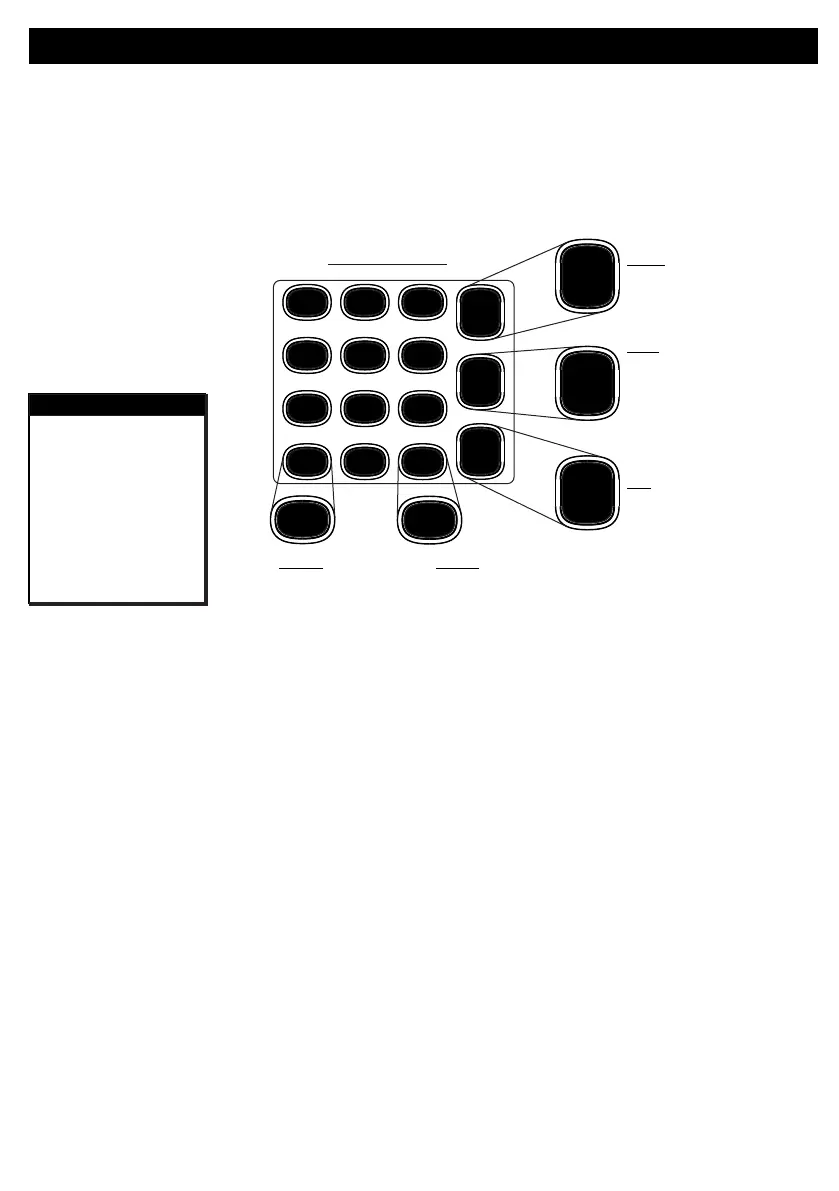

panel. There are five menu keys used for menu navigation. The following diagram
describes their functions...
The next two pages contain the main areas of the programming menu...
When typing in zone
descriptions etc. the
cursor will move on to
the next letter after a
short period; just like
mobile phone texting.
QUIT
Used to exit a menu.
YES
Used to enter a menu.
Also used to enable an
option.
NO
Used to disable an
option.
NEXT
Used to move to the
NEXT item in a menu.
Used to move to the
PREVIOUS item in a menu.
PREV
MENU KEYS
1
txt
4
ghi
7
pqrs
prev
PLAY
REC
LIGHT
QUIT
YES
NO
*
2
abc
5
jkl
8
tuv
0
[
3
def
6
mno
9
wxyz
#
next
PLAY
QUIT
REC
YES
LIGHT
NO
prev
*
#
next
1 1 $ · ! % & * ( )
2 a b c A B C 2 + =
3 d e f D E F 3 ; ?
4 g h i G H I 4 < >
5 j k l J K L 5 ` /
6 m n o M N O 6 - =
7 p q r s P Q R S 7
8 t u v T U V 8 + =
9 w x y z W X Y Z 9
0 space . , ' : - 0 @ #
CHARACTER SET
Key-in 4567 to access the Engineer Mode. This will need to be validated with a User
Code. To do this, key-in a valid User Code i.e. 1111 (or 1234 in the UK). You are now in
the Service Menu.
