HKC SW-1070 Installation Manual

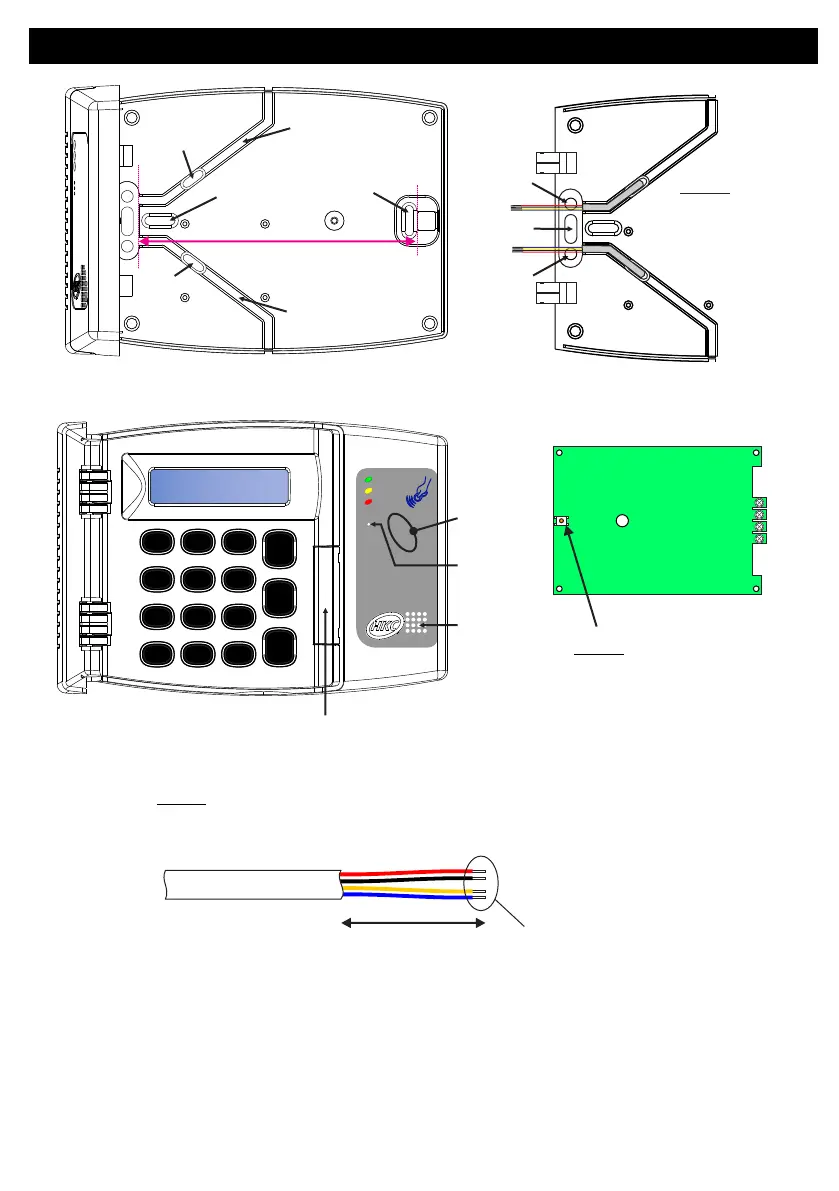

NOTE: When preparing the cable for the keypad,
we recommend that the outer sheath be stripped
back by 100 - 130mm approx. This will allow the
keypad cover to open fully.
Also, strip back
about 5mm
from each core.
100mm - 130mm
Power
Fault
Alarm
Complies with
EN 50131 Grade 2 Class II
1
txt
4
ghi
7
pqrs
prev
PLAY
REC
LIGHT
QUIT
YES
NO
*
2
abc
5
jkl
8
tuv
0
[
3
def
6
mno
9
wxyz
#
next
Microphone
Zone for
prox tags
(RKPX only)
Speaker
Lid Screw
(behind flap)
LCD Display
Mounting
Hole
Not for
cable entry
Not for
cable entry
Not for
cable entry
To help strip-back sheath,
this is 130mm approx.
Mounting
Hole
Cable inlets
Cable inlets
Cable
Channel
Cable
Channel
NOTE: The RKP’s
tamper switch is
located here.
NOTE:
Preferred
routes for
cable
management
System Hardware: Remote Keypad
Default Eng. Code - 4567 Default User Code - 1111 (Irl) 1234 (UK)
