−9−

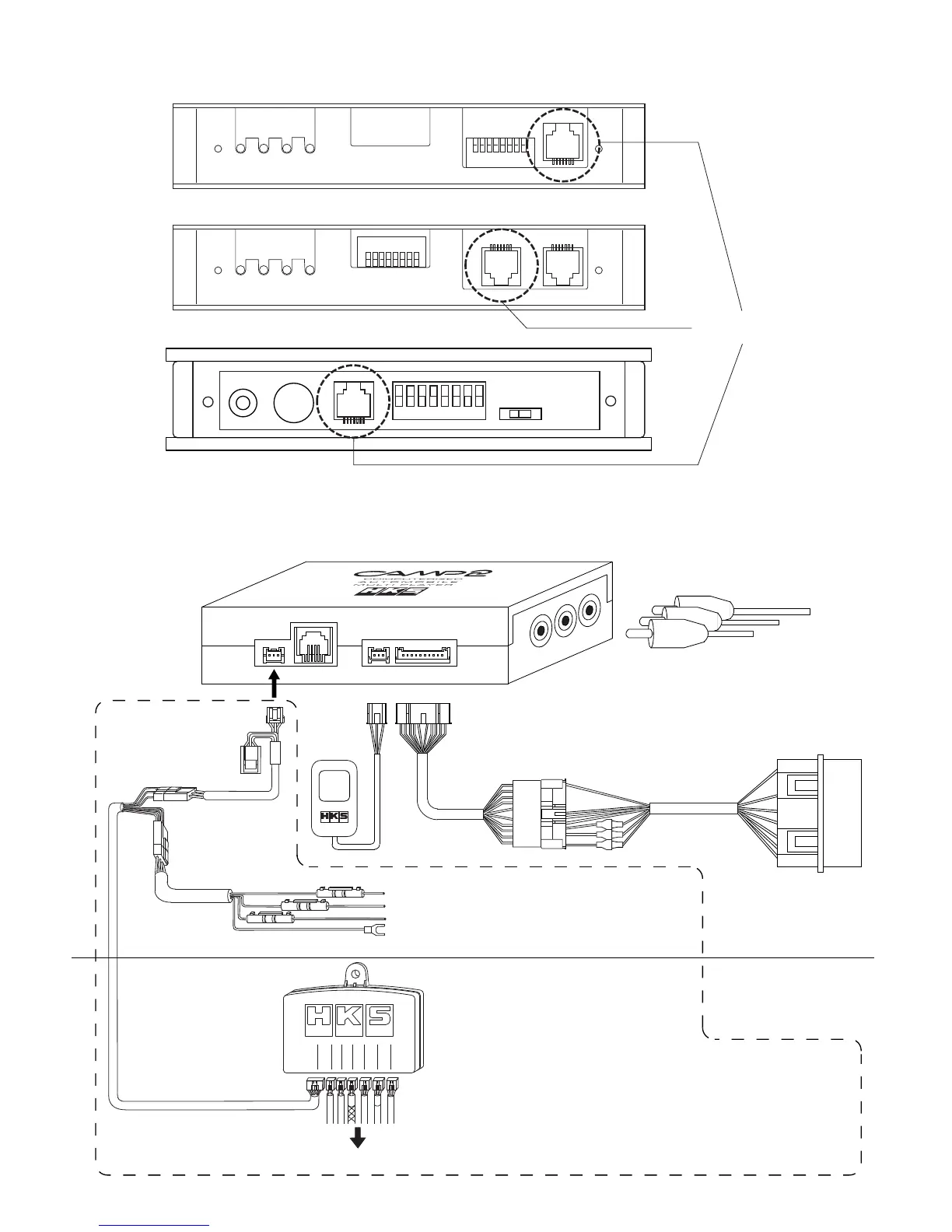

Option Port
・F-CON S/SZ/SA
・F-CON Vpro
・F-CON iS
・F-CON Option Port List (The port locations vary depending on the type of F-CON.)
●I/F Unit Wiring
MAIN
HARNESS
WATER TEMP
OIL TEMP
EXT.TEMP
OIL PRESS
BOOST
& VACUUM
FUEL PRESS
I/F Unit
Main Harness
Power Supply
Harness
Meter Harness
#1
White
Orange
Red
Black
Connect sensor harnesses.
(Engine Room)
(Interior)
※If the meter harness #1 length is
too short to reach CAMP2, use the
optional meter harness #3(1.0m) to
connect CAMP2 and the meter
harness #1.
: To Constant Power Supply wire
: To IG wire
: To illumination wire
: Body ground
To Next Page
