−7−
INSTALLATION
(1) Disconnect the negative terminal from the battery.
1.Disconnecting the Battery Terminal

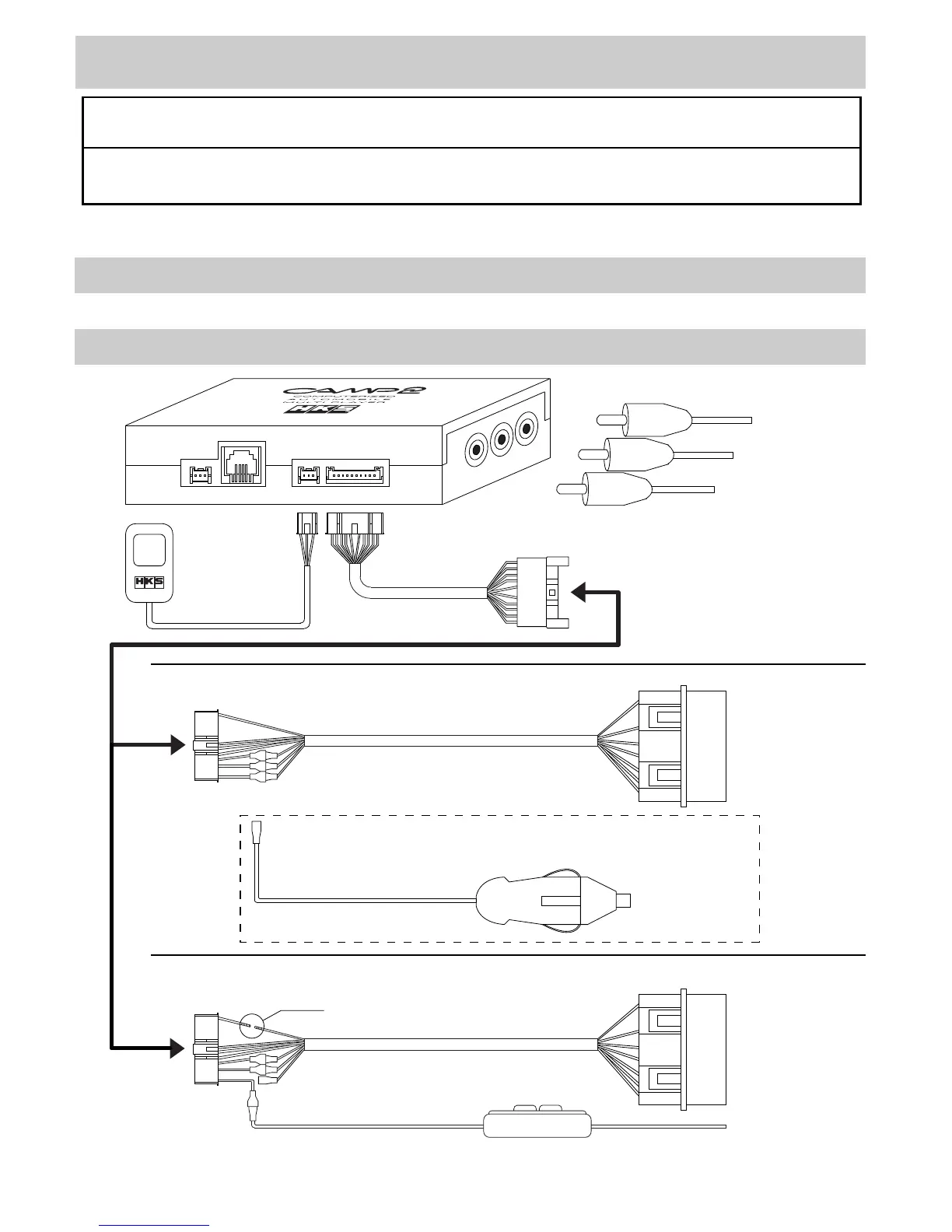

2.Wiring
Warning
To the vehicle's
on-board monitor.
AV Cable
OBD2 Harness
Power Socket
Harness
*For non Nissan vehicle, connect the White/Black wire of the
power socket harness to the pink wire of the OBD2 harness.
To the power
socket.
CAMP2
Main Unit
White Connector
Red Connector
White/Black Wire
To the vehicle's
OBD2 connector.
Splice to the
ignition wire.
Yellow Wire
Pink Wire
Power Supply
Harness
OBD2 Harness
BMW
Standard
Vehicle
●This manual shows a typical installation. Actual installation may vary depending on
the vehicle application.
●This product is for vehicles that operate on a DC12V negative ground. Do not install
onto any vehicle operates on a DC24V; it may cause a fire.
Connect the OBD2 Cable.
Remote
Controller
Receiver
Relay
Harness
To the vehicle's
OBD2 connector.
・For BMW vehicles, wiring of the OBD2 harness should be conducted as shown below.
For BMW, cut & insulate this wire.
(See the section 4 in next page.)
*Connect the yellow wire of the power supply harness to
the pink wire of the OBD2 harness.
To Next Page
