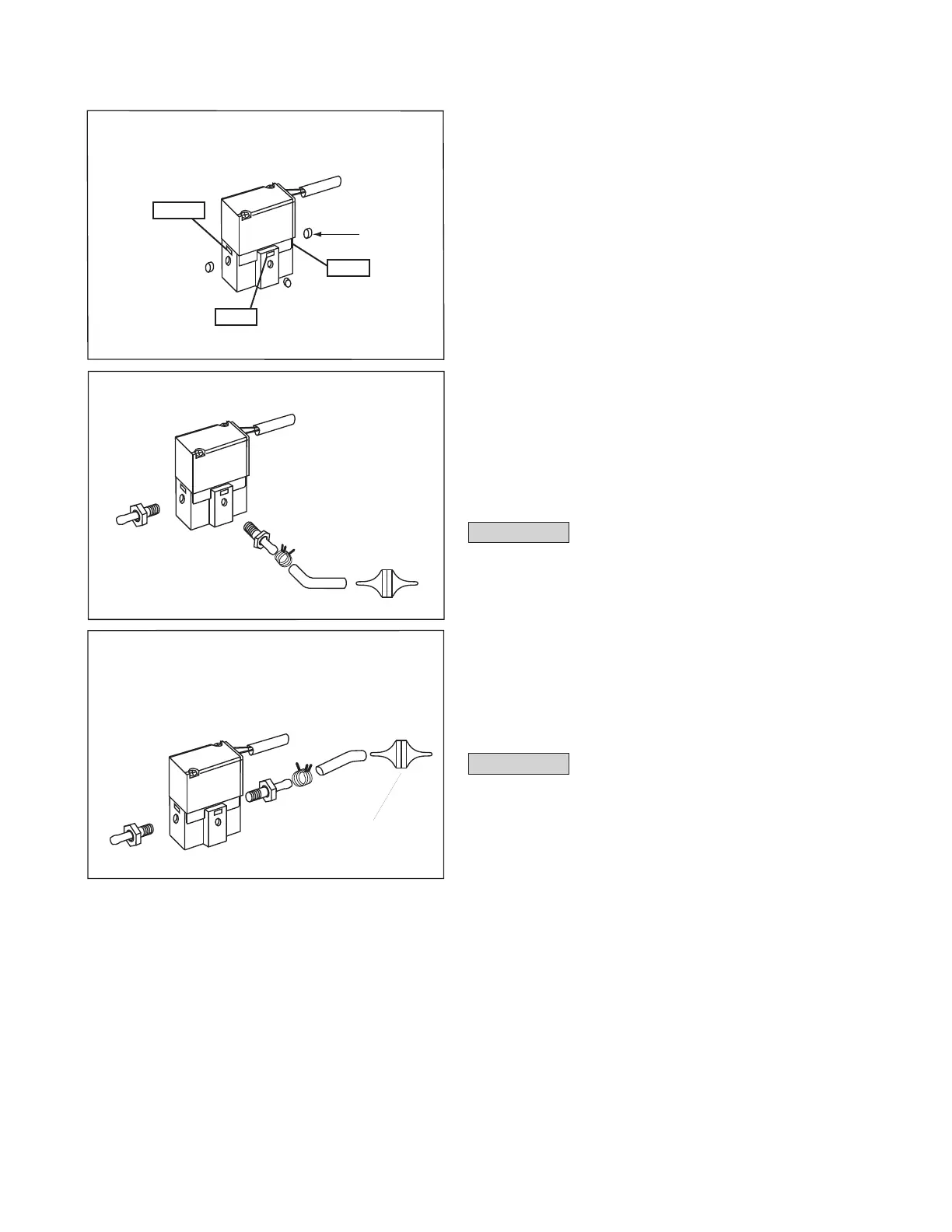

2-2. Connecting the Solenoid Valve
Swing Valve Type
(2) Install the Fittings to the COM terminal and NO
terminal.
(3) Cut the 6mm Hose to 5cm in length, and connect
the cut hose to the Fitting on the NO terminal
and the 6mm Vacuum Filter.
Swing Valve Type
(1) Remove the caps on the COM terminal,
NO terminal, and NC terminal.
Poppet Valve Type
(2) Install the Fittings to the COM terminal and NC
terminal.
(3) Cut the 6mm Hose to 5cm in length, and connect
the cut hose to the 6mm Vacuum Filter.
Poppet Valve Type
6mm Hose (5cm)
6mm Vacuum Filter
6mm Hose (5cm)
6mm Vacuum Filter
㧯㧻㧹
㧺㧻
㧺㧯
Hose Clamp
Hose Clamp
Cap
NOTE
Use a hose clamp to connect the hose to the
fitting.
Remove any oil and/or lubricants on or in the
hose and vacuum filter.
NOTE
Use a hose clamp to connect the hose to the
fitting.
Remove any oil and/or lubricants on or in the
hose and vacuum filter.
(4) Refer to 2-4 to connect to the vehicle.
