㧙㧙

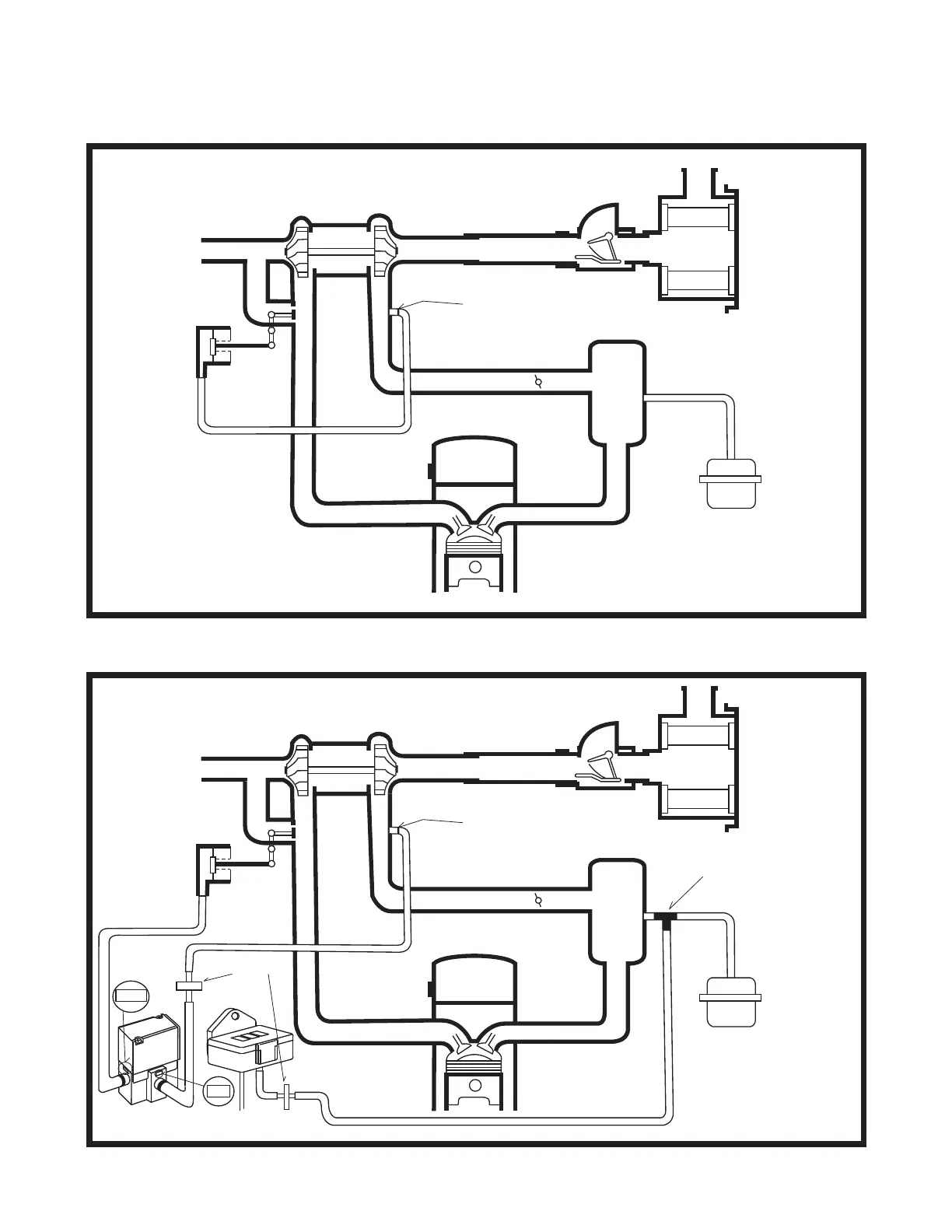

2-3. Installing the Boost Sensor and Solenoid Valve to Swing Valve Type
Before Installation (Factory Connection Layout)
After Installation
Turbine
Actuator
Airflow Meter
Air Cleaner
Fitting Ԙ
6mm Hose
Throttle Valve
Surge
Tank
Fuel Regulator
2-3.1 For Applications without a Boost Pressure Control Solenoid Valve
Turbine
Actuator
Compressor
Airflow Meter
Air Cleaner
Fitting Ԙ
6mm Hose
Throttle Valve
Surge
Tank
Fuel Regulator
4mm Hose
4-4-4mm T-fitting
6mm Hose
Vacuum Filter
Valve
01
%1/
Remove the cap on
the NC terminal. (Ref.2-2)
Compressor
