Hose Clamp
Hose Clamp
Hose Clamp
Hose Clamp
Fitting Ԙ
Fitting Ԙ
Actuator
Solenoid Valve
6mm Vacuum Filter
6mm Hose
Factory Hose
NOTE
Remove any oil and/or lubricants on or in the hose and vacuum filter.
Use hose clamps when connecting the 6mm Hose to the 6mm fittings.
Depending on the vehicle, the factory hose may not be long enough to connect from the actuator
to the Solenoid Valve. If so, additional 6mm Hose can be purchased as an optional part.

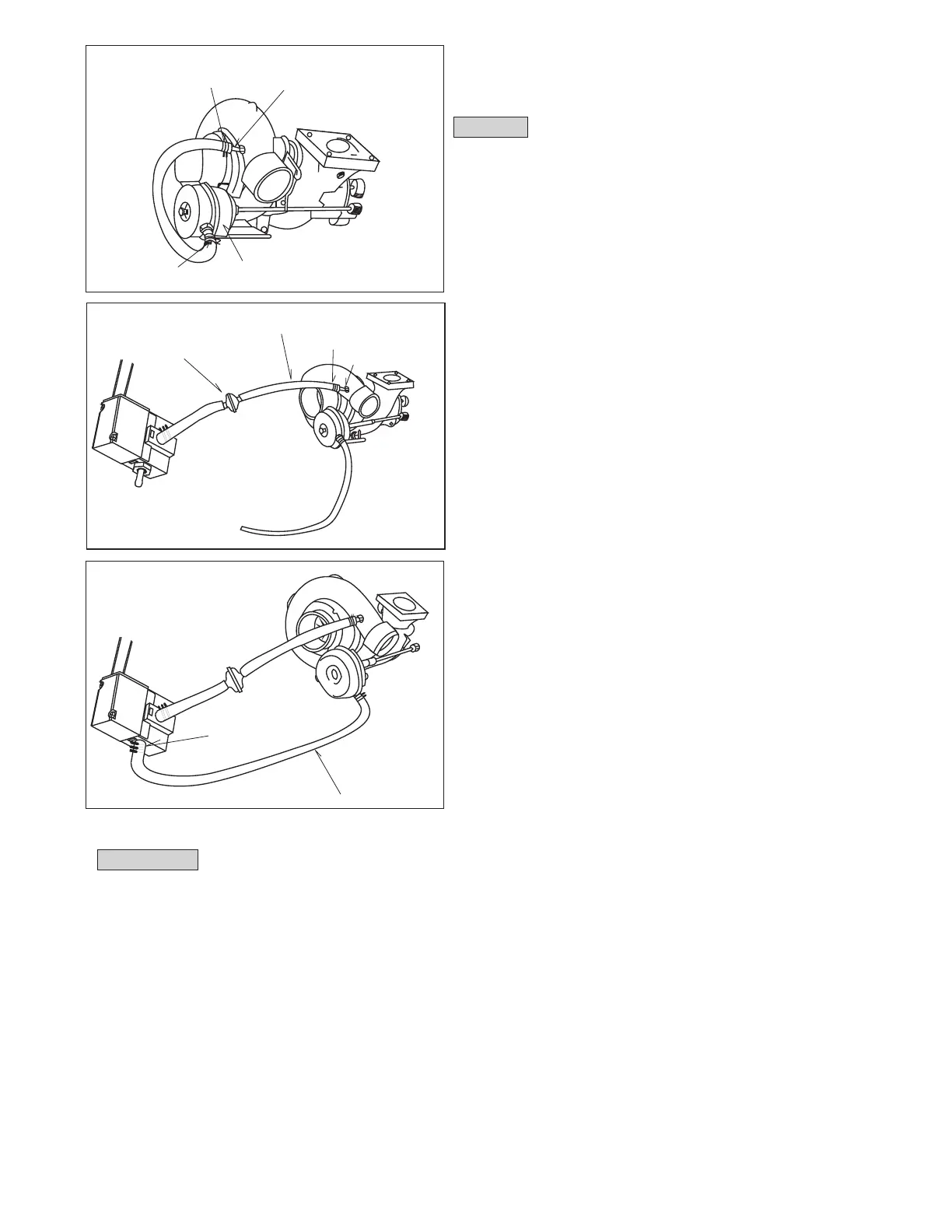

(3) Connect the factory hose from the actuator to the
fitting on the COM terminal of the Solenoid Valve.
(2) Connect the provided 6mm Hose to fitting Ԙ and
the 6mm Vacuum Filter on the NO terminal of the
Solenoid Valve.
(1) Disconnect the hose connected to the actuator from
fitting Ԙon the compressor side.
NOTE
The position on the compressor side fitting Ԙ may
vary depending on the vehicle.
Keep the removed factory hose clamp for later use.
To Next Page
