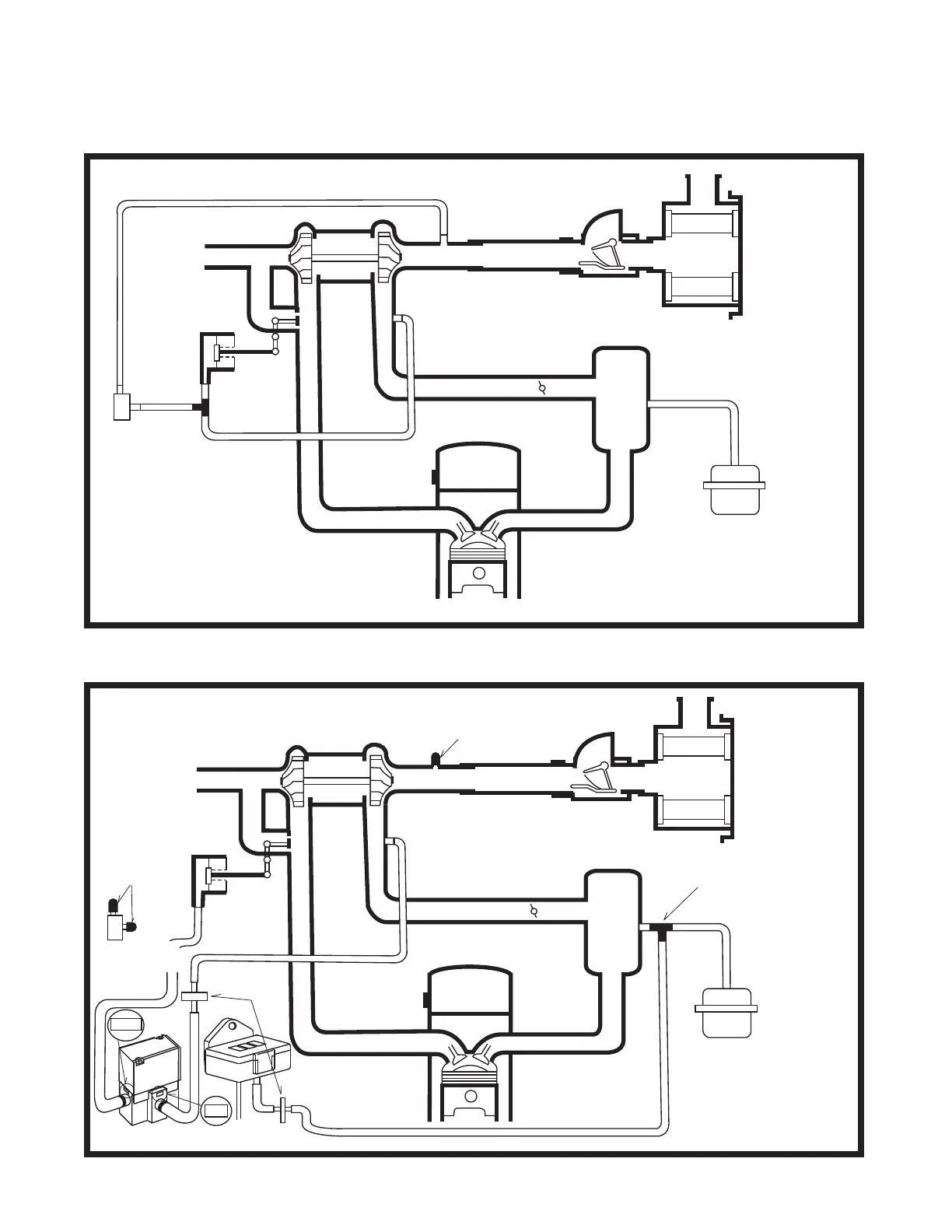

Before Installation (Factory Connection Layout)
After Installation
2-3.3 For Applications with a Boost Pressure Control Solenoid Valve 2
6mm Hose
Turbine
Actuator
Boost Control
Solenoid Valve
Compressor
Airflow Meter
Throttle Valve
Air Cleaner
Surge
Tank
Fuel Regulator
6mm Hose
4mm Hose
4-4-4mm T-fitting
6mm Hose
Turbine
Actuator
Compressor
Airflow Meter
Throttle Valve
Air Cleaner
Surge
Tank
Fuel Regulator
Rubber Cap
Rubber Cap
Valve
٨For vehicles equipped with a boost pressure control solenoid valve, disconnect the connector
and hose to deactivate the function.
Vacuum
Filter
%1/
01
Remove the cap on the
NC terminal. (Ref.2-2)
Boost Control
Solenoid Valve
