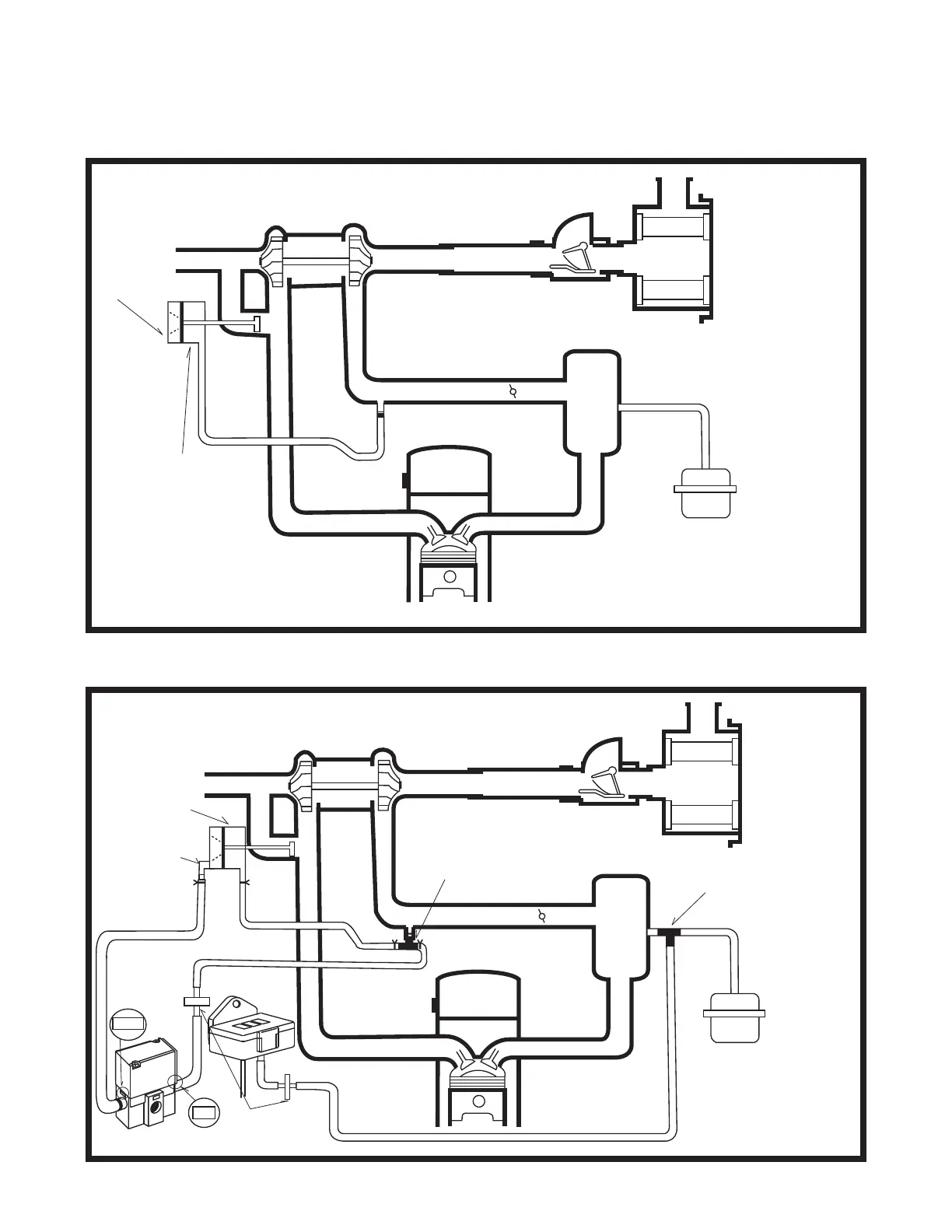

2-4. Installing the Boost Sensor and Solenoid Valve to Poppet Valve Type
Before Installation
After Installation
8mm Hose
Turbine
Compressor
Airflow Meter
Throttle Valve
Air Cleaner
Surge
Tank
Fuel Regulator
6mm Hose
6mm Hose
4mm Hose
4-4-4mm T-fitting
6mm Hose
Turbine
Compressor
Airflow Meter
Throttle Valve
Air Cleaner
Surge
Tank
Fuel Regulator
6-8-6mm T-fitting
Upper Port
Wastegate
Wastegate
Install the fitting
to upper port
㧔Straight or L-shaped㧕
A Poppet Valve Hose Set is required for this installation and is available seperately.
Vacuum Filter
Valve
%1/
0%
Remove the cap on the
NC terminal. (Ref.2-2)
