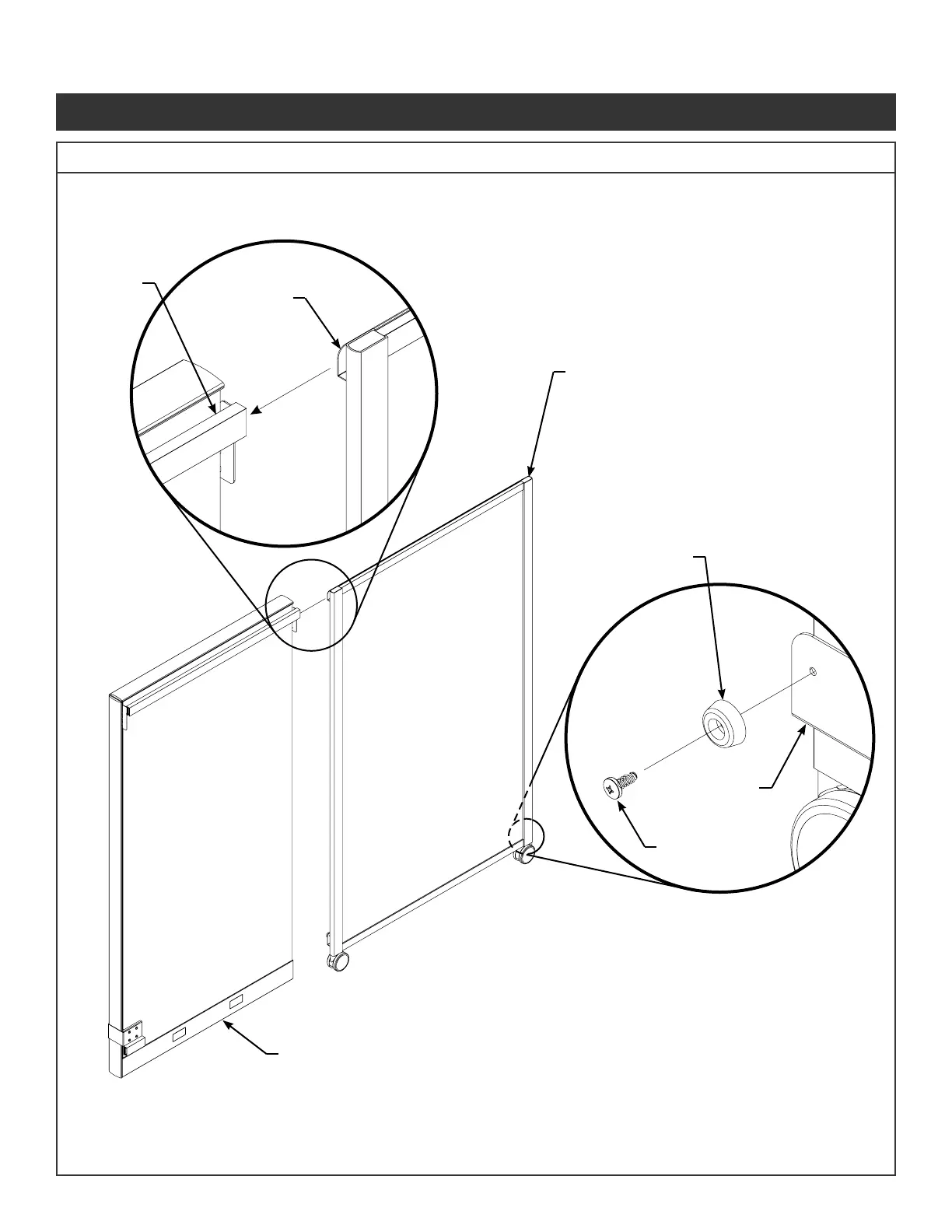

Illustration 7: Install Rear Door Stop and Attach Sliding Door to Top Track Assembly
Rubber stop - at rear of door, attach
rubber stop to door lower track blade
with screw provided
.
Sliding door - insert door upper track
blade into upper track assembly
.
important - install rear door stop before
attaching sliding door to upper door track
.
#10 flat head thread
cutting screw
Upper track
assembly
Upper track
blade
Lower track
blade
Panel frame
Sliding Door Installation
Illustration 16. Sliding Door Installation Continued
Illustration 16g. Rear Door Stop and Sliding Door to Top Track Assembly
