HNI Panel System - 8-Wire Electrical Installation; General Electrical Configuration and Component Identification; Electrical Wiring Diagrams

Power harness (24”)
H871224
Notes - All electrical components
are UL Listed to UL1286
and UL183.
By pulling on terminal
housing at end of cable
assemblies, Power and
Pass-Thru harnesses can
be stretched up to 31/2”.
• Connect to previously installed cable.
• Stretch, as required, to proper position.
• Snap onto mounting bracket.
Power harness
(30”-60”) H8712XX
4 hot / 2 neutral / 2 ground systems:
color of terminal ends are black.
3 hot / 3 neutral / 2 ground systems:
color of terminal ends are rust.
Component Identication: Color of terminal ends and
receptacle backs are BLACK
Component Identication: Color of terminal ends and
receptacle backs are RUST.
Cradle to Cradle Certied CM Silver models will end with “C”
Pass-Thru harness (20”-60”)
H8711XX

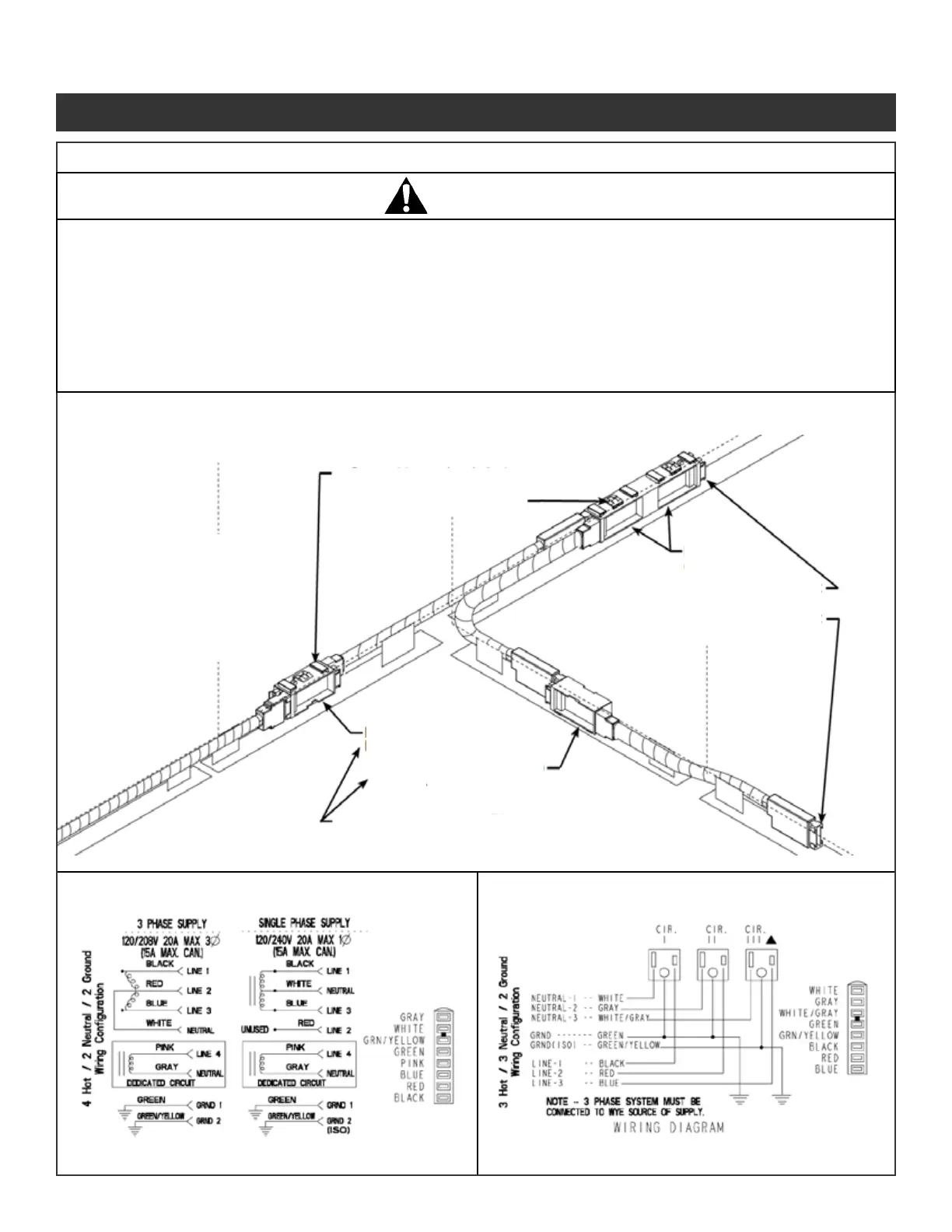

Illustration 11a. General Electrical Conguration and Component Identication:
Illustration 11b. Electrical Wiring Diagrams:
Illustration 11. 8-Wire Electrical Installation
Panel System Installation Packet
343-3890A
(03/17)
Page 11 of 27
Connection to a power source, by a licensed electrician, and quantity of receptacles used for a given circuit
must be in compliance with all national and local electrical codes. Connect a maximum of 13 receptacles (12 in
Canada, and fewer in certain U.S. locales) to one circuit. Consult applicable national and local electrical codes.
Disconnect electrical connections between panels prior to removal of a mechanical connection. Ensure that
the power supply is disconnected prior to disconnecting any electrical components.
When electrical components are interconnected from one panel to another, the panels must be mechanically
connected per the appropriate panel-to-panel installation instructions.
Failure to observe these warnings could result in a re or electrical shock.
WARNING
