HNI Panel System - Panel Door Installation; Connect Door Panel into 80 H Panel Run; Convert right hand to left hand orientation; Lower Threshold

Door panel - attach between either:
• Two 80” high panels with
standard panel connector kits.
• A wall starter and an 80” high
panel with standard panel
connector kits.
• A 80” connector post and an
80” high panel.
Factory Assembled as Right-Hand
Field Converted to Left-Hand
Remove screws from
Door Jamb and from
Door/Jamb Assembly
Door/Jamb
Assembly
Door Jamb
~
Rotate Door/Jamb Assembly
and Door Jamb, and reinstall
screws
Threshold
After door is installed and leveled,
loosen (do not remove) bottom screw
on each side of door frame. Push
threshold down until threshold rests on
floor. Re tighten screw.

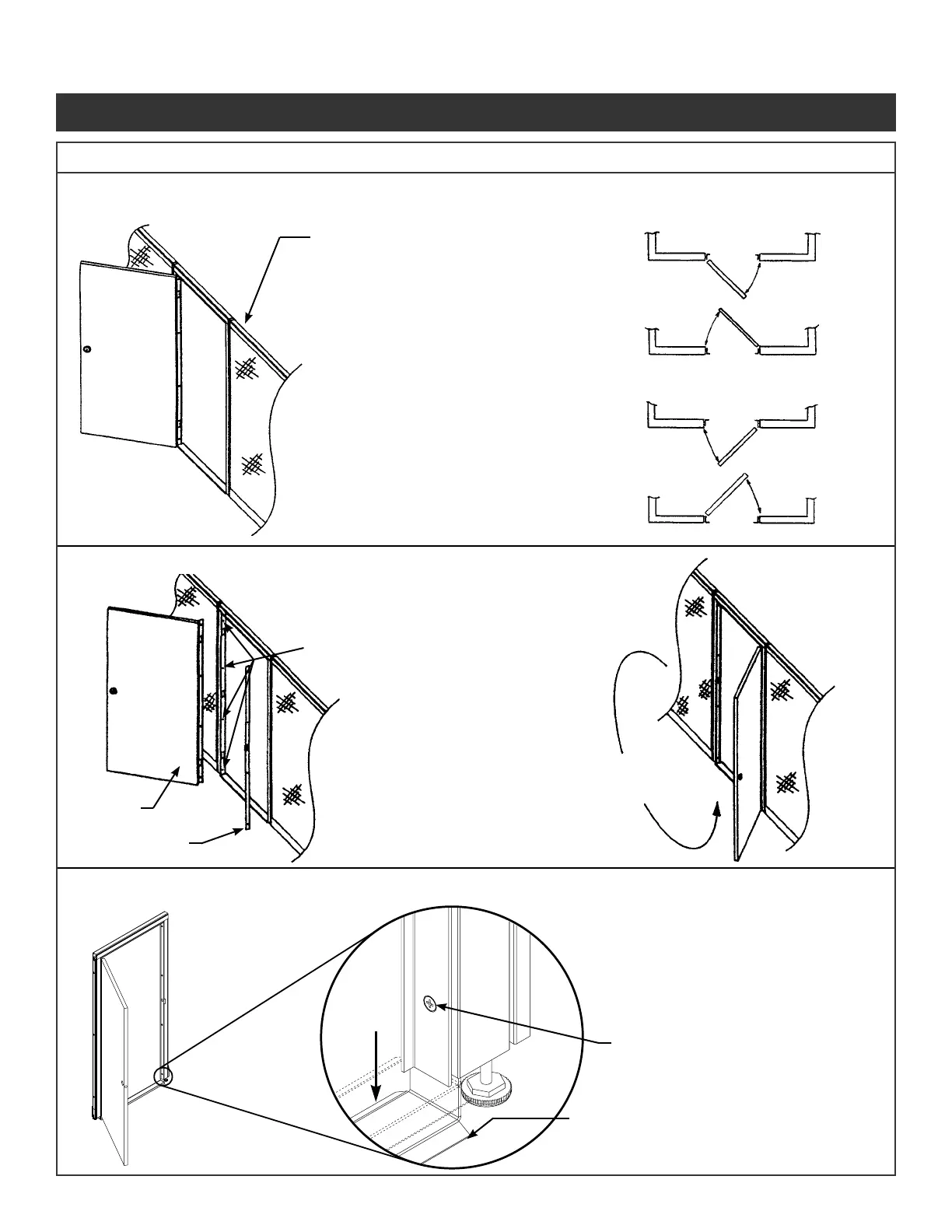

Illustration 17. Panel Door Installation
Illustration 17a. Connect Door Panel into 80”H Panel Run
Illustration 17c. Lower Threshold
Illustration 17b. Convert right hand to left hand orientation
Panel System Installation Packet
343-3890A
(03/17)
Page 27 of 27
