Hobart AM16 User Manual

– 13 –
Models Volts / Hz / Ph
Tank
Heat
Minimum Circuit Ampacity
Maximum Protective Device AMPS
TB1 TB2
Standard Single Point
Electrical Connection
Dishwasher and Booster
(3 Phase Only)
AM16-BAS, AM16T-BAS,
AM16VL-BAS, AM16VLT-BAS,
AM16-ASR, AM16T-ASR,
AM16VL- ADV, AM16VLT- ADV,
AM16 - SVLT
208 - 240 / 60 / 1 Electric 50 50
208 - 240 / 60 / 3 Electric 30 30 60
AM16-BAS, AM16T-BAS,
AM16VL-BAS, AM16VLT-BAS
480 / 60 / 3 Electric 15 15 30
AM16-BAS, AM16T-BAS
200 - 240 / 50 / 3 Electric 30 30 60
380 - 415 / 50 / 3 Electric 20 20 30
Standard Single Point
Electrical Connection with
4.3 KW Electric Booster
AM16-SCB, AM16VL-SCB 208 / 240 / 60 / 1 Electric 30 - 40 / 35 - 45
Compiled in accordance with the national electrical code, NFPA 70 (latest edition).
A fused disconnect switch or circuit breaker (customer supplied) must be installed in the
electrical service line(s) supplying this dishwasher and should meet the requirements of
your local electrical code.
All AM16 models, except for the AM16-SCB and AM16VL-SCB models, ship standard with
a 3-phase voltage supply and a single point electric conguration. The standard single
point electric supply connects to terminal block TB1 in the controls area (Fig. 9). The
machine must be grounded according to electrical code(s); a grounding lug is provided.
The AM16-SCB and AM16VL-SCB models ship standard with a single-phase voltage supply
and a single point electric conguration. The standard single point electric supply connects
to terminal block TB1 in the controls area (Fig. 9). The machine must be grounded according
to electrical code(s); a grounding lug is provided.

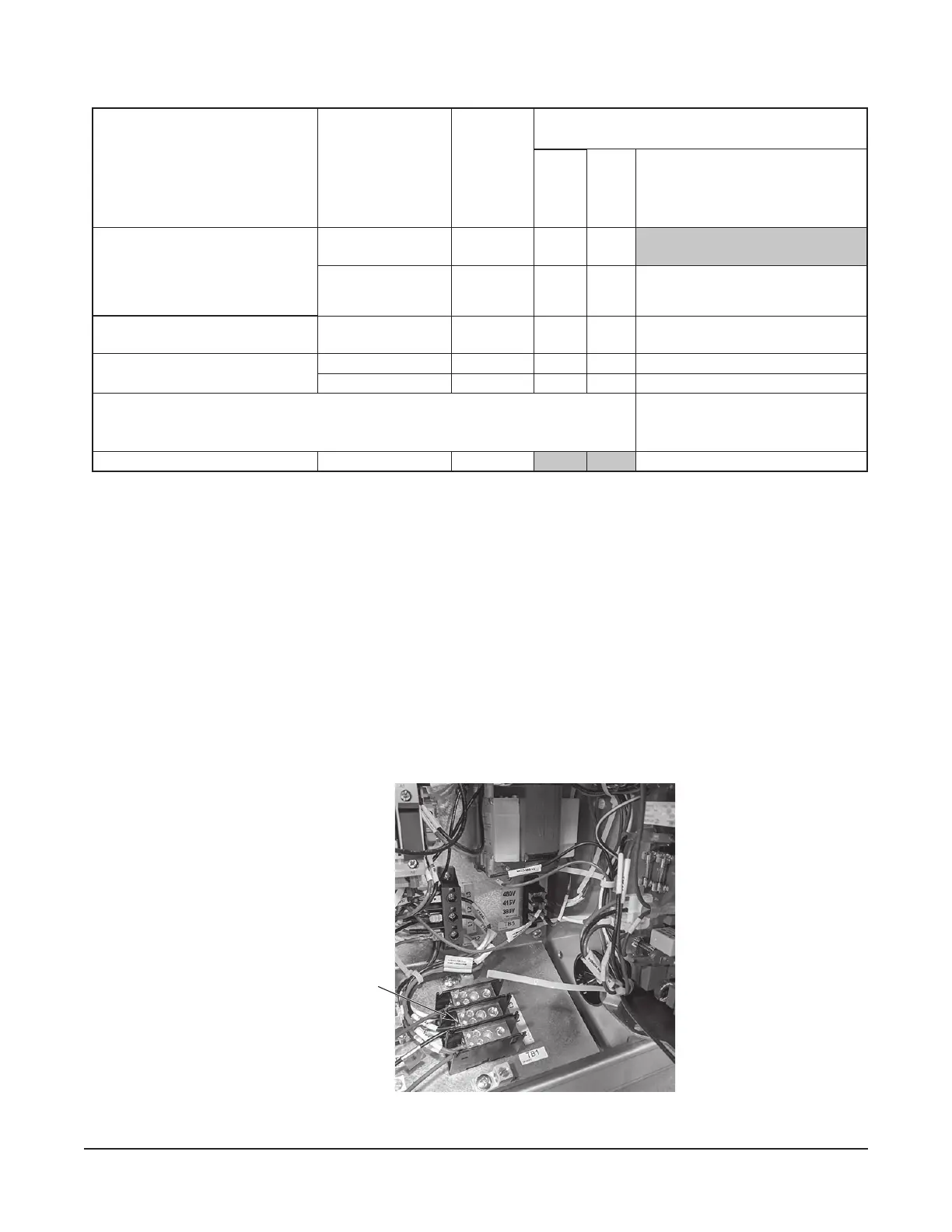

Fig. 9
TB1 TERMINAL
BLOCK
ELECTRICAL DATA

Hobart AM16 Specifications

General

Model	AM16
Category	Dishwasher
Type	Door Type
Energy Star	Yes
Motor Horsepower	1 HP
Phase	1 or 3
