– 12 –
PL-41059-1
REMOVE PLUG
TO CHECK OIL LEVEL
CONVEYOR MOTOR
GEAR CASE
PL-41060-1
DRAIN PLUG
MAINTENANCE
WARNING: DISCONNECT ELECTRICAL POWER SUPPLY AND PLACE A TAG AT THE
DISCONNECT SWITCH INDICATING THAT YOU ARE WORKING ON THE CIRCUIT BEFORE
PERFORMING ANY MAINTENANCE PROCEDURE.
LUBRICATION
A list of acceptable lubricants, as well as the lubricants themselves, are available from your local Hobart
Service Office.
Line Strainers
Line strainers used in water or steam lines should be cleaned one week after machine installation and
periodically thereafter.
Motors
All motors have sealed bearings and require no lubrication maintenance.
Conveyor Gearmotor
Check the oil level in the conveyor gearmotor at the unload end of the machine every six months by
removing the gear case plug (Fig. 31). The oil level should be at the bottom of the plug hole. The gear
case can be drained from the Drain Plug on the front side (Fig. 32). Use only Mobilgear # 630 to
replenish or replace.

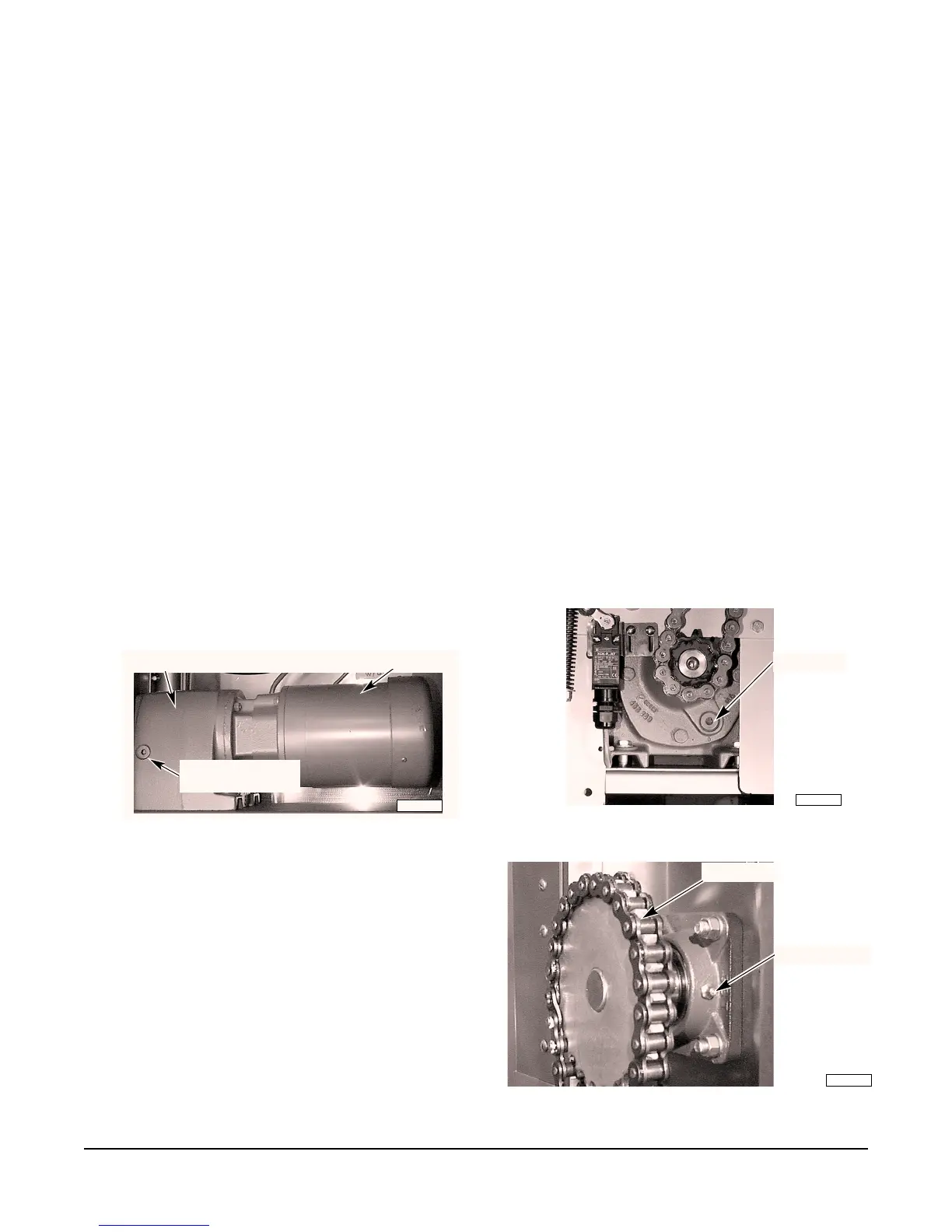

Fig. 31 Fig. 32
Conveyor Drive Chain
Inspect the drive chain (Fig. 33) regularly and
lubricate as required with Grafo Concentrate A
(supplied).
Conveyor Sprocket Bearings
Located at the loading and unloading ends, these
bearings should be lubricated every four months.
Grease fittings (Fig. 33), one at each of the four
bearings, a grease gun, and 4 ounces of Alvania #2
grease are provided for this purpose.
Fig. 33
PL-41058-1
DRIVE CHAIN
GREASE FITTING
To Next Page
