HANG CURTAINS

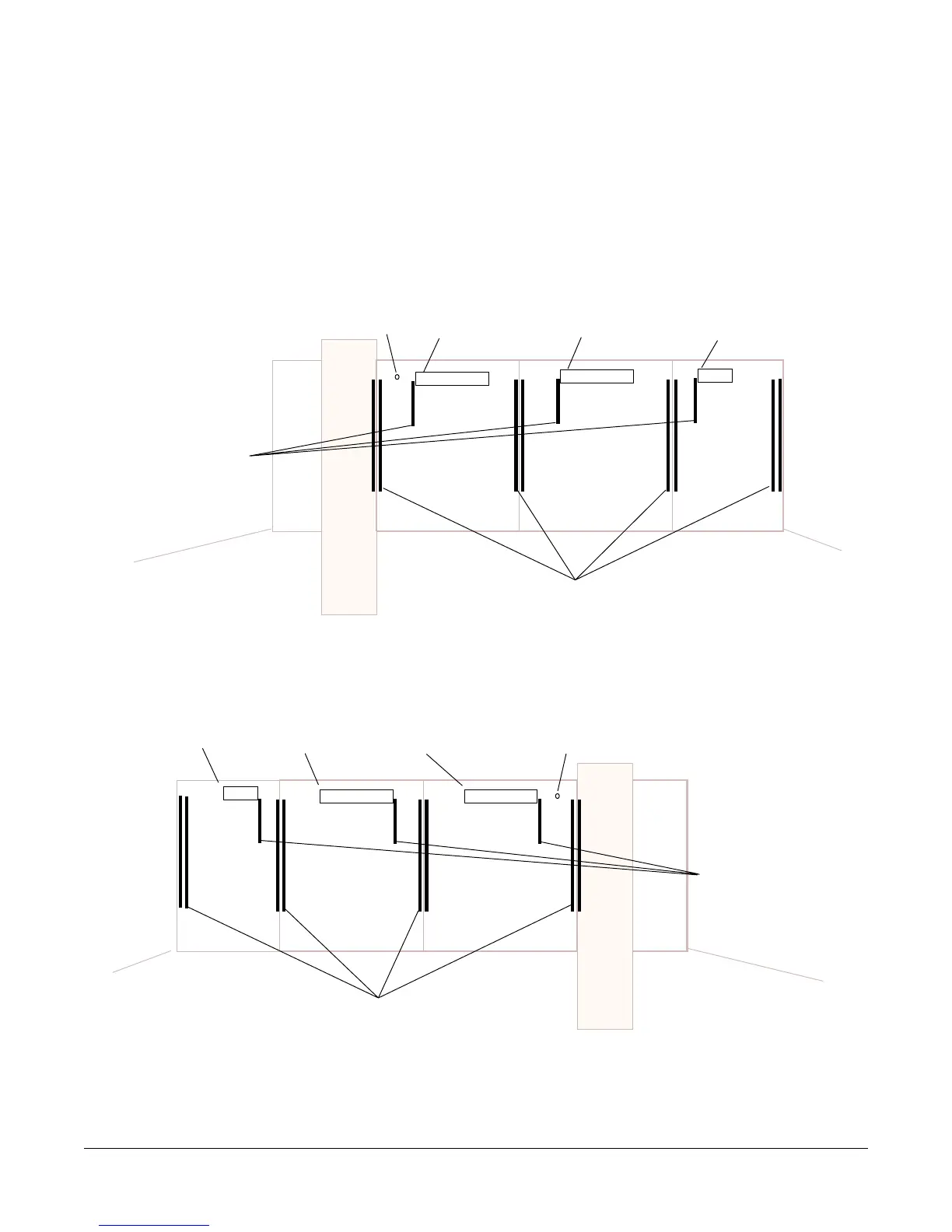

Curtains must be in their proper places (Fig. 30) . . .
A Short Curtain on the unload side of each upper Wash Arm,
Long Curtains on both sides of every section divider,
Two Long Curtains at the Load End.
Fig. 30
C
O
N
T
R
O
L
B
O
X
PREWASH ARM
o o
ooooo
ooooo
THREE SHORT CURTAINS
AT UNLOAD SIDE
OF UPPER ARMS
FOUR PAIRS OF LONG CURTAINS
AT SECTION DIVIDERS
LOAD
UNLOAD
WASH ARMPOWER RINSE ARM
FT900
R - L OPERATION WITH
8' CENTER SECTION
RINSE ARM
PREWASH ARM
THREE SHORT CURTAINS
AT UNLOAD SIDE
OF UPPER ARMS
FOUR PAIRS OF LONG CURTAINS
AT SECTION DIVIDERS
LOAD
WASH ARM
POWER RINSE ARM
FT900
L - R OPERATION WITH
8' CENTER SECTION
o o
ooooo
ooooo
C
O
N
T
R
O
L
UNLOAD
B
O
X
RINSE ARM
