MODEL H600/P660/L800 GENERAL
F12536 (Rev. A, December 2005)Page 7 of 88
MOTOR REMOVED TO SHOW GEARING
Planetary
WARNING: DISCONNECT THE
ELECTRICAL POWER TO THE
MACHINE AND FOLLOW LOCKOUT /
TAGOUT PROCEDURES.

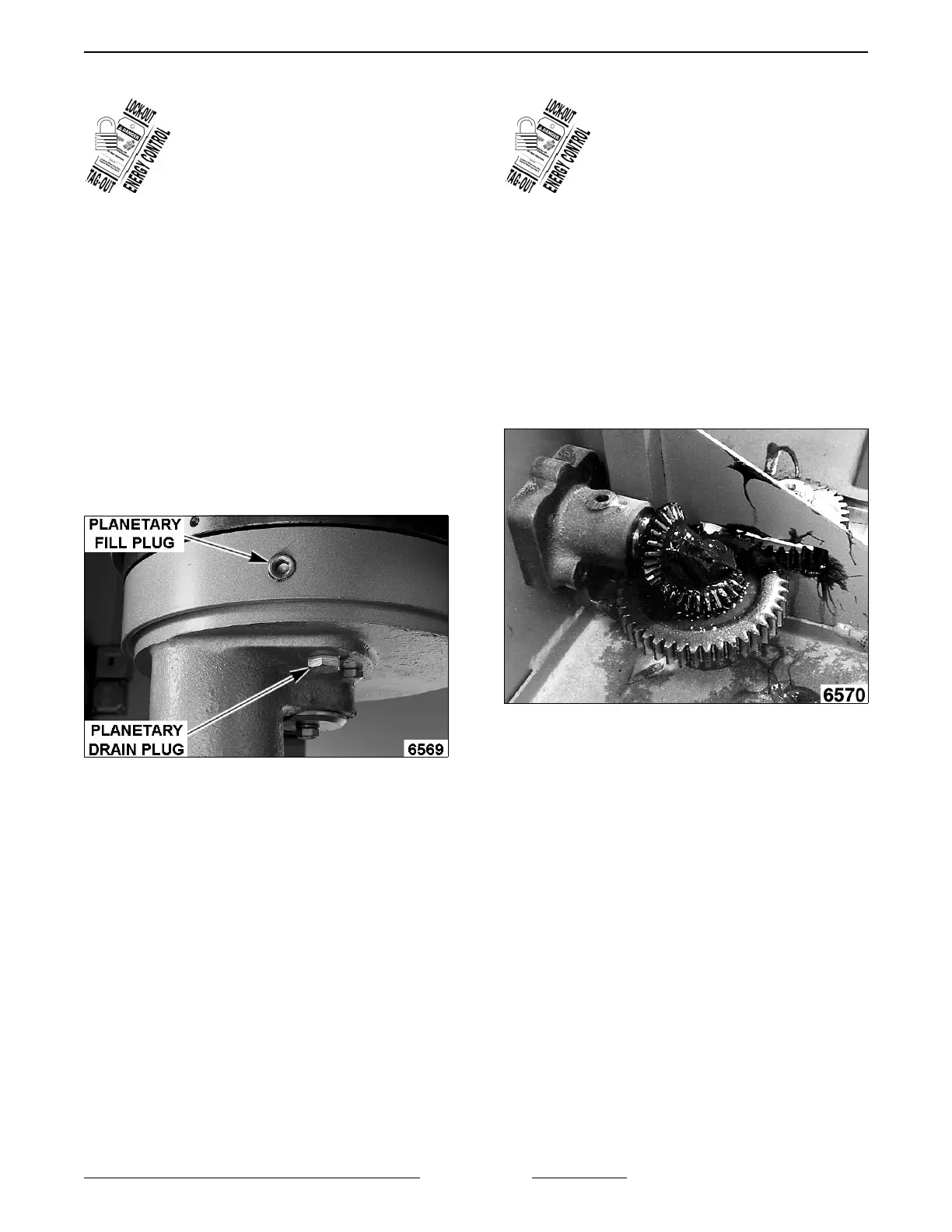

NOTE: On mixers manufactured with an oil pump,
the planetary has its own oil supply. Due to the
relatively small volume of oil (6 Fl. oz.), it is advisable
to change it more frequently than the transmission oil
depending on mixer usage.
1. Drain the oil.
A. Remove bowl guard assembly (drip cup on
mixers without bowl guard).
B. Rotate planetary until drain plug is
accessible.
C. Place a container under planetary to collect
used oil.
D. Remove planetary oil drain plug and drain
oil.
E. Replace drain plug.
2. Replacing oil.
A. Remove oil fill plug.
B. Pour 6 fl. oz. oil into the planetary through
fill hole (Exxon Spartan EP150).
NOTE: The oil level should be even with the bottom
of the fill hole.
C. Replace oil fill plug and bowl guard
assembly (or drip cup).
3. Check mixer for proper operation.
Manual Bowl Lift
WARNING: DISCONNECT THE
ELECTRICAL POWER TO THE
MACHINE AND FOLLOW LOCKOUT /
TAGOUT PROCEDURES.
1. Lubricate the bowl lift gearing.
NOTE: The manual bowl lift gearing is located inside
the pedestal below the mixer motor and should be
lubricated annually depending on usage. It is not
necessary to remove motor to lubricate or service
manual bowl lift.
A. Remove top cover.
B. Coat gearing (photo 6570) with the
recommended lubricant (CHEVRON FM
EP NLGI 2).
C. Replace top cover.
D. Check for proper operation.
2. Lubricate the bowl lift screw assembly.
NOTE: The bowl lift screw assembly should be
greased semi-annually or more often depending on
usage with the recommended lubricant.
A. Place bowl support in its lowest position.
B. Remove pedestal apron (thumbscrews)
(1, photo 6571).
