18.

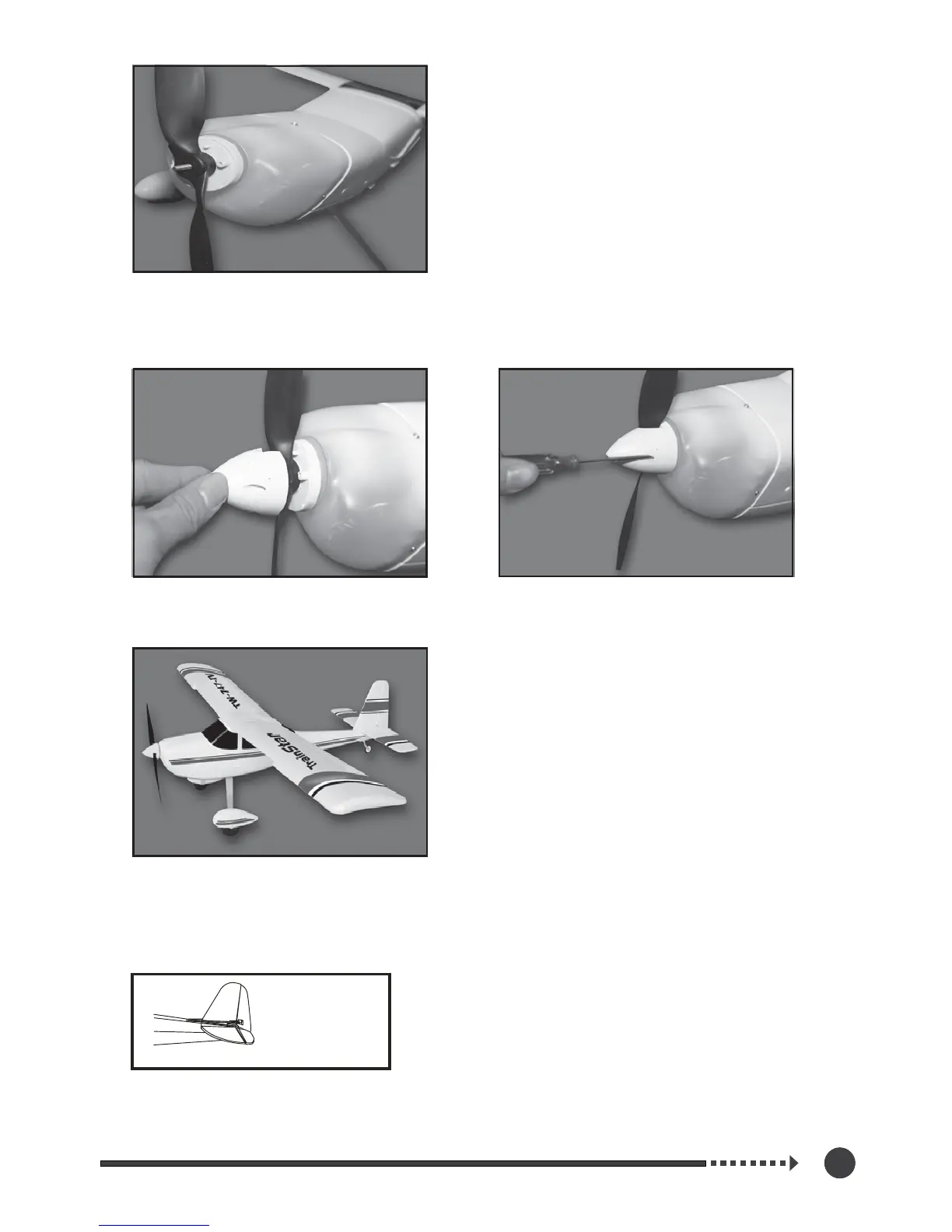

Insert the motor shaft to the propeller and make sure the concavity of
the propeller face toward the tail and fix it by washer and nut.
19. Install the spinner with two screw.
20. The plane full assembled as shown in the figure.
Adjust the Trim Settings
8
Tip: Use the trim sliders on the transmitter
to adjust the control surfaces. Make
sure they are the same level to avoid
erratic flight characteristics . If you
cannot get the surfaces level , adjust
the length of the clevis and re-attach
them to the servo horn.
