16
Trampoline Assembly - Righting Line

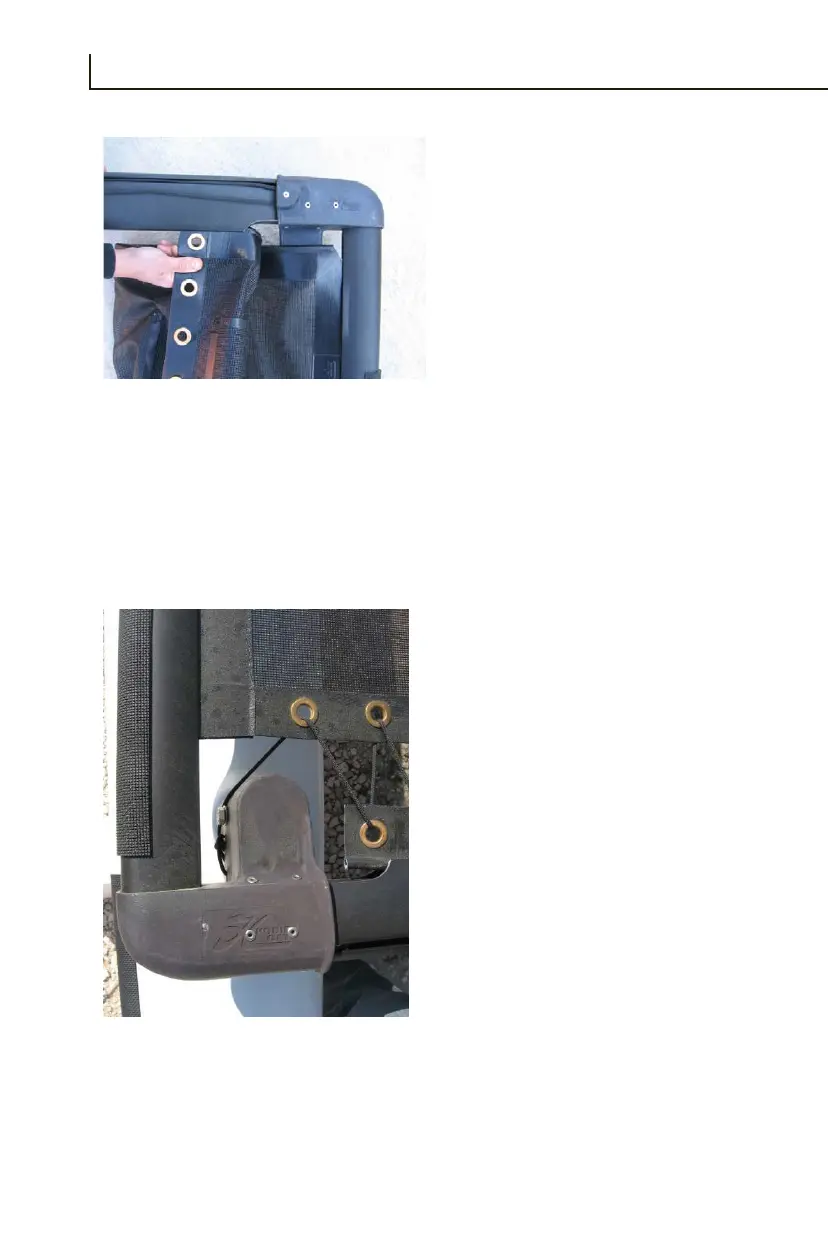

1. Insert trampoline half into
the flared sidebar track
so that the grommets are
running down the center and
across the back. Position
the forward edge even with
the forward crossbar. Insert
the forward edge of the
trampoline into the front
cross bar track adjacent to
the corner casting and slide
it all the way to the center.
Repeat this operation for the
opposite side. Install the aft
lacing strip by feeding the
larger bead into the track in
the aft crossbar. Make sure it
is centered. The hiking straps
should be on top.
2. Tie each aft lacing line to the
aft corner casting as follows:
Start with an 8 knot at one
end of the line which you will
block into the inferior hole of
the rear casting (behind the
crossbar fitting). Then, pass
the line through the grommet
on the side of the trampoline
(from underneath), then in
the rear trampoline strip
(from above). After 3 or 4
laces, temporarily tie it at
the aft end. Repeat the same
operation on the other side.
Make sure you pass the line
above the crossbar binding
nut to avoid friction during
sailing.
