Hobie 16 User Manual

18

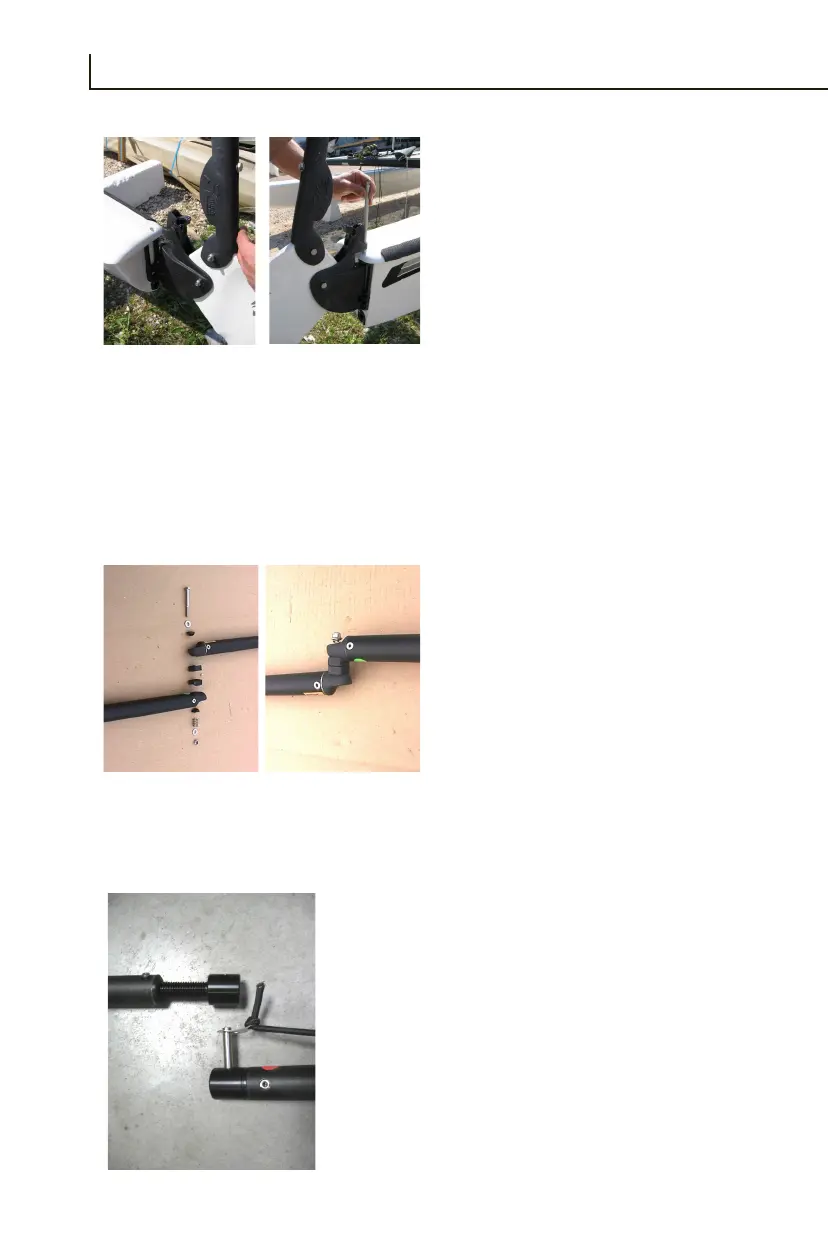

Rudder Assembly
1. Rudder head
Identify the right rudder as-
sembly and the left one. They
must not be reversed. Slip
the rudder pin down through
the casting and gudgeons.
Insert the split pin in the hole
of the rudder pin so that it
prevents it from falling down.
Do the same thing on the op-
posite side.
Make sure that the plastic
cam has the nose up as indi-
cated on the drawing.
2. Standard tiller crossbar
Attach the tiller crossbar (1)
to the Rudder arm (2). Pay
attention to the left and right
side. Insert the screw as
shown on the photo. Repeat
the same operation on the
opposite side.
2. Race tiller crossbar
1
2

Hobie 16 Specifications

General

Category	Catamaran
Length	16 ft 7 in (5.05 m)
Sail Area	218 sq ft (20.3 m2)
Hull Material	Fiberglass
Weight	320 lbs (145 kg)
Beam	2.41 meters (7.9 feet)
Mast Height	26 ft 6 in (8.07 m)
