20

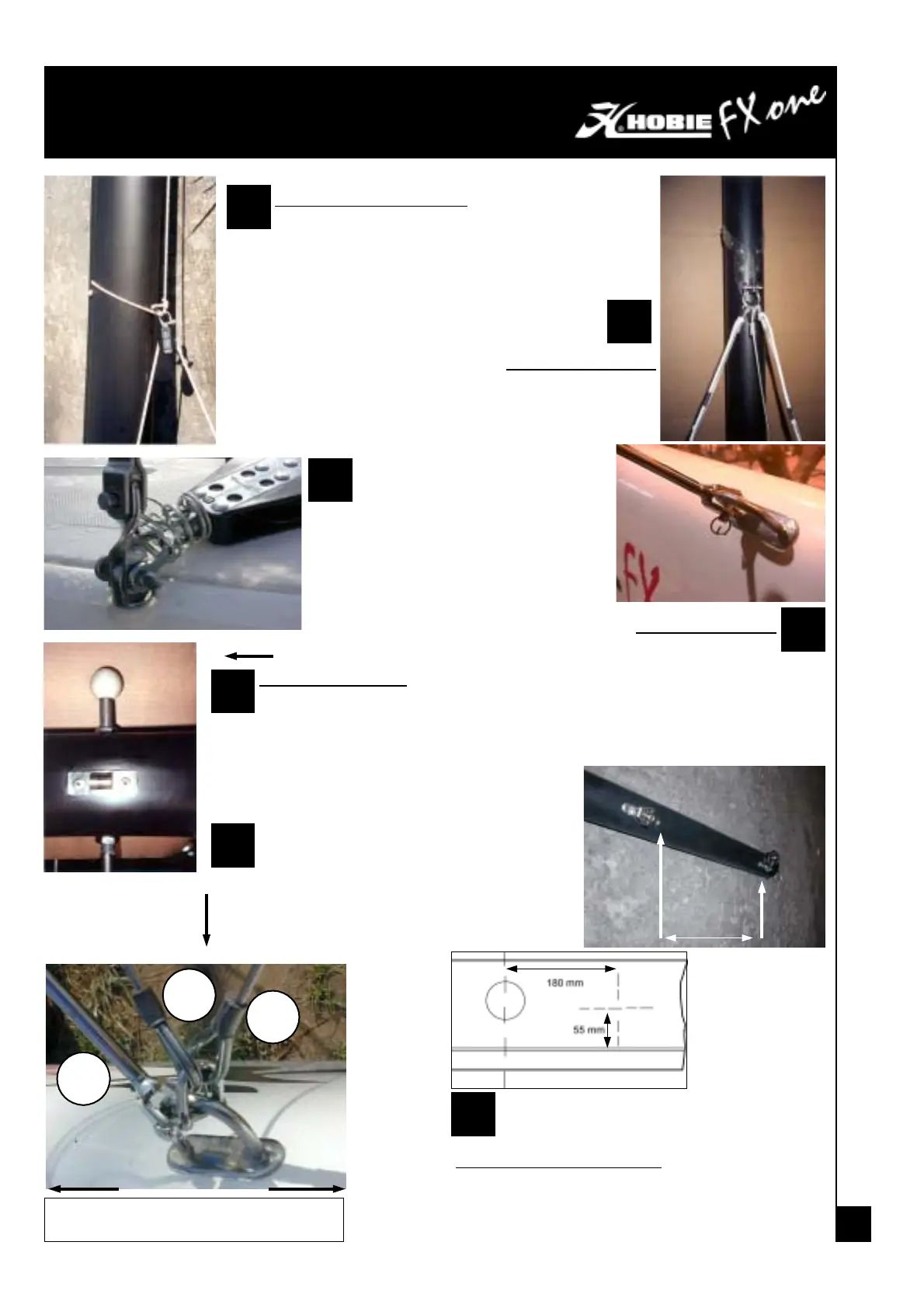

Attach the Spi halyard block
Shackle the spi halyard block through the small
bow shackle attached to the thin cord at the top
of your FX-One mast. Now pass the halyard through
the pulley and thread as per the photograph.
Mounting the spi pole
First drill and rivet to attach
the spi pole mount bracket on
the center front side of the front
cross beam. Attach the base of the
spi pole to the bracket.
Then attach the spi pole bridle and support
wires to the bow tang using the shackles pro-
vided. Once the mast is erect and the rig ten-
sioned, using the spi pole support line lift the pole
and tension till firm. Ensure that the main bridle
wires do not loosen at this stage.
Attaching the bridles
Having already removed
the standard forestay/bridles, attach the
new short bridles to the bow tang on the inside
bow of each hull. The other ends of the bridles
both attach to the 6 mm shackle which also
connect to the stay adjusters.
Kit de spinnaker standard (Option)
1
Mounting the forestay
Replace the standard forward forestay/bridles with the
one forestay at the mast tang fitting. The new forestay po-
sitions between the side shrouds.
4
Now attach the spinnaker ratchet
pulleys to the shroud base toge-
ther with the twist toggle (except
Tiger & Pacific, on the padeyes on the
hulls).
Once attaching all the stays correctly
as per the rigging manual and checking
that there are no over head power lines
raise the mast.
3
Mounting the spi halyard cleat
Drill and rivet to attach the swiveling cam cleat
to the top of the front crossbar on the right side
of the mast step. Location 180 mm right from
the mast step (see diagram).
7
5
300 mm
1
2
3
Rear Front
6
2
Inside right hull : 1. Jib furler bridle - 2. Pole support wire
- 3. Pole bridle.
