Hobie Mirage Compass Instruction Manual

2

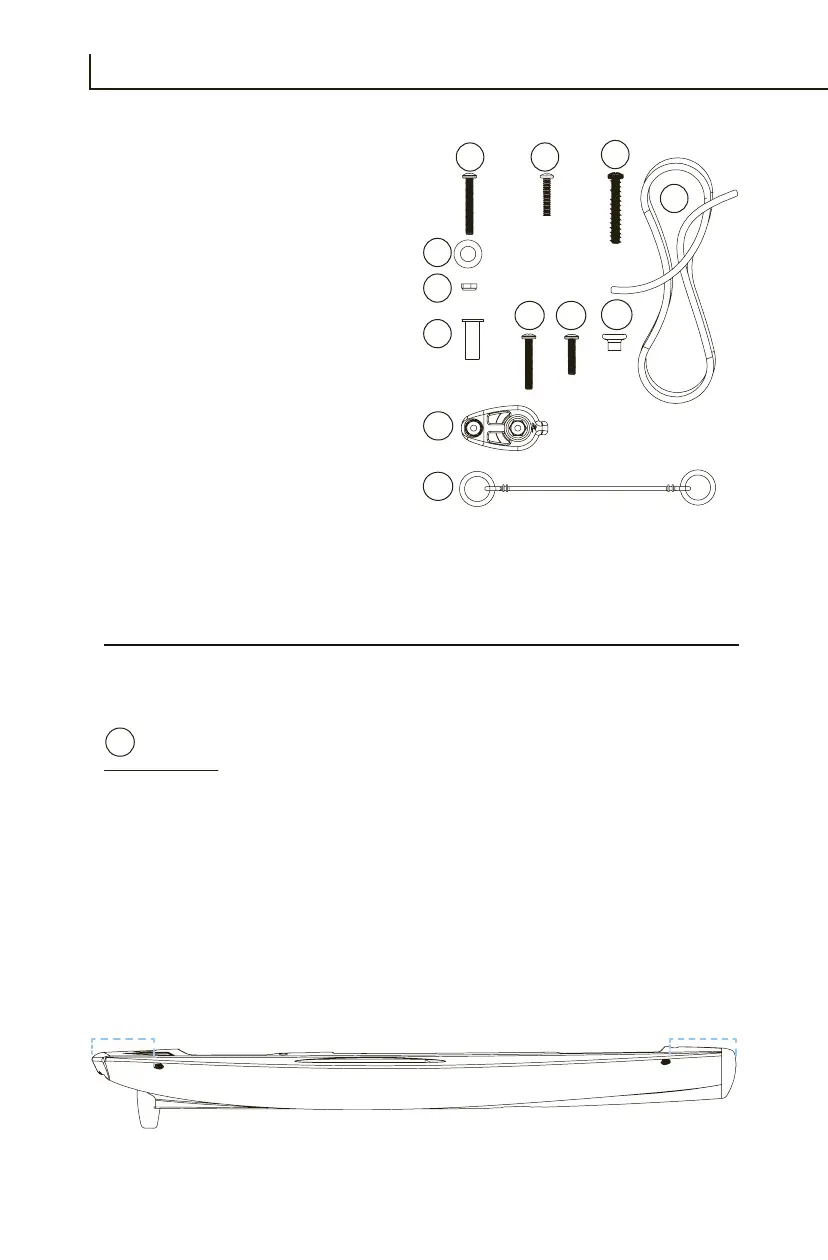

1. 3/16” Trolley Line
2. 2 X Screw, 10-32 X 1 1/2”
Pan
3. Screw, 10-32 X 1” Pan
4. 2 X Screw 10-32 X 1 3/4” Pan
5. 7 X Washer, #10 X 5/8”
6. Nut, #10 Nylock
7. 6 X Well Nut
8. 2 X Screw 10-32 X 1 1/4” Pan
9. Screw 10-32 X 1” Pan
10. 2 X Eyelet Post
11. 2 X Cheek Block
12. Shock cord with Ring Assembly
Kit Contents
Installation
This manual will show the anchor trolley kit being installed on the right–hand
side of the kayak, but it can be put on the left–hand side if preferred.
1
1
8
9
10
11
12
2 3
5
4
7
6
Your Mirage® Compass, Compass Duo or 2019+
Outback has limited in-hull access points. This version of
Hobie’s Anchor Trolley kit uses well nuts for mounting
the cheek block pulleys. Set the two cheek blocks
ap proximately 12” from the bow and stern. Mark your
drill locations and make 3/8” holes for the well nut
hardware that will hold each cheek block in place.
MAKE SURE THE PULLEYS ARE LOCATED ABOVE THE
WATER LINE.
12in.
12in.

Hobie Mirage Compass Specifications

General

Fitted Hull Weight	68 lbs / 31 kg
Capacity	400 lbs / 181 kg
Hull Construction	Rotomolded Polyethylene
Seat	Vantage CT
Length	12 ft / 3.66 m
Width	34 in / 0.86 m
Storage	Front Hatch, Rear Cargo Area
Vantage Seat Capacity	275 lbs / 125 kg
