Hobie Mirage Compass Instruction Manual

3
Installation
2

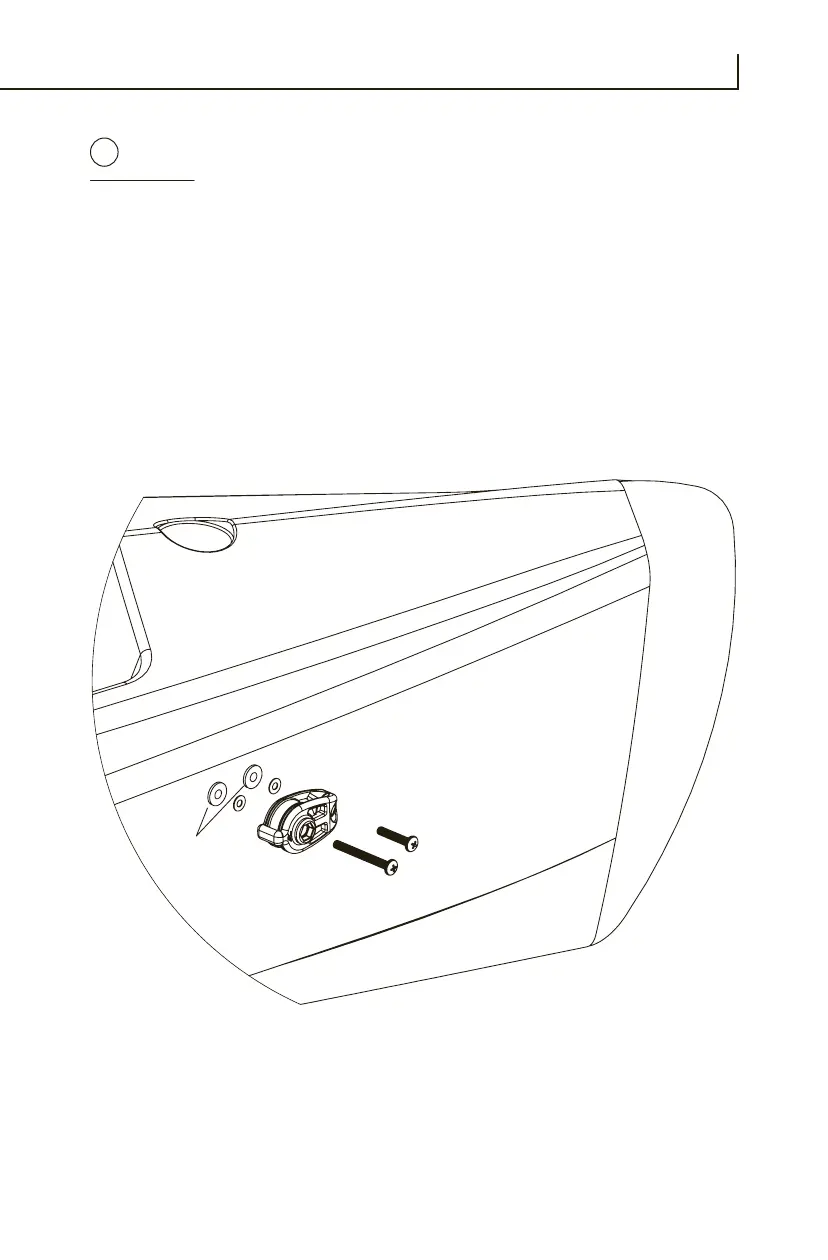

Once the holes are drilled, fasten each cheek block
to the bow and stern locations using the correct
well nut hardware assemblies. Turn the screw until
the well nut becomes firmly fastened. You can use a
drill set on a low clutch setting or hand tighten using
a Phillips screw driver. Severely overtightening can
cause damage to the well nut. The pulley side of the
cheek blocks should face inwards.
#10-32 X 1 3/4” Pan
#10-32 X 1 1/4” Pan
Wellnuts

Hobie Mirage Compass Specifications

General

Fitted Hull Weight	68 lbs / 31 kg
Capacity	400 lbs / 181 kg
Hull Construction	Rotomolded Polyethylene
Seat	Vantage CT
Length	12 ft / 3.66 m
Width	34 in / 0.86 m
Storage	Front Hatch, Rear Cargo Area
Vantage Seat Capacity	275 lbs / 125 kg
