Hofmann Megaplan MS400-2 - Air Spring Replacement Guide

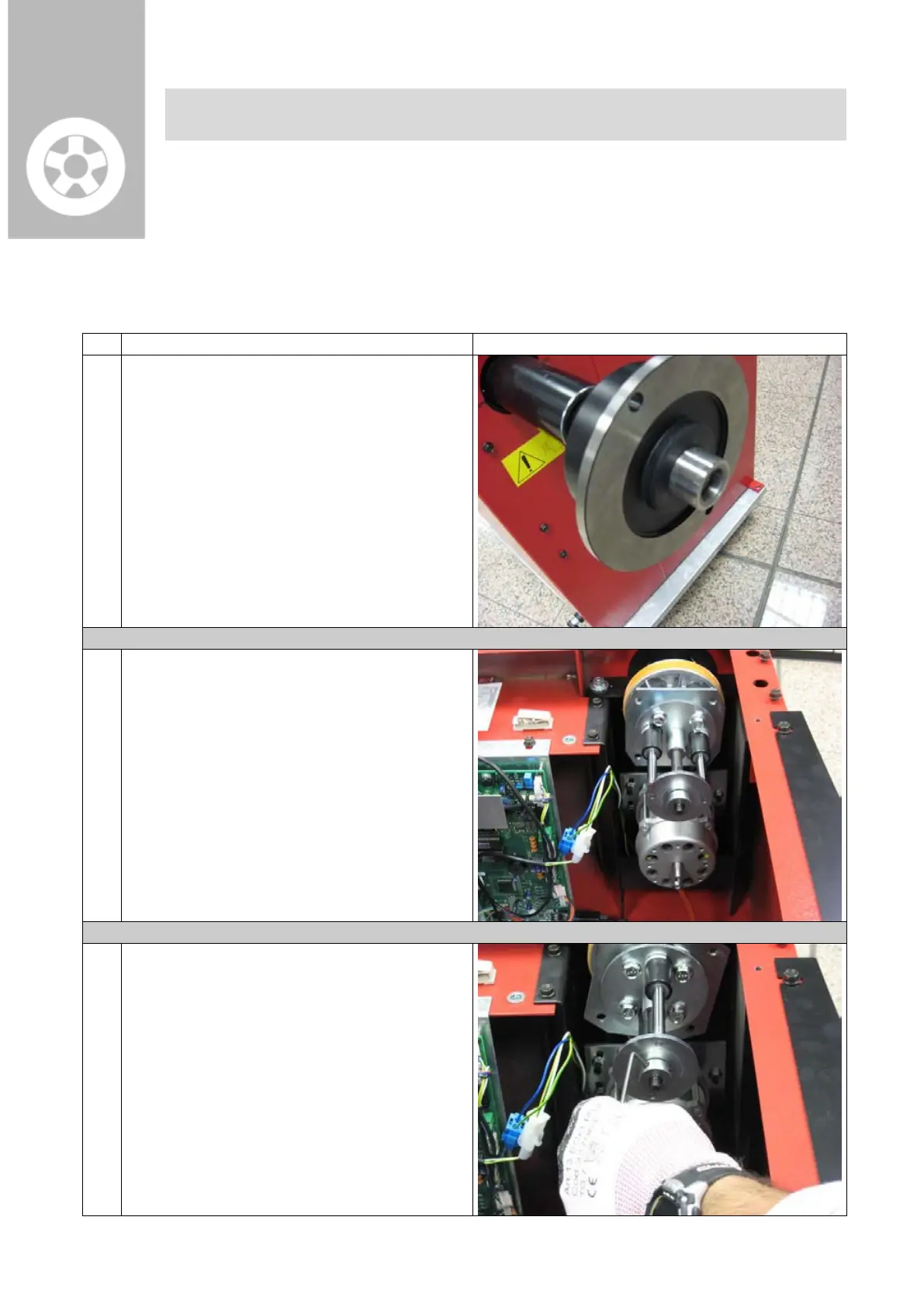

AIR SPRING REPLACEMENT
Model:
M400-2(C) - M400P-2(C) - M400P-2(D)
No.
Description
1
Remove the weight tray
(see relative instructions)
Remove the encoder
(see relative instructions)
Remove the SE terminal
(see relative instructions)
2
Remove the gauge unit and the cylinder unit
(see relative instructions)
3
Remove the 2 grub screws that fasten the external
ring nut
SHEET 027
