BA / ETL duolift MTE 3000 – 94 12 554
13

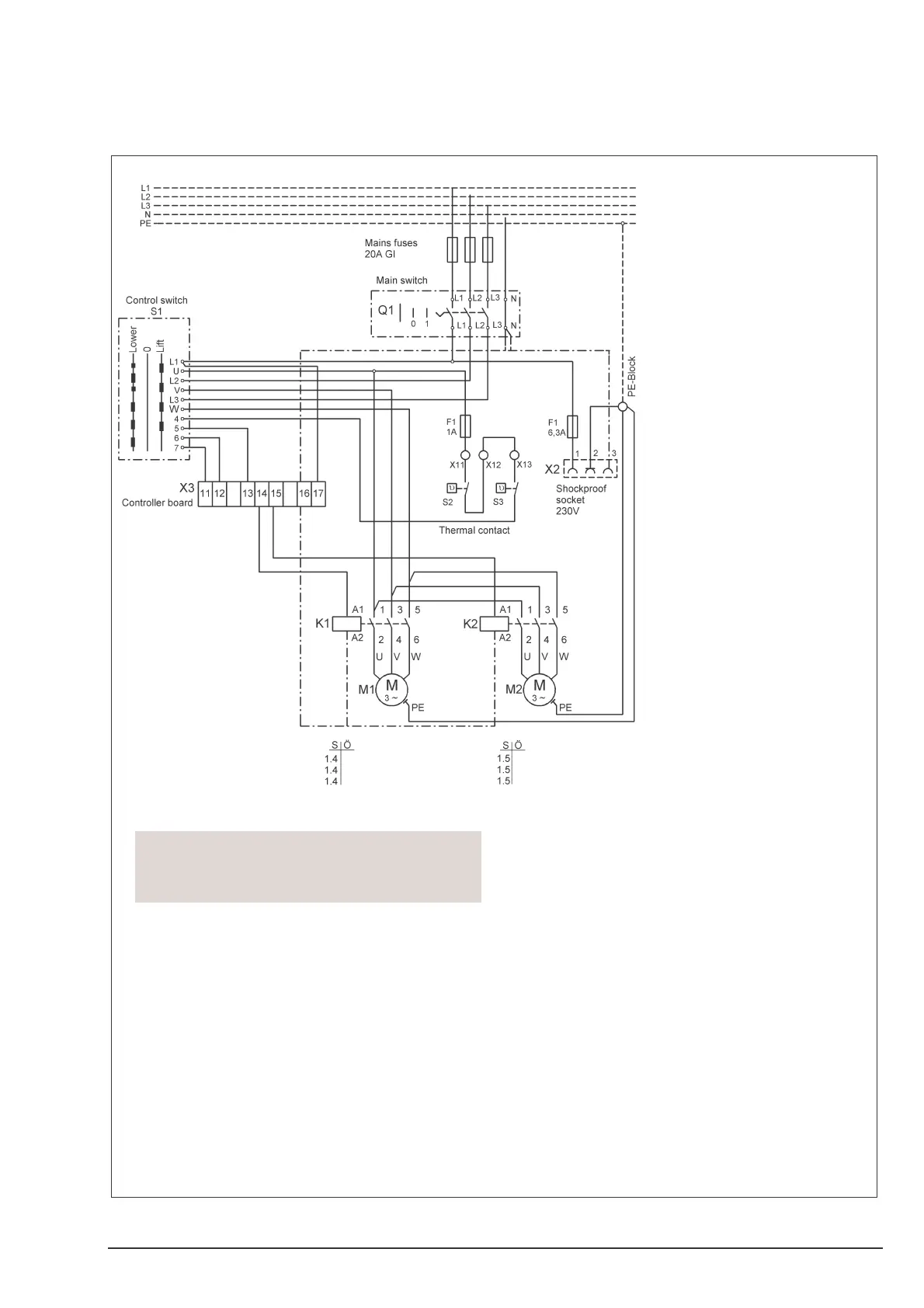

Fig. 8 Electrical diagram
Caution
All electrical connections must be undertaken by
a qualified electrician in accordance with local
regulations!
Having made the electrical connections, check for
correct motor rotation. When the operating switch
(main switch at position 1) is set to LIFT, the car-
riage must move upwards!
When attaching the power cord (stationary (NYN-
J 5x1) or movable (H07RH-F5G1,5), do not bolt
or screw fixtures into back of column. Fixings
must not protrude into the column.
Lifts used in wet rooms or where there is a seri-
ous fire hazard must be connected in accordance
with the relevant section of the IEE Wiring Regu-
lations.
Q1: Main switch
S1: Control switch
K1: Contactor
F1: Fine-wire fuse 1A
F2: Fine-wire fuse 6.3 A
X1: Terminal strip
X2: Shockproof socket
Empty enclosure
---- = to be connected by customer
